5536W datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > 5536W

Preview

5536W: DescriptionMAX-LOC Strain Relief Cord-Sealing Grip, 3/4" NPT, Straight Female with O-Ring, Cable Diameter; File Size129KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Compare View All

5536W Overview

MAX-LOC Strain Relief Cord-Sealing Grip, 3/4" NPT, Straight Female with O-Ring, Cable Diameter

Preview

Download Datasheet

View All

This document was generated on 05/18/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA

Part Number:

Status:

Overview:

Description:

1300980099

Active

brad_wire_mesh_grips

MAX-LOC® Strain Relief Cord-Sealing Grip, 3/4" NPT, Straight Female with O-Ring,

Cable Diameter 11.10-12.70mm (.437-.500")

Documents:

Drawing (PDF)

RoHS Certificate of Compliance (PDF)

Agency Certification

CSA

LR32159

E76954

General

Product Family

Series

Eye Type

Insulated

NEMA Rating

O-Ring

Overview

Product Name

Type

Use With

Woodhead

Cable Grips

130098

N/A

NEMA 6

Yes

brad_wire_mesh_grips

MAX-LOC®

Strain Relief Grips

1300990144 3/4" NPT MAX-LOC® Lock Nut,

130180333 MAX-LOC® O-Ring

Yes

EU RoHS

ELV and

Complia

REACH S

Not Revi

Halogen

Status

Not Revi

Need mo

environm

Email pro

For a mu

Complian

Physical

Approximate Break Strength

Bale Length

Body Style

Cable Diameter

Color - Grommet

Gender

Material - Body

Material - Grip

Mesh Length

Number of Holes

Strain Relief Force

Thread Size

N/A

Straight

11.10-12.70mm (.437-.500")

Black

Female

Nylon

N/A

35 lbs

3/4" NPT

Please vi

non-prod

130098

Material Info

Old Part Number

5536W

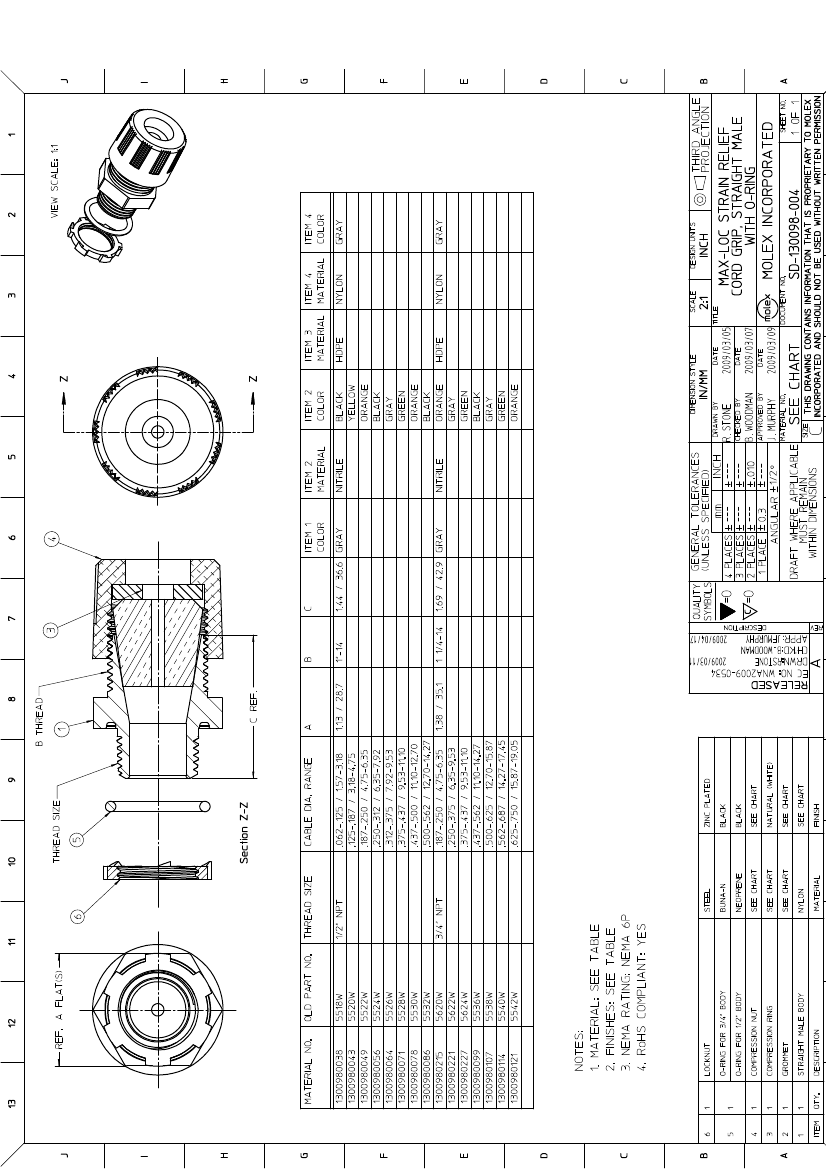

Reference - Drawing Numbers

Sales Drawing

SD-130098-004

This document was generated on 05/18/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA
