5569-03A3S: Description4.20mm (.165") Pitch Mini-Fit Jr. Header, Single Row, Right Angle, with PCB Mounting Flanges, 3 Circuits; File Size244KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet View All

5569-03A3S Overview

4.20mm (.165") Pitch Mini-Fit Jr. Header, Single Row, Right Angle, with PCB Mounting Flanges, 3 Circuits

Preview

Download Datasheet

View All

This document was generated on 05/21/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA

Part Number:

Status:

Overview:

Description:

0039306039

Active

minifit_jr

4.20mm (.165") Pitch Mini-Fit Jr.™ Header, Single Row, Right Angle, with PCB

Mounting Flanges, 3 Circuits, PA Polyamide Nylon 6/6, 94V-2, Tin (Sn) Over Nickel (Ni)

Plating

Documents:

3D Model

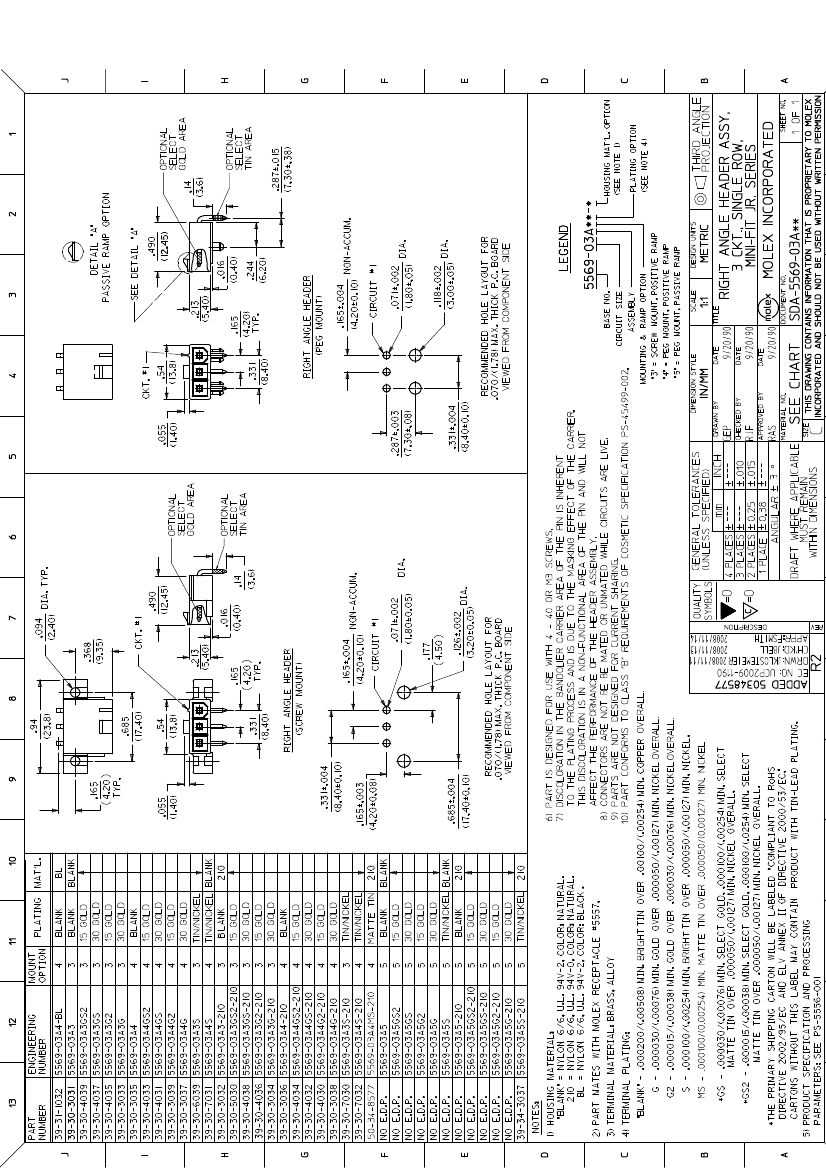

Drawing (PDF)

Product Specification PS-5556-001 (PDF)

RoHS Certificate of Compliance (PDF)

Agency Certification

CSA

TUV

LR19980

R72081037

E29179

General

Product Family

Series

Application

Comments

PCB Headers

5569

Wire-to-Board

Current = 13A max. per circuit when header is mated

to a receptacle loaded with 45750 Mini-Fit Plus HCS™

Crimp Terminal Crimpted to to 16 AWG wire. . See

Molex Product specification PS-5556-001 for additional

current de-rating information.

minifit_jr

Mini-Fit Jr.™

EU RoHS

ELV and

Complia

REACH S

Contains

Halogen

Status

Halogen

Need mo

environm

Overview

Product Name

Email pro

For a mu

Complian

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Circuits Detail

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Natural

94V-2

None

Yes

Brass

Tin

Nylon

Right Angle

Yes

0.070 In

1.78 mm

Bag

0.165 In

4.20 mm

0.165 In

4.20 mm

Please vi

non-prod

5569Se

Mates

39-01-4
