5569-02A2S

Description
2 CONTACT(S), MALE, POWER CONNECTOR, SOLDER
CategoryThe connector
File Size269KB,9 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric View All

5569-02A2S Overview

2 CONTACT(S), MALE, POWER CONNECTOR, SOLDER

5569-02A2S Parametric

Parameter NameAttribute value
Contact materialsBRASS
Total number of contacts2
Lead-freeYes
EU RoHS regulationsYes
stateACTIVE
OptionsGENERAL PURPOSE
Manufacturer Series5569
Contact surface matchingGOLD (30) OVER NICKEL
Contact coated terminalsGOLD (30) OVER NICKEL
Connection TypePOWER CONNECTOR
Connector male and femaleMALE
collocation informationMULTIPLE MATING PARTS AVAILABLE
Installation typeBOARD
Shell materialPOLYAMIDE66
Terminal typeSOLDER
UL flammability code94V-0
This document was generated on 05/21/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA
Part Number:
Status:
Overview:
Description:
0039301022
Active
minifit_jr
4.20mm (.165") Pitch Mini-Fit Jr.™ Header, Dual Row, Right Angle, with Snap-in Plastic
Peg PCB Lock, 2 Circuits, PA Polyamide Nylon 6/6 94V-0, 0.76µm (30µ") Gold (Au)
Plating
Documents:
3D Model

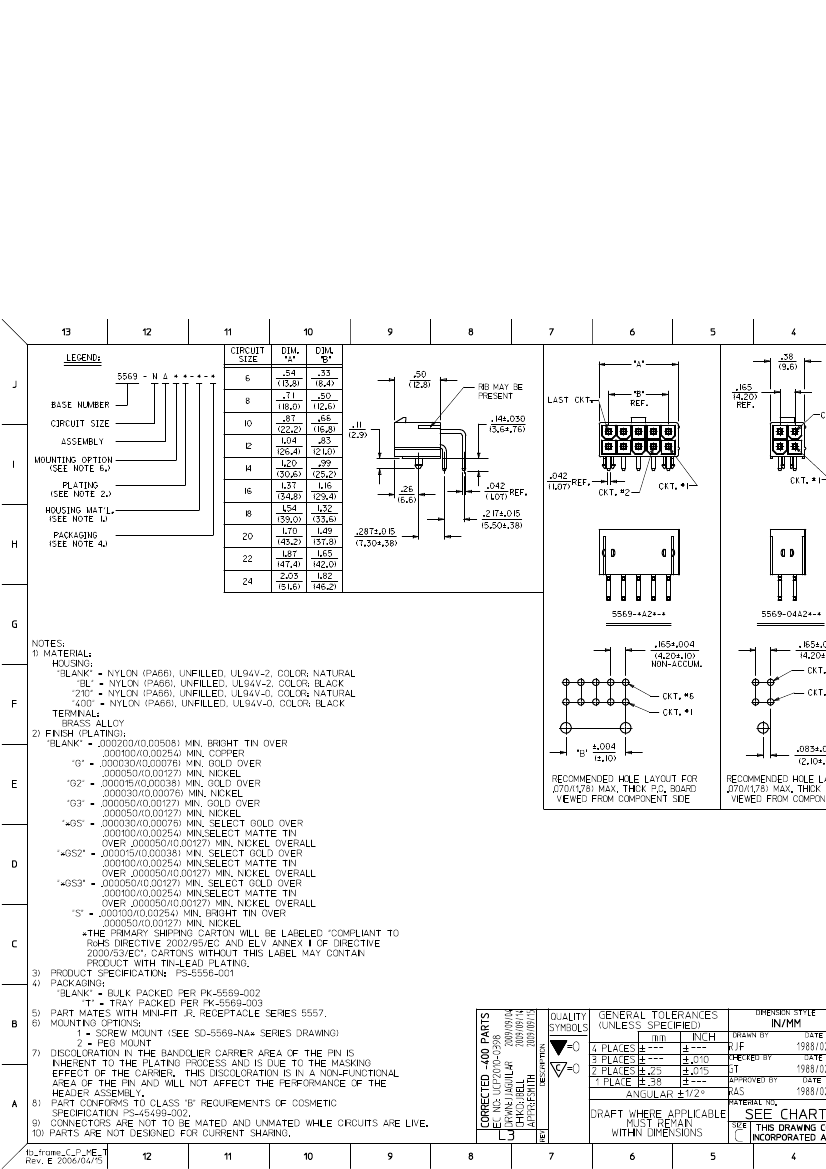

Drawing (PDF)
Product Specification PS-5556-001 (PDF)
RoHS Certificate of Compliance (PDF)
Agency Certification
CSA
TUV
UL
LR19980
R72081037
E29179
General
Product Family
Series
Application
Comments
PCB Headers
5569
Wire-to-Board
Current = 13A max. per circuit when header is mated
to a receptacle loaded with 45750 Mini-Fit Plus HCS™
Crimp Terminal Crimpted to to 16 AWG wire. . See
Molex Product specification PS-5556-001 for additional
current de-rating information.
minifit_jr
Mini-Fit Jr.™
EU RoHS
ELV and
Complia
REACH S
Not Revie
Halogen
Status
Halogen
Need mo
environm
Overview
Product Name
Email pro
For a mu
Complian
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Circuits Detail
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Flammability
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
No
2
2
2
Natural
30
No
94V-0
No
No
None
Yes
Brass
Gold
Gold
Nylon
2
Right Angle
Yes
Yes
0.070 In
1.78 mm
Bag
0.165 In
4.20 mm
0.165 In
4.20 mm
Please vi
non-prod
