Part Number

Search

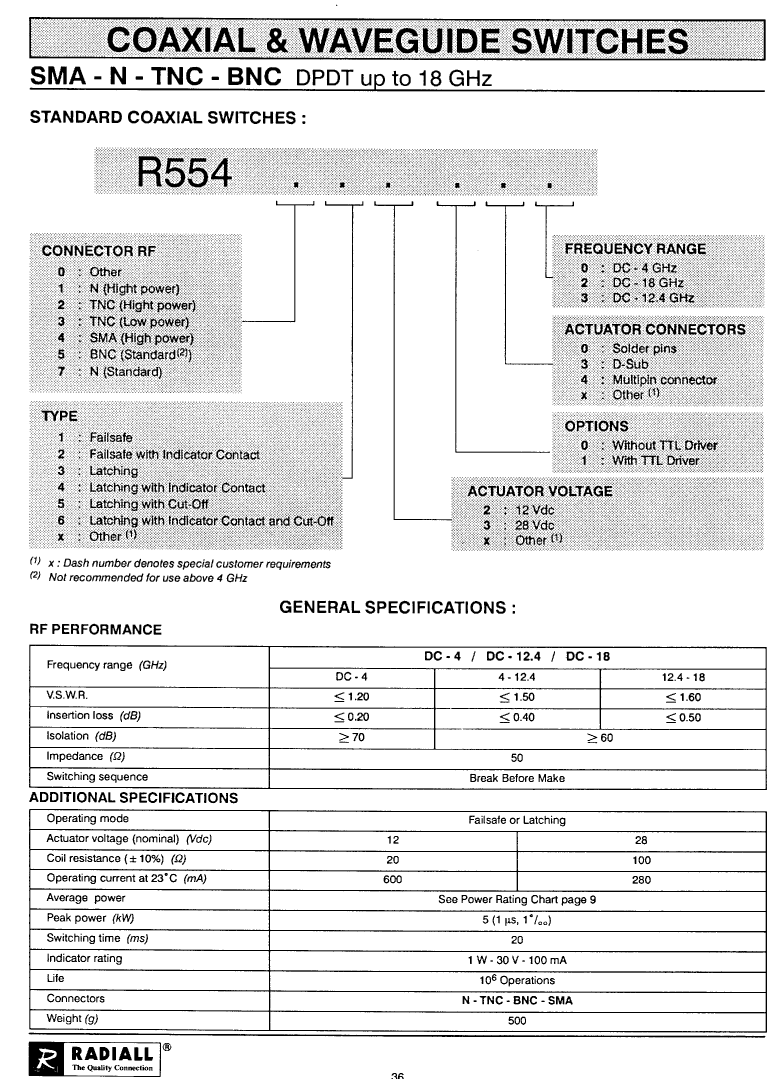

R554242143

Description
RF Coaxial Relay, DPDT, Latched, 0.6A (Coil), 12VDC (Coil), 7200mW (Coil), 12400MHz, DC Input, DC Output, Panel Mount
CategoryMechanical and electronic products    relay
File Size210KB,2 Pages
ManufacturerRadiall
Websitehttps://www.radiall.com/
Download Datasheet Parametric View All

R554242143 Overview

RF Coaxial Relay, DPDT, Latched, 0.6A (Coil), 12VDC (Coil), 7200mW (Coil), 12400MHz, DC Input, DC Output, Panel Mount

R554242143 Parametric

Parameter NameAttribute value
Reach Compliance Codeunknow
ECCN codeEAR99
Other featuresTNC, BUILT-IN TTL DRIVER AND INDICATOR
body width48.3 mm
body height55.4 mm
Body length or diameter48.3 mm
Characteristic impedance50 Ω
Maximum coil current (DC)0.6 A
Coil power7200 mW
Coil resistance20 Ω
Maximum coil voltage (DC)12 V
Coil/Input Power TypeDC
Contact/Output Power TypeDC
Electrical life1000000 Cycle(s)
Maximum insertion loss0.4 dB
Maximum isolation60 dB
Manufacturer's serial numberR554
Installation featuresPANEL MOUNT
Maximum operating frequency12400 MHz
Minimum operating frequency

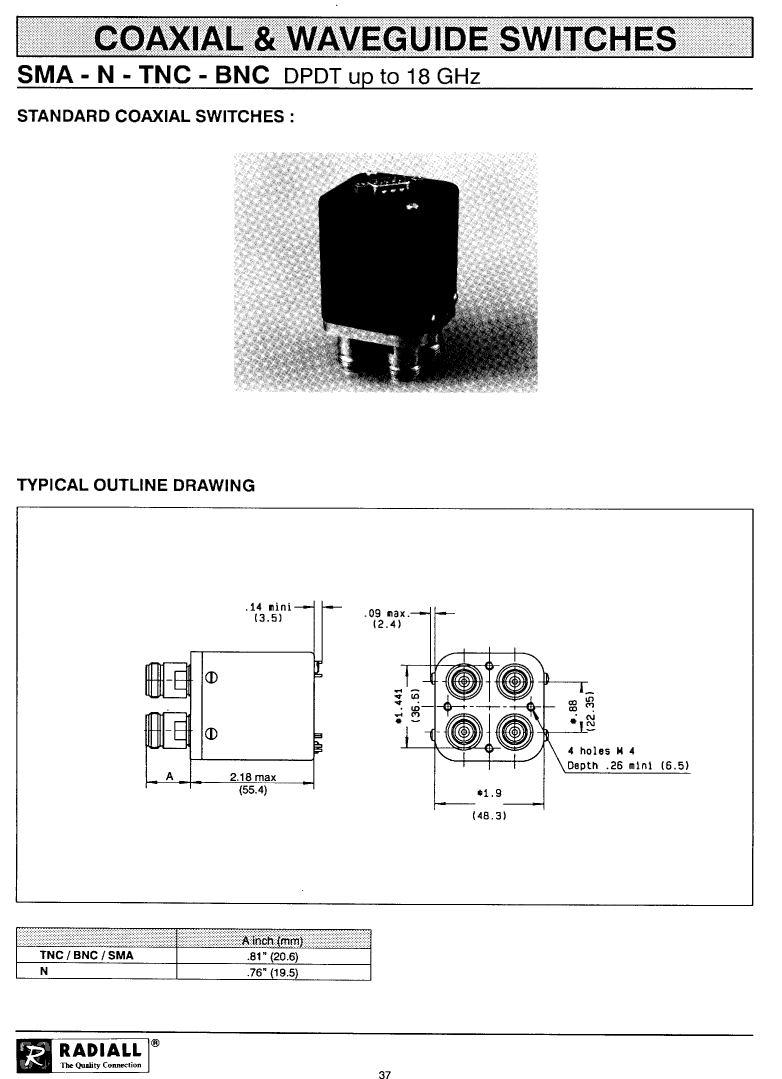

physical size48.3mm X 48.3mm X 55.4mm
Relay actionLATCHED
Relay functionDPDT
Relay typeRF COAXIAL RELAY
surface mountNO
switching time20 ms
Termination typeCONNECTOR
voltage standing wave ratio1.5
Base Number Matches1
