Part Number:
Status:
Overview:
Description:
0836149014
Active
commercial_microd
1.27mm (.050") Pitch Commercial Micro-D, PCB Mount, Right Angle Plug, without
Jackposts, 25 Circuits
Documents:
3D Model
Drawing (PDF)
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Application
Comments
Component Type
Overview
Product Literature Order No
Product Name
Type
I/O Connectors
83614
Wire-to-Board
83041-0005 Jackposts can be purchased separately
Plug
commercial_microd
USA-063
Commercial Micro-D
N/A
Physical
Boot Color
Circuits (Loaded)
Circuits (maximum)
Durability (mating cycles max)
Gender
Lock to Mating Part
Material - Plating Mating
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Polarized to Mating Part
Polarized to PCB
Ports
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
Waterproof / Dustproof
Wire Size AWG
N/A
25
25
500
Plug
None
Gold
2
Right Angle
0.110 In
2.79 mm
Yes
Yes
0.060 In
1.52 mm
Tube
Yes
0.050 In
1.27 mm
0.050 In
1.27 mm
15
0.38
Yes
Yes
1
No
-40°C to +125°C
Through Hole
No
N/A
EU RoHS
ELV and
Complia
REACH S
Not Revie
Halogen
Status
Not Revi
Need mo
environm
Email pro
For a mu
Complian
Please vi
non-prod
Search
83614S
Mates
83424
Electrical
Current - Maximum per Contact
1A
Shield Type
Shielded
Voltage - Maximum
Full Shield
Yes
350V AC
Material Info
Reference - Drawing Numbers

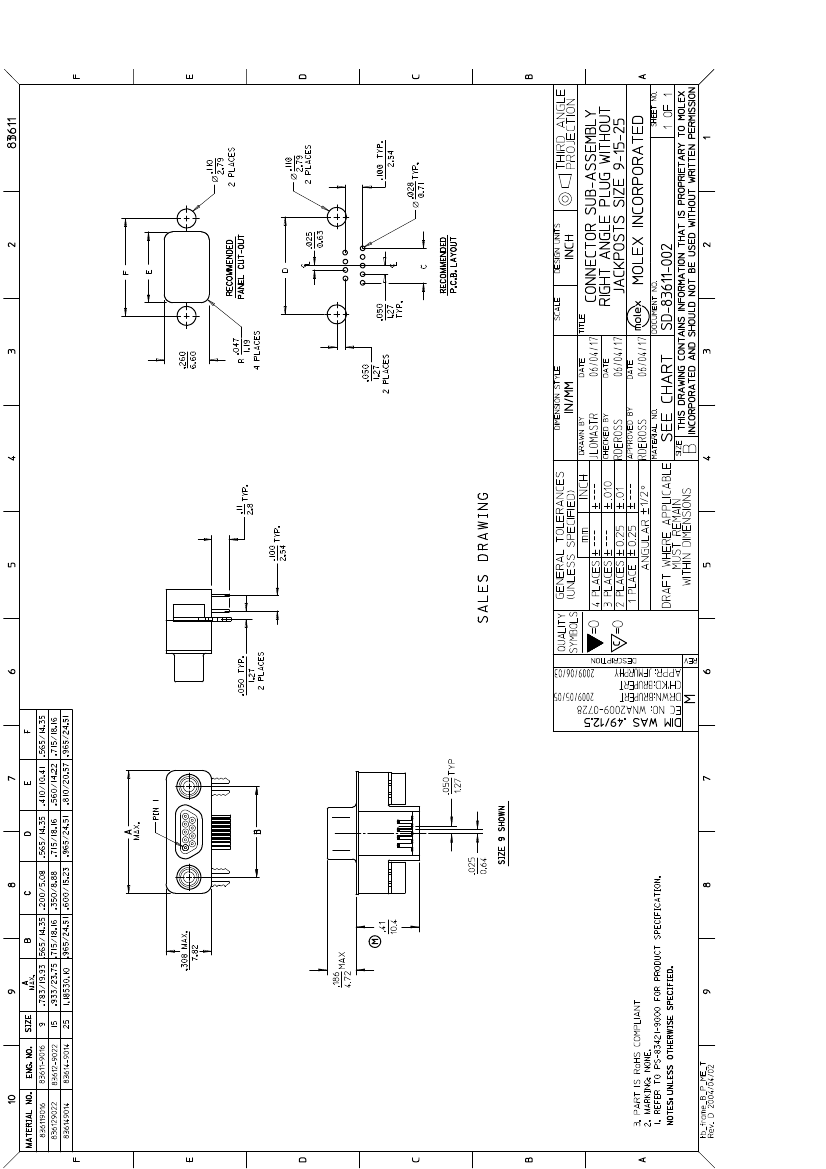

Sales Drawing
SD-83611-002
