BB404B datasheet, PDF - EEWORLD Datasheet

BB404B: DescriptionVariable Capacitance Diode, 44pF C(T), Silicon; CategoryDiscrete semiconductor diode; File Size29KB，2 Pages; ManufacturerTDK Corporation; Websitehttp://www.tdk.com

Download Datasheet Parametric Compare View All

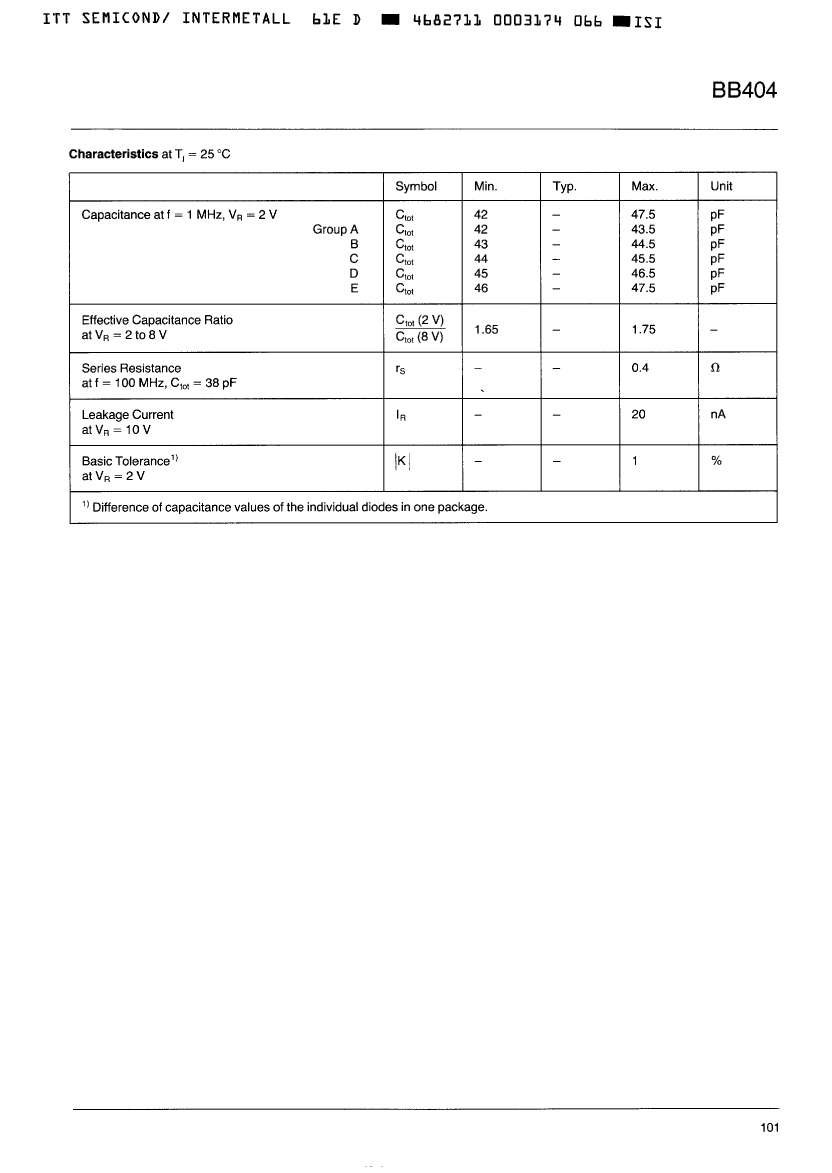

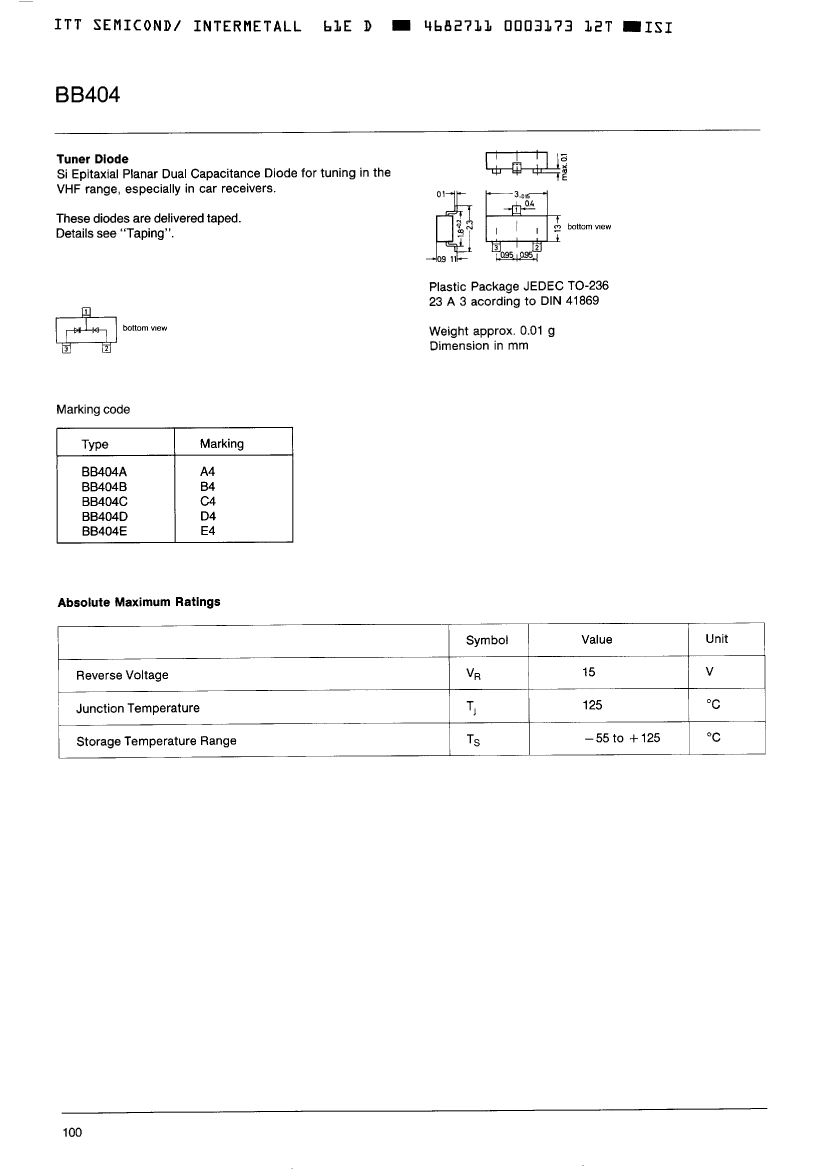

BB404B Overview

Variable Capacitance Diode, 44pF C(T), Silicon

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	TDK Corporation
package instruction	R-PDSO-G3
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	DELIVERED IN MATCHED SETS
Configuration	SINGLE
Minimum diode capacitance ratio	1.65
Nominal diode capacitance	44 pF
Diode component materials	SILICON
Diode type	VARIABLE CAPACITANCE DIODE
JESD-30 code	R-PDSO-G3
JESD-609 code	e0
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	15 V
Maximum reverse current	2e-8 µA
Reverse test voltage	10 V
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

	BB404B	BB404A	BB404C
Description	Variable Capacitance Diode, 44pF C(T), Silicon	Variable Capacitance Diode, 43pF C(T), Silicon	Variable Capacitance Diode, 45pF C(T), Silicon
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	TDK Corporation	TDK Corporation	TDK Corporation
package instruction	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Other features	DELIVERED IN MATCHED SETS	DELIVERED IN MATCHED SETS	DELIVERED IN MATCHED SETS
Configuration	SINGLE	COMMON CATHODE, 2 ELEMENTS	SINGLE
Minimum diode capacitance ratio	1.65	1.65	1.65
Nominal diode capacitance	44 pF	43 pF	45 pF
Diode component materials	SILICON	SILICON	SILICON
Diode type	VARIABLE CAPACITANCE DIODE	VARIABLE CAPACITANCE DIODE	VARIABLE CAPACITANCE DIODE
JESD-30 code	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
JESD-609 code	e0	e0	e0
Number of components	1	2	1
Number of terminals	3	3	3
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	15 V	15 V	15 V
Maximum reverse current	2e-8 µA	0.02 µA	2e-8 µA
Reverse test voltage	10 V	10 V	10 V
surface mount	YES	YES	YES
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
