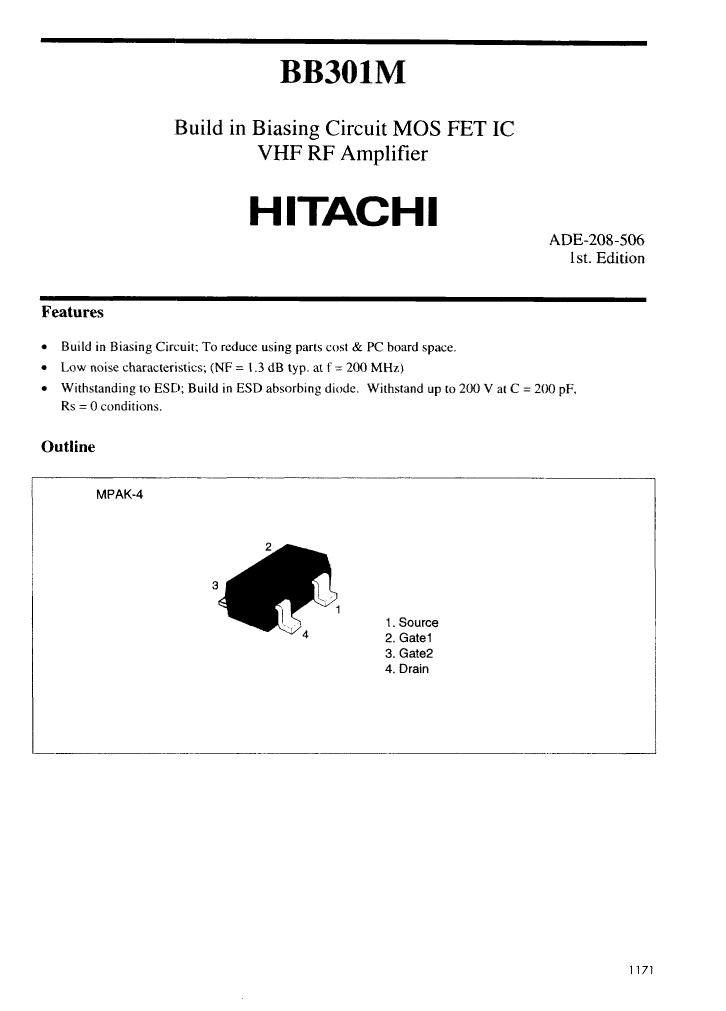

BB301MAW-UL: DescriptionVHF BAND, Si, N-CHANNEL, RF SMALL SIGNAL, MOSFET, MPAK-4; CategoryDiscrete semiconductor The transistor; File Size209KB，8 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

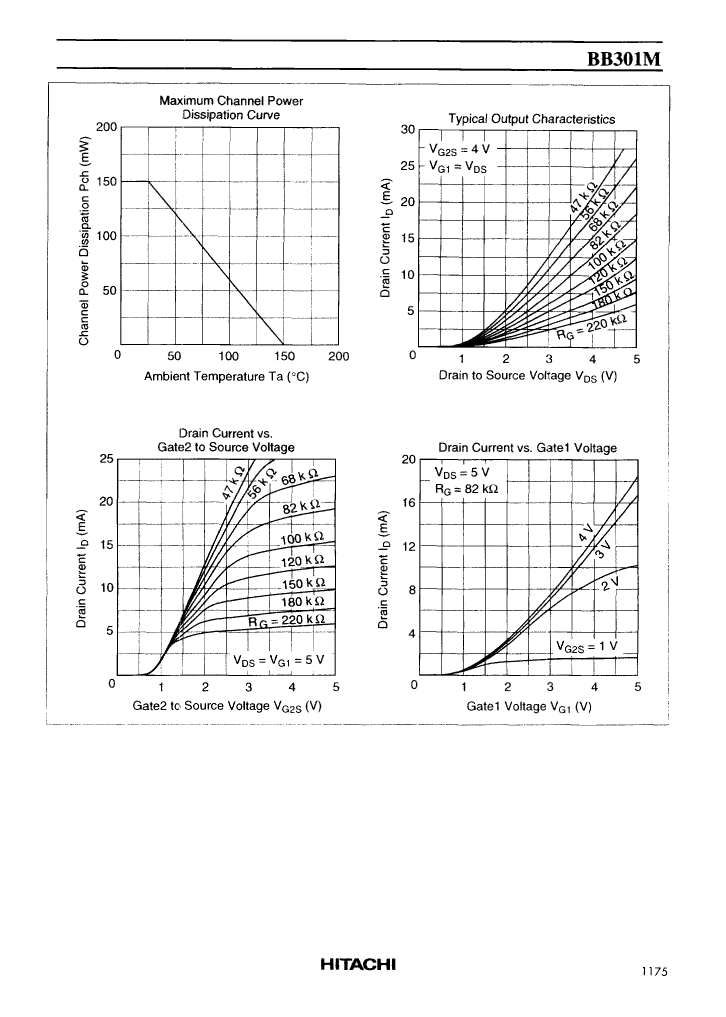

BB301MAW-UL Overview

VHF BAND, Si, N-CHANNEL, RF SMALL SIGNAL, MOSFET, MPAK-4

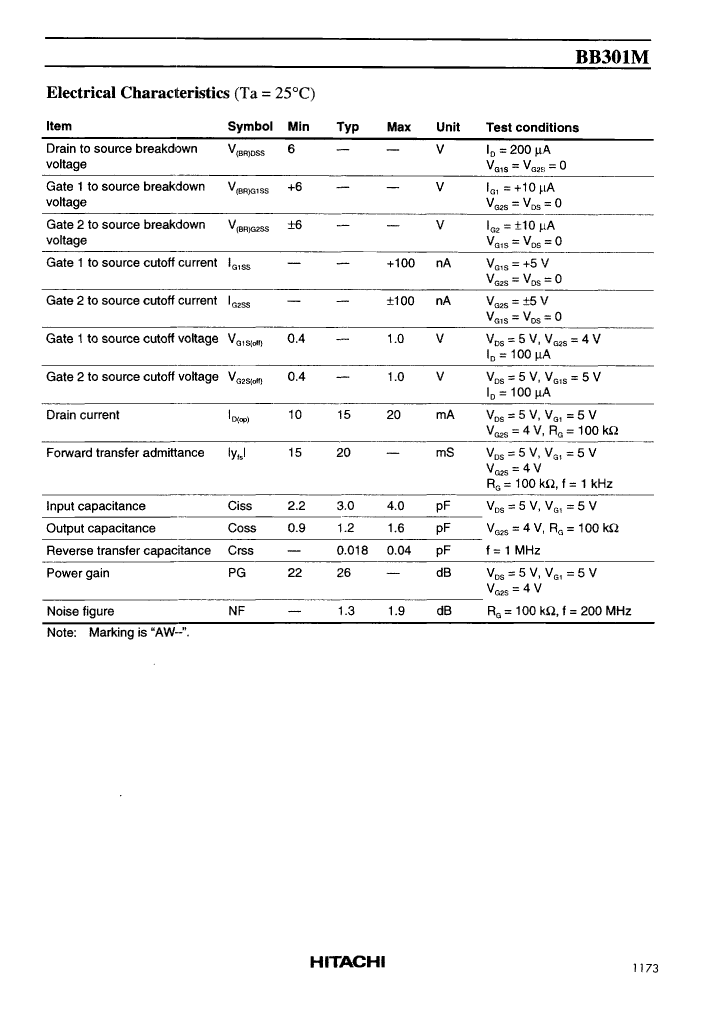

BB301MAW-UL Parametric

Parameter Name	Attribute value
Maker	Renesas Electronics Corporation
package instruction	MPAK-4
Contacts	4
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	LOW NOISE
Shell connection	SOURCE
Configuration	SINGLE
Minimum drain-source breakdown voltage	6 V
Maximum drain current (ID)	0.025 A
FET technology	METAL-OXIDE SEMICONDUCTOR
Maximum feedback capacitance (Crss)	0.04 pF
highest frequency band	VERY HIGH FREQUENCY BAND
JESD-30 code	R-PDSO-G4
Number of components	1
Number of terminals	4
Operating mode	DUAL GATE, ENHANCEMENT MODE
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	N-CHANNEL
Minimum power gain (Gp)	22 dB
Certification status	Not Qualified
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
transistor applications	AMPLIFIER
Transistor component materials	SILICON
