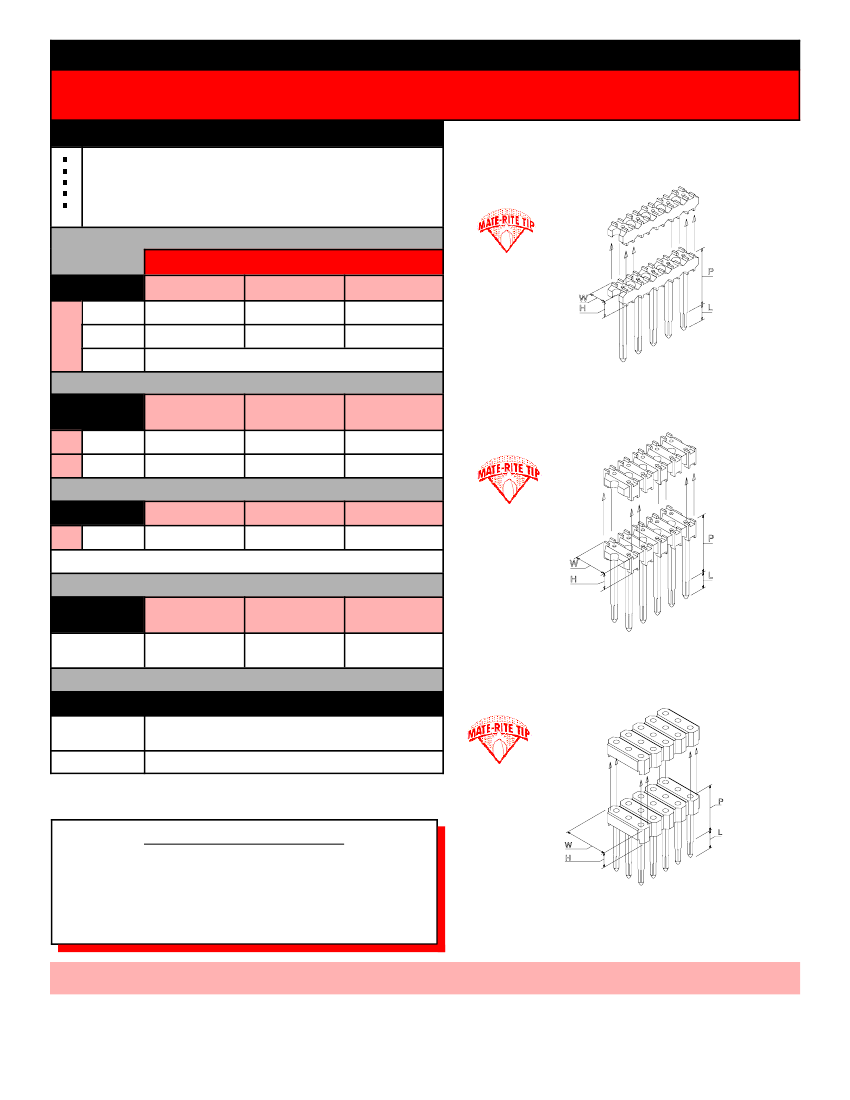

DPEG SERIES
PAGE ONE OF THREE
3,1675,3+($'(5
FEATURES
Detachable insulator for ultra low profile applications
Cost effective replacement for pin staking
MATE-RITE TIP prevents scraping of mating socket
Rounded tails facilitate board placement
Mates with Crane’s ATP, ATS, ABH, ABS, and ABT Sockets; JUN Jumpers
SINGLE ROW (1 to 40 Positions)
STANDARD PART DIMENSIONS
MATING
POST “A”
P
POST “B”
POST “I”
SINGLE ROW
0.318" / 8,08mm
0.230" / 5,84mm
DUAL ROW
0.318" / 8,08mm
0.230" / 5,84mm
TRIPLE ROW
0.318" / 8,08mm
0.230" / 5,84mm
See Selected Options (next page)
INSULATOR
BODY
W
H
WIDTH
HEIGHT
SINGLE ROW
DUAL ROW
TRIPLE ROW
DUAL ROW (2 to 80 Positions)
0.096" / 2,44mm
0.098" / 2,49mm
0.198" / 5,03mm
0.098" / 2,49mm
0.295" / 7,49mm
0.098" / 2,49mm
PC TAIL
L
LENGTH
SINGLE ROW
0.110" / 2,79mm
DUAL ROW
0.110" / 2,79mm
TRIPLE ROW
0.110" / 2,79mm
For other lengths, see Selected Options (next page)
BOARD
LAYOUT
Finished Plated
Thru-Hole Size
SINGLE ROW
DUAL ROW
TRIPLE ROW
0.032" ± 0.002" /
0,81mm ± 0,05mm
0.032" ± 0.002" /
0,81mm ± 0,05mm
0.032" ± 0.002" /
0,81mm ± 0,05mm
TRIPLE ROW (9 to 120 Positions)
MATERIALS
INSULATOR
BODY
POST
Glass Filled Polyester (UL94V-O)
Phosphor Bronze
See SPECIFICATIONS and PERFORMANCE DATA for more detail
PIN STAKING ALTERNATIVE?
A Crane customer, frustrated with the “downtime” associated with his pin
staking operation, ran tests to see if it would be a cost effective alternative
to use Crane’s DPEG Series connectors. The tests revealed he would not
only save money, but eliminate the noise and rough handling associated with
the staking operation.
SAMPLE HOTLINE: 1-800-676-7644
CRANE CONNECTORS
• 4700 Smith Road • Cincinnati, Ohio 45212 USA • E-mail Address: info@craneconnectors.com
Phone: (513) 631-4700 • Fax (513) 631-5700 • Toll Free US (800) 676-7644 • Canada (800) 420-7310
DPEG SERIES
0.100" (2,54mm) Centers
0.025" (0,64mm)
Square Mating Posts
PAGE TWO OF THREE
HOW TO ORDER CRANE’S DPEG SERIES
STANDARD PART NUMBER
--
OPTIONAL
PRODUCT SERIES
DPEG
TOTAL NUMBER OF POSITIONS
SINGLE
DUAL
TRIPLE
01-40
02-80
09-120
NUMBER OF ROWS
SINGLE
DUAL
TRIPLE
S
D
T
TYPE OF HEADER
STRAIGHT
S
PLATING (See Specs At Bottom Of Page)
G,T or M, H, L, F
Due to the number of options, not all platings are stocked for all pin lengths. Contact factory for availability.
MATING POST DATA
Mating Post Length
0.318" / 8,08mm
0.230" / 5,84mm
Minimum Gold Plated Area
0.180" / 4,57mm
0.180' / 4,57mm
A
B
I
OPTIONAL LENGTH - See Below
TAIL (O.110" / 2,79mm STANDARD)
COINED
0.028" / 0,71mm Diagonal
R
SELECTED OPTIONS
If you need one of our OPTIONAL dimensions, just add designator to the end of standard part.
POST
I
0.180
TAIL
0.100"
1
8
0
Crane’s Detachable Insulator Headers
DPEG header is placed on
the PC board
Coined tail penetrates; square
shoulder does not
DPEG header is soldered to
the PC board
Insulator is removed from header
after soldering
NOTE: Crane recommends a PC hole diameter of 0.032" ± 0.002" for use with DPEG header series.
SAMPLE HOTLINE: 1-800-676-7644
CRANE CONNECTORS
• 4700 Smith Road • Cincinnati, Ohio 45212 USA • E-mail Address: info@craneconnectors.com
Phone: (513) 631-4700 • Fax (513) 631-5700 • Toll Free US (800) 676-7644 • Canada (800) 420-7310
CRANE CONNECTORS - PLATING SPECIFICATIONS
PLATING OPTIONS
CONTACT AREA
Inches (Millimeters)
15
” (0,00038) Gold
100
” (0,00254) Tin / Lead
50
” (0,00127) Gold
30
” (0,00076) Gold
10
” (0,00025) Gold
3
” (0,00008) Gold
PC TAIL
Inches (Millimeters)
100
” (0,00254) Tin/Lead - Min
100
” (0,00254) Tin/Lead - Min
100
” (0,00254) Tin/Lead - Min
100
” (0,00254) Tin/Lead - Min
100
” (0,00254) Tin/Lead - Min
100
” (0,00254) Tin/Lead - Min
UNDERPLATE
Inches (Millimeters)
50
” (0,00127) Nickel - Min.
50
” (0,00127) Nickel - Min.
50
” (0,00127) Nickel - Min.
50
” (0,00127) Nickel - Min.
50
” (0,00127) Nickel - Min.
50
” (0,00127) Nickel - Min.
G
T
M
H
L
F
Selective
Tin / Lead
Selective
Selective
Selective
Selective
STANDARD TAIL OPTIONS ON 0.100" (2,54mm) PIN STRIP HEADERS
STANDARDS
ISO9001
“R”
COINED
The standard “R” option
provides a coined tail
improving solder action
while making insertion
easier.
“K”
KINKED
The “K” option provides a
kinked tail, reducing
unwanted movement on
the PC board.
“F”
FINE
The “F” option combines
an 0.018" rounded tail
with an 0.025" square
post.
This fine line
feature allows more
traces between holes.
“Q”
SQUARE
The “Q” option provides
an 0.025" square tail for
u s e i n wi r e wr a p
applications.
Crane Connectors
File No. A-3620
UL File No. E120111 (N)
Recognized to U.S. and Canadian
r e q u i r e me n t s u n d er t h e
Component Recognition Program
of Underwriters Laboratories Inc.
Registered by UL to ISO9001
under UL’s accreditation by Raad
voor de Certificatie (RvC), the
Dutch Council for Certification.
SAMPLE HOTLINE: 1-800-676-7644
CRANE CONNECTORS
• 4700 Smith Road • Cincinnati, Ohio 45212 USA • E-mail Address: info@craneconnectors.com
Phone: (513) 631-4700 • Fax (513) 631-5700 • Toll Free US (800) 676-7644 • Canada (800) 420-7310
