Part Number:
Status:
Description:
1050760001
Active
Camera Socket for Mobile Phone, Bottom Contact, 7x7 Camera Module, Lead free
Documents:

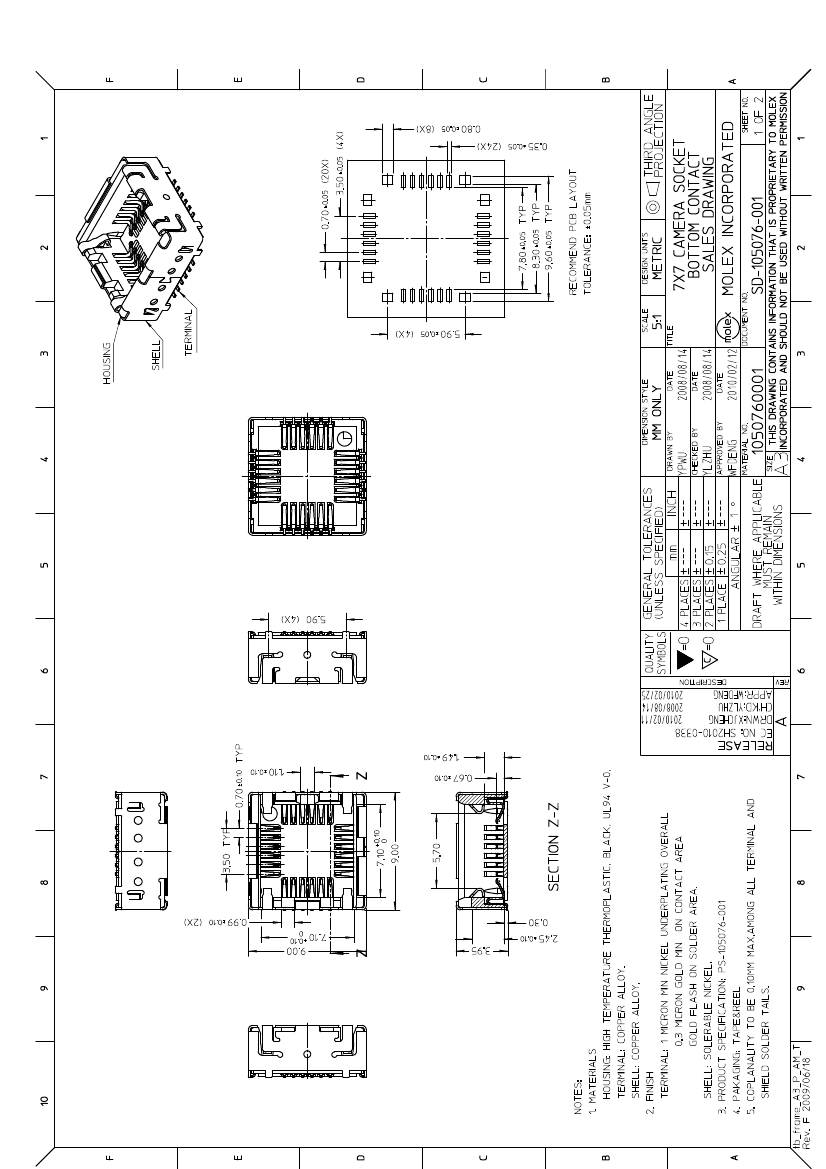

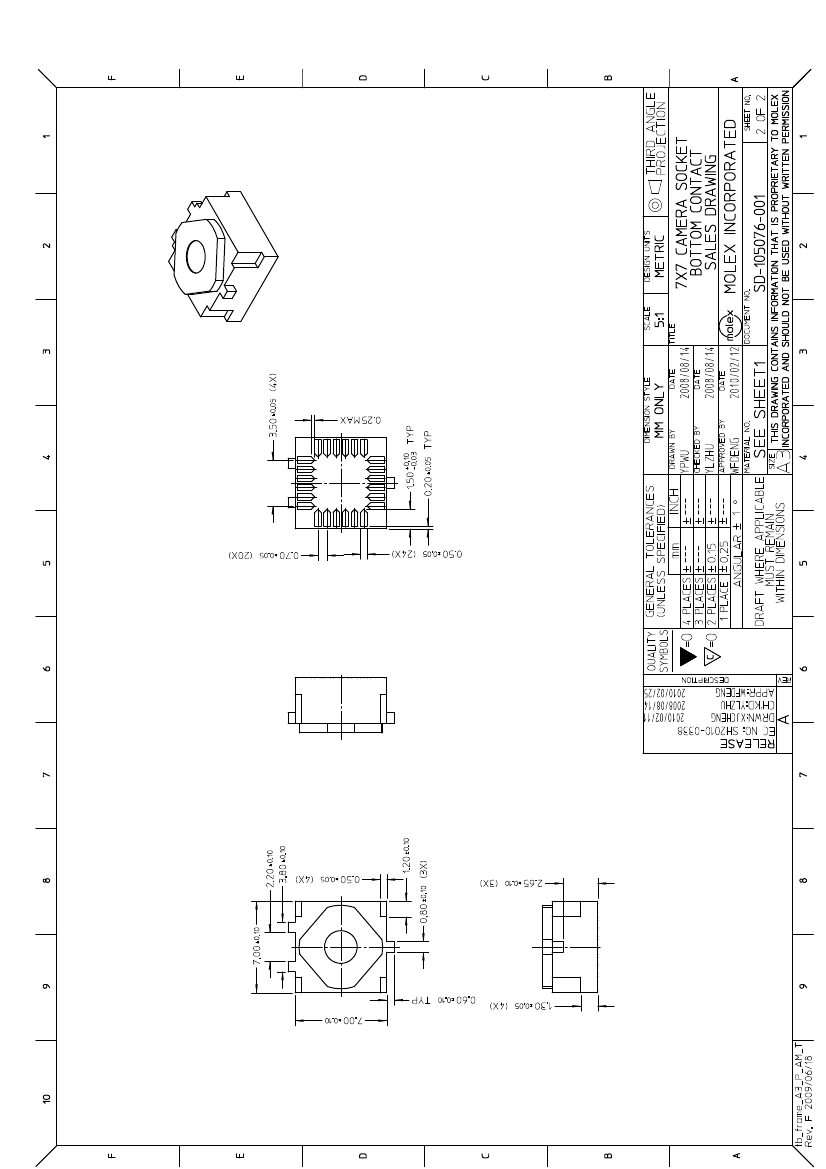

Drawing (PDF)
Product Specification PS-105076-001 (PDF)
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Component Type
Product Name
Other Sockets
105076
Socket
Camera Socket
Physical
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
Entry Angle
Keying to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
PCB Locator
PCB Retention
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Temperature Range - Operating
Termination Interface: Style
24
24
Black
20
Vertical (Top Entry)
Yes
Copper Alloy
Gold
Gold
High Temperature Thermoplastic
No
Yes
Embossed Tape on Reel
0.028 In
0.70 mm
0.028 In
0.70 mm
12
0.3
-55°C to +85°C
Surface Mount
EU RoHS
ELV and
Complia
REACH S
Contains
Halogen
Status
Halogen
Need mo
environm
Email pro
For a mu
Complian
Please vi
non-prod
Search
105076
Mates
Camer
Electrical
Current - Maximum per Contact
Voltage - Maximum
.5A
50V DC
Solder Process Data
Duration at Max. Process Temperature (seconds)
Lead-free Process Capability
Max. Cycles at Max. Process Temperature
Process Temperature max. C
2
Reflow Capable (SMT only)
2
245
Material Info
Reference - Drawing Numbers
Packaging Specification
Product Specification
Sales Drawing
PK-105076-001
PS-105076-001
SD-105076-001
