Ordering number : EN*5409
CMOS LSI
LE28CV1001M, T-12/15
1MEG (131072 words
×
8 bits) Flash Memory
Overview
The LE28CV1001M, T Series ICs are 1 MEG flash
memory products that feature a 131072-word
×
8-bit
organization and 3.3 V single-voltage power supply
operation. CMOS peripheral circuits are adopted for high
speed, low power, and ease of use. A 128-byte page
rewrite function provides rapid data rewriting.

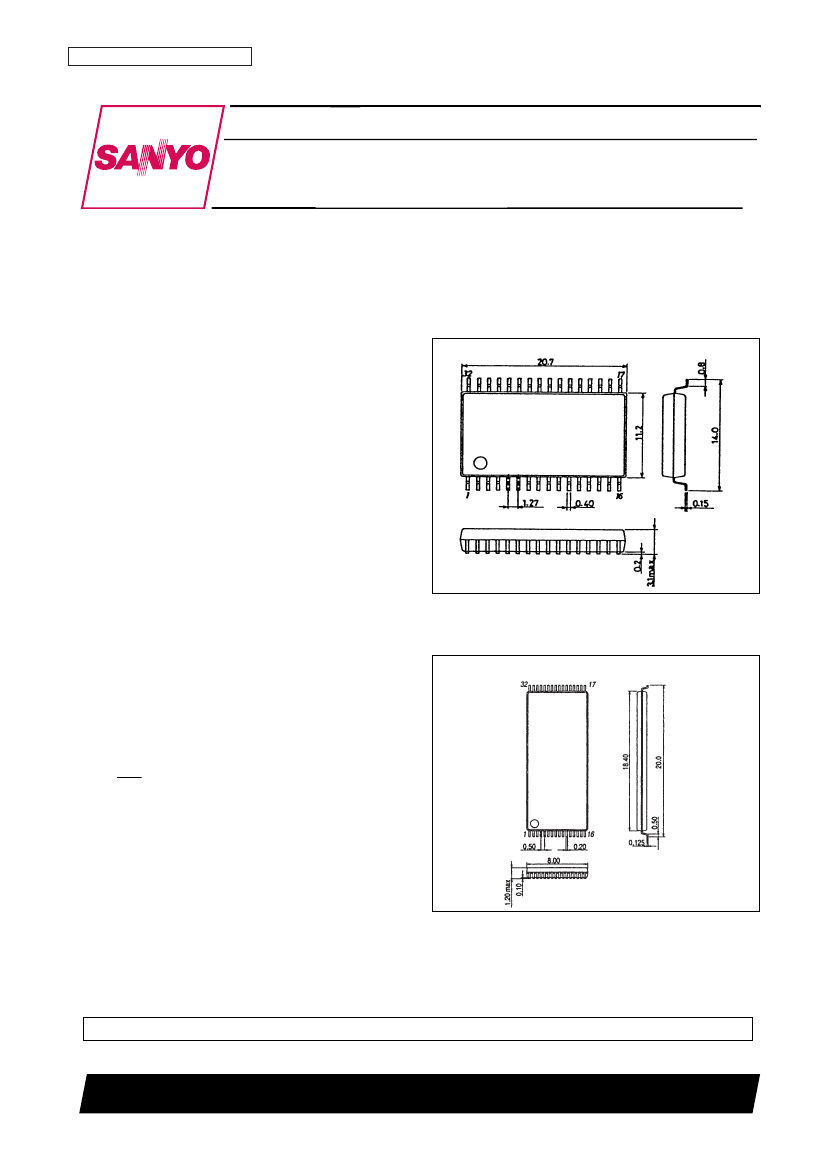

Package Dimensions
unit: mm
3205-SOP32
[LE28CV1001M]
Features
• Highly reliable 2-layer polysilicon CMOS flash
EEPROM process
• Read and write operations using a 5 V single-voltage
power supply
• Fast access time: 120 and 150 ns
• Low power dissipation
— Operating current (read): 12 mA (maximum)
— Standby current: 15 µA (maximum)
• Highly reliable read/write
—Erase/write cycles: 10
4
/10
3
cycles
—Data retention time: 10 years
• Address and data latches
• Fast page rewrite operation
— 128 bytes per page
— Byte/page rewrite time: 5 ms (typical)
— Chip rewrite time: 5 s (typical)
• Automatic rewriting using internally generated Vpp
• Rewrite complete detection function
— Toggle bit
— Data polling
• Hardware and software data protection functions
• All inputs and outputs are TTL compatible.
• Pin assignment conforms to the JEDEC byte-wide
EEPROM standard.
• Package
SOP 32-pin (525 mil) plastic package:LE28CV1001M
TSOP 32-pin (8
×
20 mm) plastic package:LE28CV1001T
SANYO: SOP32
unit: mm
3224-TSOP32
[LE28CV1001T]
SANYO: TSOP32 (TYPE-I)
These FLASH MEMORY products incorporate technology licensed Silicon Storage Technology, Inc.
SANYO Electric Co.,Ltd. Semiconductor Bussiness Headquarters
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110 JAPAN
93096HA (OT) No. 5409-1/14
LE28CV1001M, T-12/15

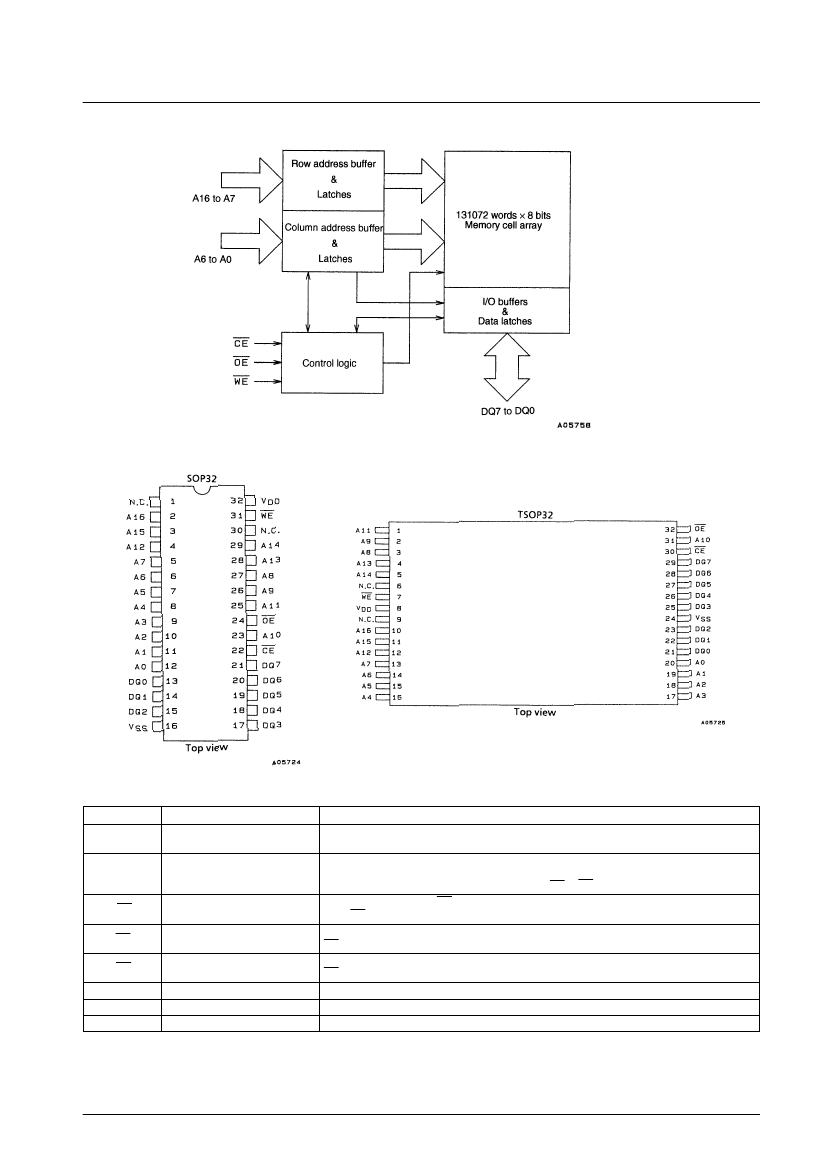

Block Diagram
Pin Assignments
Pin Functions
Symbol
A16 to A0
Address input
Pin
Function
Supply the memory address to these pins.
The address is latched internally during a write cycle.
These pins output data during a read cycle and input data during a write cycle.
Data is latched internally during a write cycle.
Outputs go to the high-impedance state when either OE or CE is high.
The device is active when CE is low.
When CE is high, the device becomes unselected and goes to the standby state.
Makes the data output buffers active.
OE is a low-active input.
Makes the write operation active.
WE is an active-low input.
Apply 3.3 V ±0.3 to this pin.
DQ7 to DQ0
Data input and output
CE
OE
WE
V
DD
V
SS
N.C.
Chip enable
Output enable
Write enable
Power supply
Ground
No connection
These pins must be left open.
No. 5409-2/14
LE28CV1001M, T-12/15
Function Logic
Mode
Read
Write
Standby
Write inhibit
CE
V
IL
V
IL
V
IH
X
X
OE
V
IL
V
IH
X
V
IL
X
WE
V
IH
V
IL
X
X
V
IH
A
IN
A
IN
X
X
X
A16 to A10 = V
IL
, A8 to A1 = V
IL
,
Product identification
V
IL
V
IL
V
IH
A9 = 12 V, A0 = V
IL
A16 to A10 = V
IL
, A8 to A1 = V
IL
,
A9 = 12 V, A0 = V
IH
A16 to A0
D
OUT
D
IN
High-Z
High-Z/D
OUT
High-Z/D
OUT
Manufacturer code (BF)
DQ7 to DQ0
Device code (07)
Software Data Protection Command
Byte sequence
Write 0
Write 1
Write 2
Write 3
Write 4
Write 5
Note: Address format A14 to A0 (hex.)
Set protection
Address
5555
2AAA
5555
Data
AA
55
A0
Reset protection
Address
5555
2AAA
5555
5555
2AAA
5555
Data
AA
55
80
AA
55
20
Software Product ID Entry Command and Exit Command Codes
Byte sequence
Write 0
Write 1
Write 2
Write 3
Write 4
Write 5
Protect ID Entry
Address
5555
2AAA
5555
5555
2AAA
5555
Data
AA
55
80
AA
55
60
Protect ID Exit
Address
5555
2AAA
5555
Data
AA
55
F0
Notes on software Product ID Command Code:
1. Command Code Address format: A14 to A0 (hex.)
2. With A14 to A1 = V
IL
,
Manufacturer Code is read with A0 = V
IL
to be BFH
LE28CV1001M, T Device Code is read with A0 = V
IH
to be 07H
3. The device does not remain in Software Product ID Mode if powered down.
4. A16 and A15 at V
IH
or V
IL
.
No. 5409-3/14
LE28CV1001M, T-12/15
Device Operation
This Sanyo 1 MEG flash memory allows electrical rewrites using a 3.3 V single-voltage power supply. The
LE28CV1001M, T series products are pin and function compatible with the industry standards for this type of product.
Read
The LE28CV1001M, T series products read operations are controlled by CE and OE. The host must set both pins to the
low level to acquire the output data. CE is used for chip selection. When CE is at the high level, the chip will be in the
unselected state and only draw the standby current. OE is used for output control. The output pins go to the high-
impedance state when either CE or OE is high. See the timing waveforms (Figure 1) for details.
Page Write Operation
The write operation starts when both CE and WE are at the low level, and furthermore OE is at the high level. The write
operation is executed in two stages. The first stage is a byte load cycle in which the host writes to the LE28CV1001M, T
series products internal page buffer. The second stage is an internal programming cycle in which the data in the page
buffer is written to the nonvolatile memory cell array. In the byte load cycle, the address is latched on the falling edge of
either CE or WE, whichever occurs later. The input data is latched on the rising edge of either CE or WE, whichever
occurs first. The internal programming cycle starts if either WE or CE remains high for 200 µs (t ). Once this
programming cycle starts, the operation continues until the programming operation is completely done. This operation
executes within 5 ms (typical). Figures 2 and 3 show the WE and CE control write cycle timing diagrams, and Figure 9
shows the flowchart for this operation.
In the page write operation, 128 bytes of data can be written to the LE28CV1001M, T series products internal page
buffer before the internal programming cycle. All the data in the page buffer is written to the memory cell array during
the 5 ms (typical) internal programming cycle. Therefore the LE28CV1001M, T series products page write function can
rewrite all memory cells in 5 seconds (typical). The host can perform any other activities desired, such as moving data at
other locations within the system and preparing the data required for the next page write, during the period prior to the
completion of the internal programming cycle. In a given page write operation, all the data bytes loaded into the page
buffer must be for the same page address specified by address lines A7 through A16. All data that was not explicitly
loaded into the page buffer is set to FFH.
Figure 2 shows the page write cycle timing diagram. If the host loads the second data byte into the page buffer within the
100 µs byte load cycle time (t ) after the first byte load cycle the LE28CV1001M, T series products stop in the page
load cycle thus allowing data to be loaded continuously. The page load cycle terminates if additional data is not loaded
into the internal page buffer within 200 µs (t ) after the previous byte load cycle, as in the case where WE does not
switch from high to low after the last WE rising edge. The data in the page buffer can be rewritten in the next byte load
cycle.
The page load period can continue indefinitely as long as the host continues to load data into the device within the 100 µs
byte load cycle. The page that is loaded is determined by the page address of the last byte loaded.
BLCO
BLC
BLCO
Detecting the Write Operation State
The LE28CV1001M, T series products provide two functions for detecting the completion of the write cycle. These
functions are used to optimize the system write cycle time. These functions are based on detecting the states of the Data
polling bit (DQ7) and the toggle bit (DQ6).
Data Polling (DQ7)
The LE28CV1001M, T series products output to DQ7 the inverse of the last data loaded during the page and byte load
cycles when the internal programming cycle is in progress. The last data loaded will be read from DQ7 when the internal
programming cycle completes. Figure 4 shows the Data polling cycle timing diagram and Figure 10 shows the flowchart
for this operation.
No. 5409-4/14
LE28CV1001M, T-12/15
Toggle Bit (DQ6)
Data values of 0 and 1 are output alternately for DQ6, that is DQ6 is toggled between 0 and 1, during the internal
programming cycle. When the internal programming cycle completes this toggling is stopped and the device becomes
ready to execute the next operation. Figure 5 shows the toggle bit timing diagram and Figure 10 shows the flowchart for
this operation.
Data Protection
Hardware Data Protection
Noise and glitch protection: The LE28CV1001 does not execute write operations for WE or OE pulses that are 15 ns or
shorter.
Power (V
DD
) on and cutoff detection: The programming operation is disabled when V
DD
is 2.5 V or lower.
Write inhibit mode: Writing is disabled when OE is low and either CE is high or WE is high. Use this function to prevent
writes from occurring when the power is being turned on or off.
Software Data Protection
The LE28CV1001 implements the optional software data protection function recognized by JEDEC. This function
requires that a 3-byte load operation to be performed before a write operation data load. The 3-byte load sequence starts
a page load cycle without activating any write operation. Thus this is an optimal protection scheme for unintended write
cycles triggered by noise associated with powering the chip on or off. Note that the LE28CV1001 is shipped with the
software data protection function disabled.
The software data protection circuit is activated by executing a 3-byte byte load cycle in advance of the data sequence in
the page load cycle. (See Figure 6.) This causes the device to automatically enter data protection mode. After this, write
operations require a 3-byte byte load cycle to be executed in advance. A 6-byte write sequence is required to switch the
device out of this protection mode. Figure 7 shows the timing diagram. If a write operation is attempted in software
protection mode, all device functions are disabled for 200 µs. Figure 11 shows the flowchart for this operation.
Product Identification
The device identification code is used for recognizing the device and its manufacturer. This mode can be used by
hardware and software. The hardware operating mode is used to recognize algorithms that match the device when an
external programming unit is used. Also, user systems can recognize the product number using software product
identification mode. Figure 12 shows the flowchart for this operation. The manufacturer and device codes are the same
in both modes.
No. 5409-5/14
