89075-N541LF

Description
Board Connector, 96 Contact(s), 4 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Locking, Plug, LEAD FREE
CategoryThe connector    The connector
File Size2MB，15 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Environmental Compliance
Download Datasheet Parametric View All

89075-N541LF Overview

Board Connector, 96 Contact(s), 4 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Locking, Plug, LEAD FREE

89075-N541LF Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerAmphenol
package instructionLEAD FREE
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresPOLARIZED
Board mount optionsPEG
body width0.622 inch
subject depth0.669 inch
body length1.887 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact completed and terminatedTin (Sn)
Contact point genderMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
DIN complianceNO
Dielectric withstand voltage1400VAC V
Filter functionNO
IEC complianceNO
maximum insertion force.3614 N
Insulation resistance1000000000 Ω
insulator materialGLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 codee3
MIL complianceNO
Manufacturer's serial number89075
Plug contact pitch0.079 inch
Match contact row spacing0.079 inch
Mixed contactsNO
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number4
Number of rows loaded4
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing2.0066 mm
polarization keyPOLARIZED HOUSING
Rated current (signal)1 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal pitch2 mm
Termination typePRESS FIT
Total number of contacts96
UL Flammability Code94V-0
Evacuation force-minimum value.14734 N

Preview

Download Datasheet
1
2
3
4

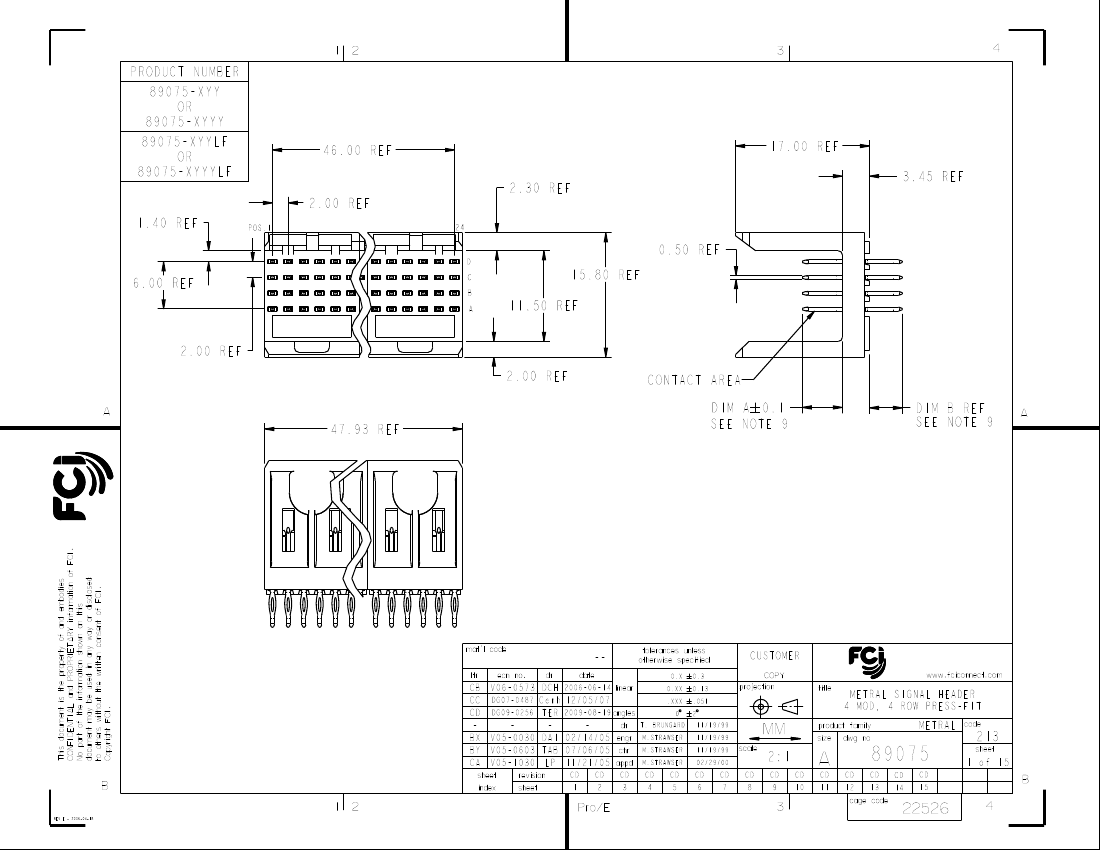

PRODUCT NUMBER
89075-XYY
OR
89075-XYYY
89075-XYYLF
OR
89075-XYYYLF
46.00 REF
2.30 REF
2.00 REF
1.40 REF
POS.1
24
17.00 REF
3.45 REF
0.50 REF
D
6.00 REF
C
B
A
15.80 REF
11.50 REF
2.00 REF
2.00 REF
A
CONTACT AREA
DIM A 0.1
SEE NOTE 9
DIM B REF
SEE NOTE 9
A
47.93 REF
CONFIDENTIAL and PROPRIETARY information of FCI.
This document is the property of and embodies
to others without the written consent of FCI.
document may be used in any way or disclosed
No part of the information shown on this
mat'l code
--
ecn no.
dr
date
tolerances unless
otherwise specified
CUSTOMER
COPY
projection
title
www.fciconnect.com
ltr
0.X
linear
0.3
0.13
.051
2
CB
CC
CD
-
BX
BY
CA
V06-0573 DCH
DG07-0487
Cenh
DG09-0256
TER
-
-
V05-0030 DAI
V05-0603 TAB
V05-1030 LP
revision
sheet
2006-06-14
0.XX
.XXX
12/05/07
2009-08-19
angles
dr
engr
chr
appd
Copyright FCI.
0
METRAL SIGNAL HEADER
4 MOD, 4 ROW PRESS-FIT
METRAL
code
dwg no
-
02/14/05
07/06/05
11/21/05
CD
1
CD
2
Pro/E
T. BRUNGARD
M.STRAWSER
M.STRAWSER
M.STRAWSER
11/19/99
11/19/99
11/19/99
02/29/00
scale
MM
product family
size
2:1
CD
9
3
CD
10
A
CD
11
CD
12
89075
CD
13
CD
14
CD
15
cage code
213
sheet
1 of 15
B
4
sheet
CD
3
CD
4
CD
5
CD
6
CD
7
CD
8
B
1
REV E - 2006-04-18
index
2
22526
PDM: Rev:CD
STATUS:
Released
Printed: Sep 16, 2009
.
