BSP171PL6327 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> BSP171PL6327

BSP171PL6327: DescriptionPower Field-Effect Transistor, 1.9A I(D), 60V, 0.3ohm, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, ROHS COMPLIANT, PLASTIC PACKAGE-4; CategoryDiscrete semiconductor The transistor; File Size614KB，9 Pages; ManufacturerInfineon; Websitehttp://www.infineon.com/; Environmental Compliance

Download Datasheet Parametric View All

BSP171PL6327 Overview

Power Field-Effect Transistor, 1.9A I(D), 60V, 0.3ohm, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, ROHS COMPLIANT, PLASTIC PACKAGE-4

BSP171PL6327 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Infineon
package instruction	SMALL OUTLINE, R-PDSO-G4
Contacts	4
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	LOGIC LEVEL COMPATIBLE, AVALANCHE RATED
Avalanche Energy Efficiency Rating (Eas)	70 mJ
Shell connection	DRAIN
Configuration	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	60 V
Maximum drain current (Abs) (ID)	1.9 A
Maximum drain current (ID)	1.9 A
Maximum drain-source on-resistance	0.3 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JESD-30 code	R-PDSO-G4
JESD-609 code	e3
Humidity sensitivity level	1
Number of components	1
Number of terminals	4
Operating mode	ENHANCEMENT MODE
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Polarity/channel type	P-CHANNEL
Maximum power dissipation(Abs)	1.8 W
Maximum pulsed drain current (IDM)	7.6 A
Certification status	Not Qualified
surface mount	YES
Terminal surface	MATTE TIN
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	40
Transistor component materials	SILICON

Preview

Download Datasheet

View All

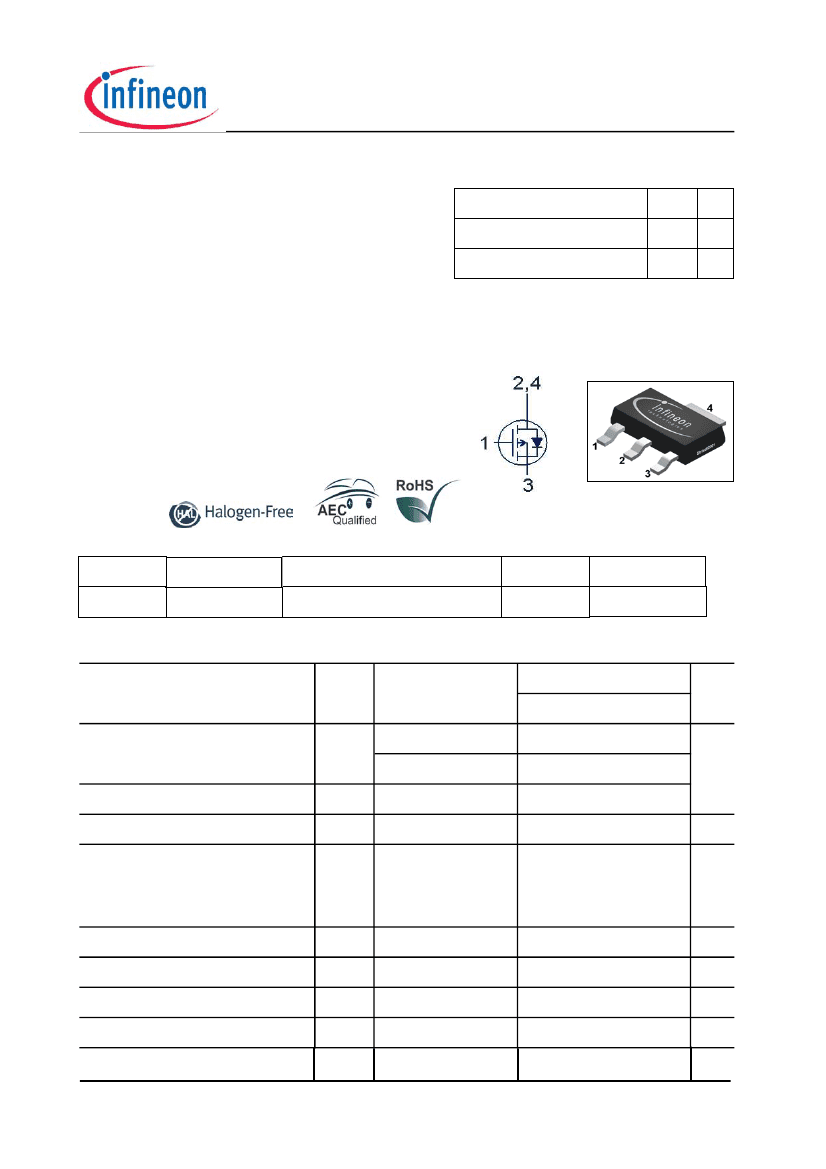

BSP171P

SIPMOS

Small-Signal-Transistor

Features

• P-Channel

• Enhancement mode

• Logic level

• Avalanche rated

• dv /dt rated

• Pb-free lead plating; RoHS compliant

Product Summary

DS(on),max

-60

0.3

-1.9

Ω

PG-SOT223

• Qualified according to AEC Q101

• Halogenfree according to IEC61249221

Type

BSP171P

Package

PG-SOT223

Tape and Reel Information

H6327:

1000 pcs/reel

Marking

BSP171P

Packaging

Non dry

Maximum ratings,

=25 °C, unless otherwise specified

Parameter

Symbol Conditions

Value

steady state

Continuous drain current

=25 °C

=70 °C

Pulsed drain current

Avalanche energy, single pulse

D,pulse

=25 °C

=-1.9 A,

=25

Ω

=-1.9 A,

=-48 V,

di /dt =-200 A/µs,

j,max

=150 °C

-1.9

-1.5

-7.6

Unit

Reverse diode dv /dt

dv /dt

-6

kV/µs

Gate source voltage

Power dissipation

Operating and storage temperature

IEC climatic category; DIN IEC 68-1

tot

stg

=25 °C

±20

1.8

-55 ... 150

55/150/56

°C

ESD Class; JESD22-A114-HBM

Rev 2.6

page 1

Class 1a

2012-11-26
