2.1x0.7 mm SMD CHIP LED LAMP
KPJA-2107SYCK
SUPER BRIGHT YELLOW
Features
!
2.1mmx0.7mm SMT LED, 1.3mm THICKNESS.
!
LOW
Description
The Super Bright Yellow source color devices are
made with DH InGaAlP on GaAs substrate Light
Emitting Diode.
POWER CONSUMPTION.
VIEWING ANGLE.
FOR BACKLIGHT AND INDICATOR.
COLORS AND LENS TYPES AVAILABLE.
: 2000PCS / REEL.
!
WIDE
!
IDEAL
!
VARIOUS
!
PACKAGE

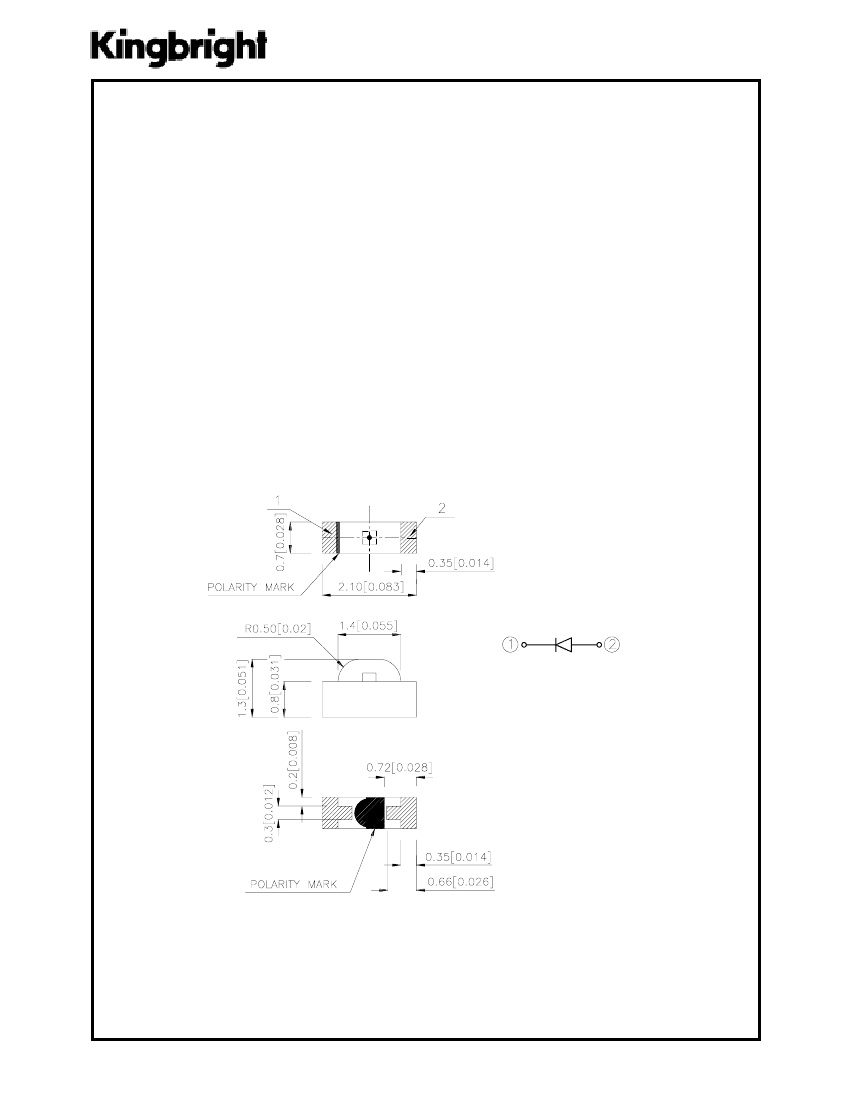

Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0.15(0.006")
unless otherwise noted.
3. Specifications are subject to change without notice.
SPEC NO: DSAA3015
APPROVED : J. Lu
REV NO: V.4
CHECKED : Allen Liu
DATE:DEC/10/2002
DRAWN:Y.H.LI
PAGE: 1 OF 4
Selection Guide
P ar t N o .
Dic e
L en s Ty p e
Iv (m c d )
@ 20 m A
Min .
KPJA-2107SYCK
SUPER BRIGHT YELLOW ( InGaAlP )
WATER CLEAR
18
Ty p .
60
V i ew i n g
An g l e
2θ1/2
120°
Note:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
Electrical / Optical Characteristics at T
A
=25°C
°
Sy m b o l
λ
peak
λ
D
∆λ
1/2
C
V
F
I
R
P ar am et er
Peak Wavelength
Dominate Wavelength
Spectral Line Half-width
Capacitance
Forward Voltage
Reverse Current
D ev i c e
Super Bright Yellow
Super Bright Yellow
Super Bright Yellow
Super Bright Yellow
Super Bright Yellow
Super Bright Yellow
Ty p .
590
590
20
20
2.0
2.5
10
Max .
Un its
nm
nm
nm
pF
V
uA
Tes t Co n d it io n s
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
F
=0V;f =1MHz
I
F
=20mA
V
R
= 5V
Absolute Maximum Ratings at T
A
=25°C
°
P ar am et er
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating/Storage Temperature
Note:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
Su p er B r ig h t Yello w
125
30
175
5
-40
°
C To +85
°C
Un its
mW
mA
mA
V
SPEC NO: DSAA3015
APPROVED : J. Lu
REV NO: V.4
CHECKED : Allen Liu
DATE:DEC/10/2002
DRAWN:Y.H.LI
PAGE: 2 OF 4

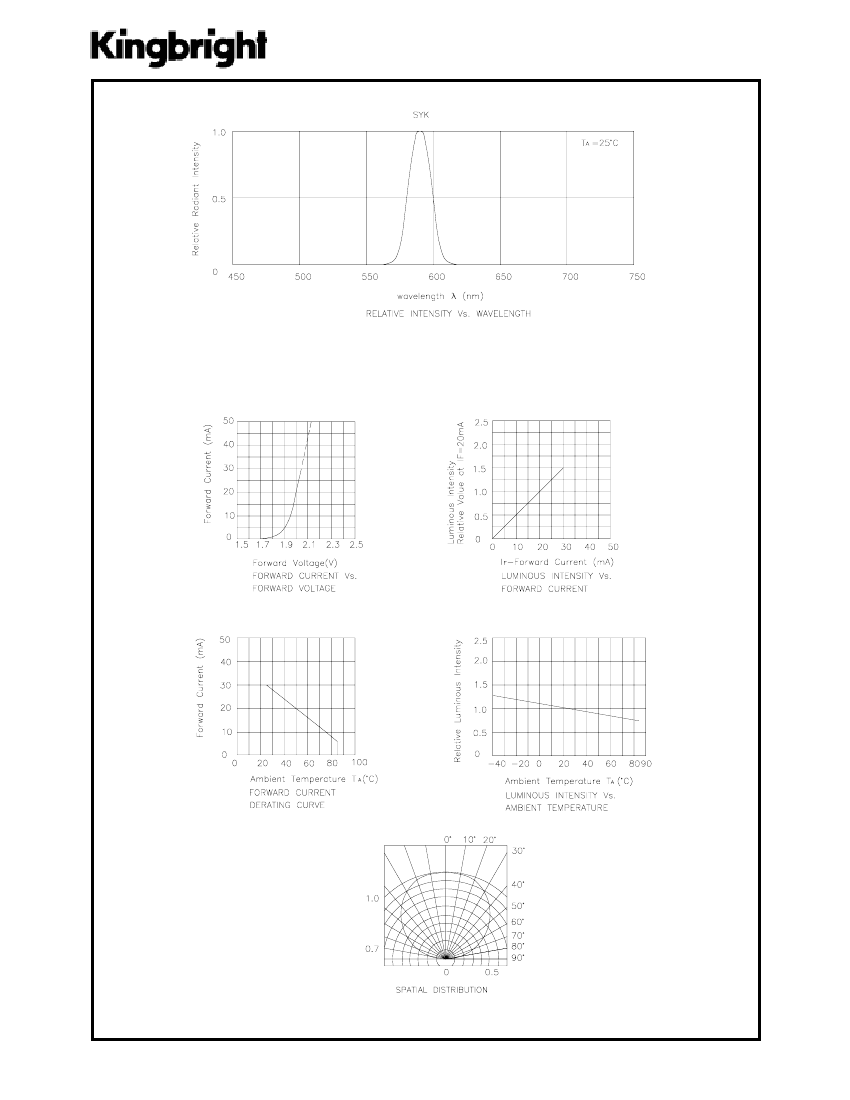

Super Bright Yellow
KPJA-2107SYCK
SPEC NO: DSAA3015
APPROVED : J. Lu
REV NO: V.4
CHECKED : Allen Liu
DATE:DEC/10/2002
DRAWN:Y.H.LI
PAGE: 3 OF 4
KPJA-2107SYCK

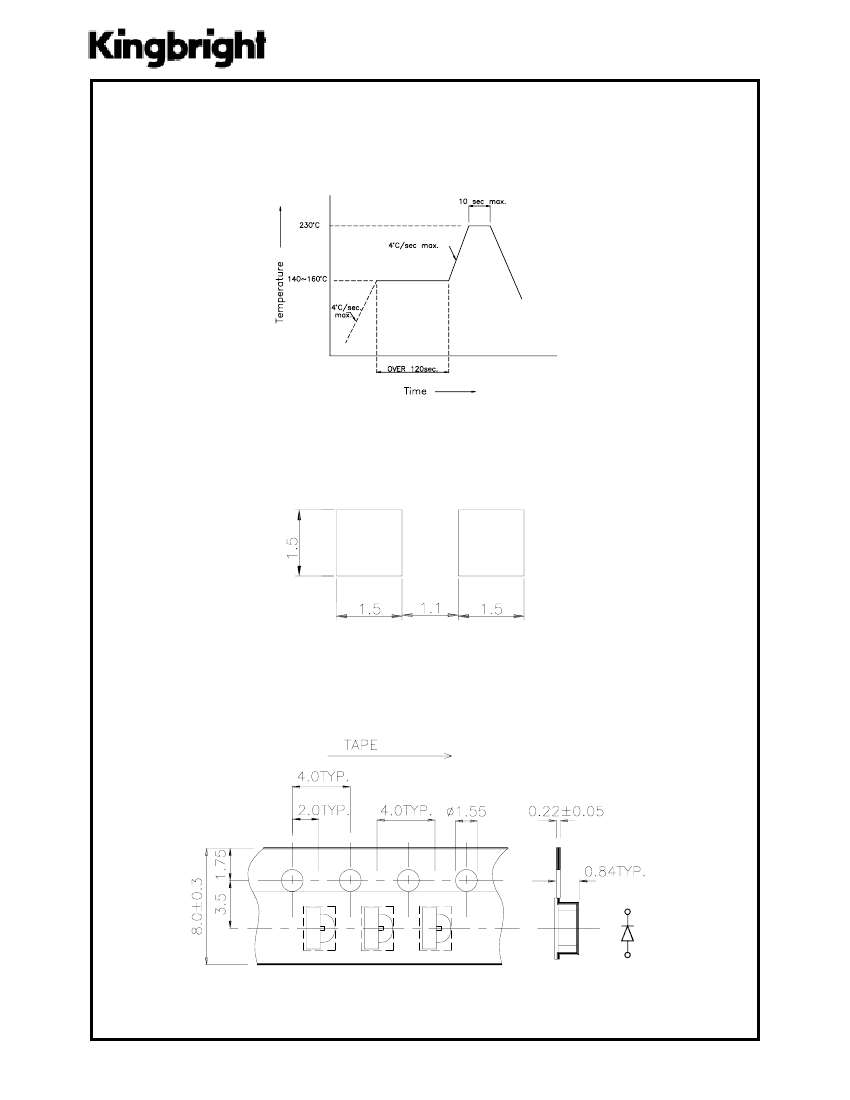

SMT Reflow Soldering Instruction
Number of reflow process shall be less than 2 times and cooling
process to normal temperature is required between first and
second soldering process."
Recommended Soldering Pattern
(Units : mm)
Tape Specifications
(Units : mm)
SPEC NO: DSAA3015
APPROVED : J. Lu
REV NO: V.4
CHECKED : Allen Liu
DATE:DEC/10/2002
DRAWN:Y.H.LI
PAGE: 4 OF 4
