BC846UF-B Overview

Small Signal Bipolar Transistor, 0.1A I(C), NPN,

BC846UF-B Parametric

Parameter Name	Attribute value
Maker	KODENSHI
package instruction	,
Reach Compliance Code	unknown
Maximum collector current (IC)	0.1 A
Configuration	Single
Minimum DC current gain (hFE)	200
Maximum operating temperature	150 °C
Polarity/channel type	NPN
Maximum power dissipation(Abs)	0.2 W
surface mount	YES

Preview

Download Datasheet

View All

Semiconductor

BC846UF

NPN Silicon Transistor

Descriptions

•

General purpose application

•

Switching application

Features

•

High voltage : V

CEO

=55V

•

Complementary pair with BC856UF

Ordering Information

Type NO.

BC846UF

Marking

: h

rank

Package Code

SOT-323F

Outline Dimensions

unit :

1.95~2.25

1.20~1.40

1.90~2.10

1.30 Typ.

0.16 Max.

0.10 Max.

0.60~0.80

0.40 Max.

PIN Connections

1. Base

2. Emitter

3. Collector

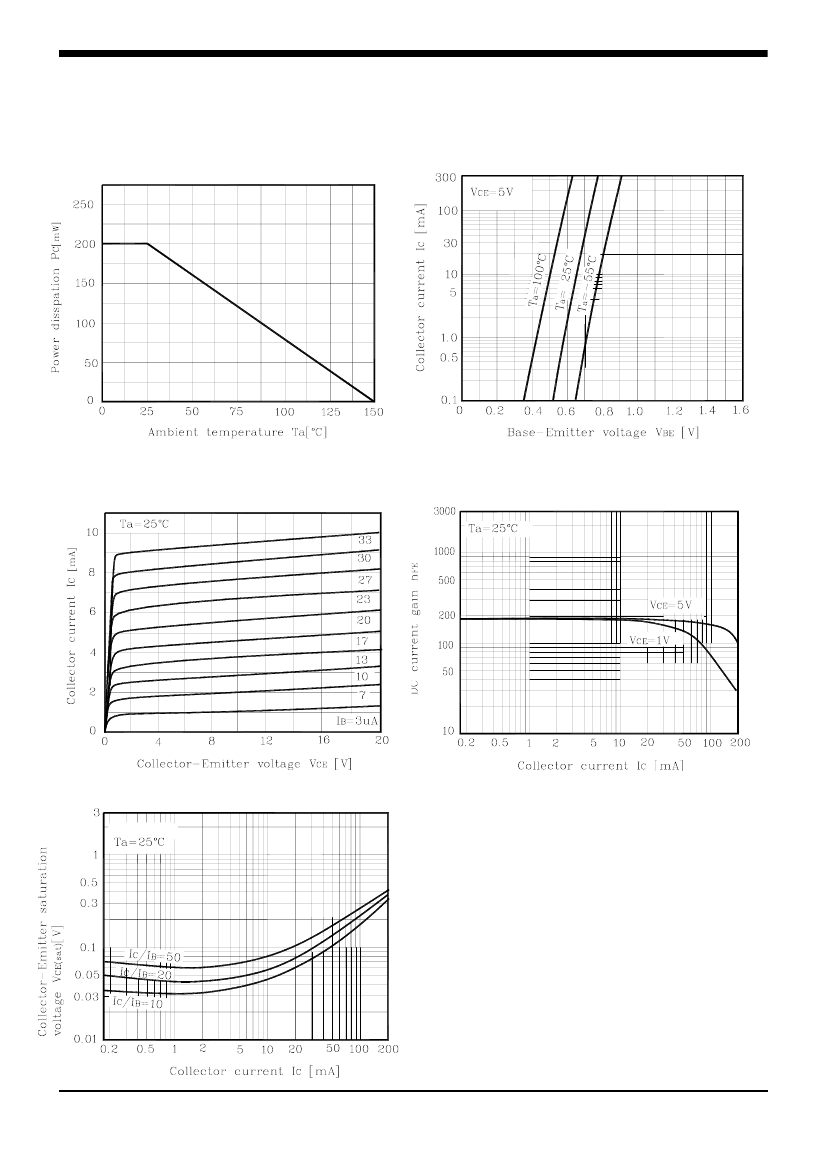

KST-3037-001

BC846UF-B Related Products

	BC846UF-B	BC846UF-C
Description	Small Signal Bipolar Transistor, 0.1A I(C), NPN,	Small Signal Bipolar Transistor, 0.1A I(C), NPN,
Maker	KODENSHI	KODENSHI
Reach Compliance Code	unknown	unknown
Maximum collector current (IC)	0.1 A	0.1 A
Configuration	Single	Single
Minimum DC current gain (hFE)	200	420
Maximum operating temperature	150 °C	150 °C
Polarity/channel type	NPN	NPN
Maximum power dissipation(Abs)	0.2 W	0.2 W
surface mount	YES	YES
