54393-2118 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 54393-2118

54393-2118: DescriptionCard Edge Connector, 21 Contact(s), 1 Row(s), Female, Right Angle, 0.012 inch Pitch, Surface Mount Terminal, Locking, Beige Insulator, LEAD FREE; CategoryThe connector The connector; File Size265KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

54393-2118 Overview

Card Edge Connector, 21 Contact(s), 1 Row(s), Female, Right Angle, 0.012 inch Pitch, Surface Mount Terminal, Locking, Beige Insulator, LEAD FREE

54393-2118 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
package instruction	LEAD FREE
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS AND ELV COMPLIANT
Board mount options	FITTING NAIL
body width	0.077 inch
subject depth	0.173 inch
body length	0.346 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	80 mΩ
Contact style	SINGLE PRONG
DIN compliance	NO
Dielectric withstand voltage	250VAC V
Durability	20 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	ZIF N
Insulation resistance	50000000 Ω
Insulator color	BEIGE
insulator material	LIQUID CRYSTAL POLYMER (LCP)
MIL compliance	NO
Plug contact pitch	0.012 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	4.1402 mm
Plating thickness	8u inch
Rated current (signal)	0.2 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.3 mm
Termination type	SURFACE MOUNT
Total number of contacts	21
UL Flammability Code	94V-0
Evacuation force-minimum value	ZIF N

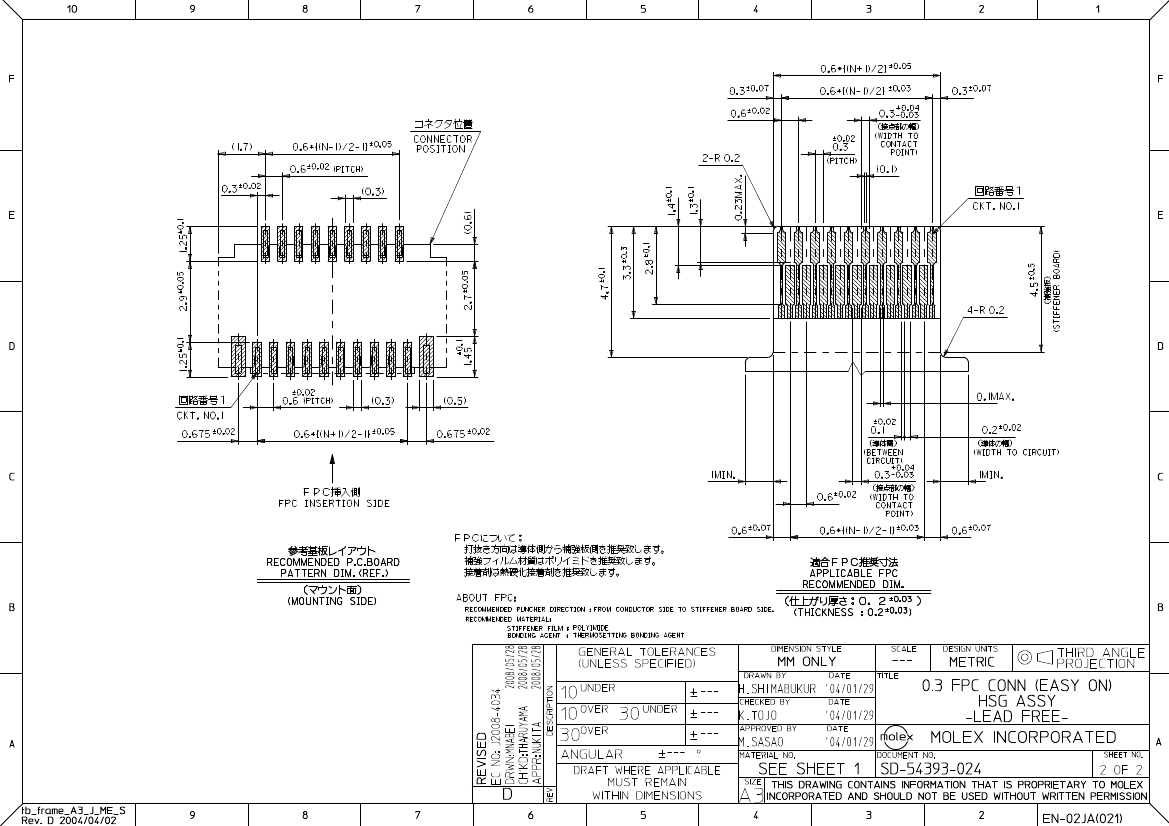

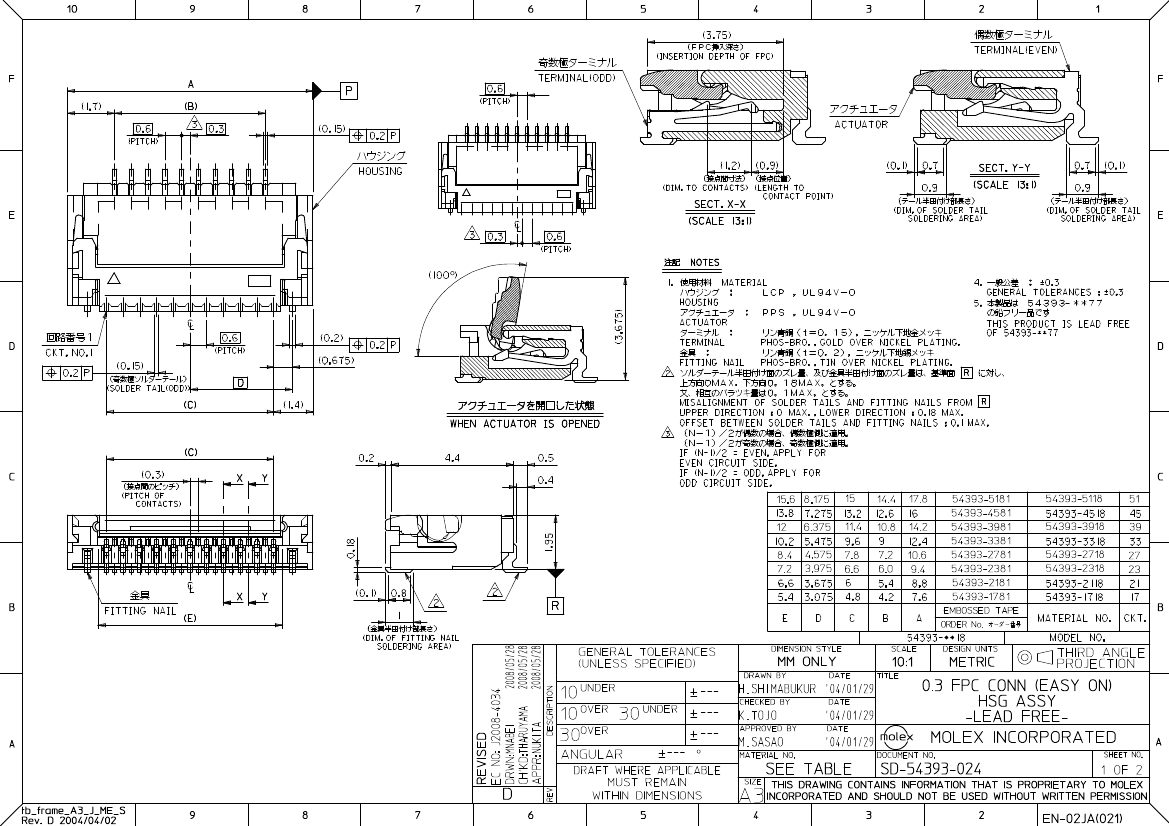

Preview

Download Datasheet

View All

54393-2118 Related Products

	54393-2118	54393-3318	54393-3918	54393-4518	54393-2318	54393-5118	54393-1718	54393-2718
Description	Card Edge Connector, 21 Contact(s), 1 Row(s), Female, Right Angle, 0.012 inch Pitch, Surface Mount Terminal, Locking, Beige Insulator, LEAD FREE	Card Edge Connector, 33 Contact(s), 1 Row(s), Female, Right Angle, 0.012 inch Pitch, Surface Mount Terminal, Locking, Beige Insulator, LEAD FREE	Card Edge Connector, 39 Contact(s), 1 Row(s), Female, Right Angle, 0.012 inch Pitch, Surface Mount Terminal, Locking, Beige Insulator, LEAD FREE	Card Edge Connector, 45 Contact(s), 1 Row(s), Female, Right Angle, 0.012 inch Pitch, Surface Mount Terminal, Locking, Beige Insulator, LEAD FREE	Card Edge Connector, 23 Contact(s), 1 Row(s), Female, Right Angle, 0.012 inch Pitch, Surface Mount Terminal, Locking, Beige Insulator, LEAD FREE	Card Edge Connector, 51 Contact(s), 1 Row(s), Female, Right Angle, 0.012 inch Pitch, Surface Mount Terminal, Locking, Beige Insulator, LEAD FREE	Card Edge Connector, 17 Contact(s), 1 Row(s), Female, Right Angle, 0.012 inch Pitch, Surface Mount Terminal, Locking, Beige Insulator, LEAD FREE	Card Edge Connector, 27 Contact(s), 1 Row(s), Female, Right Angle, 0.012 inch Pitch, Surface Mount Terminal, Locking, Beige Insulator, LEAD FREE
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	ROHS AND ELV COMPLIANT	ROHS AND ELV COMPLIANT	ROHS AND ELV COMPLIANT	ROHS AND ELV COMPLIANT	ROHS AND ELV COMPLIANT	ROHS AND ELV COMPLIANT	ROHS AND ELV COMPLIANT	ROHS AND ELV COMPLIANT
Board mount options	FITTING NAIL	FITTING NAIL	FITTING NAIL	FITTING NAIL	FITTING NAIL	FITTING NAIL	FITTING NAIL	FITTING NAIL
body width	0.077 inch	0.077 inch	0.077 inch	0.077 inch	0.077 inch	0.077 inch	0.077 inch	0.077 inch
subject depth	0.173 inch	0.173 inch	0.173 inch	0.173 inch	0.173 inch	0.173 inch	0.173 inch	0.173 inch
body length	0.346 inch	0.488 inch	0.559 inch	0.63 inch	0.37 inch	0.701 inch	0.299 inch	0.417 inch
Connector type	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	80 mΩ	80 mΩ	80 mΩ	80 mΩ	80 mΩ	80 mΩ	80 mΩ	80 mΩ
Contact style	SINGLE PRONG	SINGLE PRONG	SINGLE PRONG	SINGLE PRONG	SINGLE PRONG	SINGLE PRONG	SINGLE PRONG	SINGLE PRONG
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Dielectric withstand voltage	250VAC V	250VAC V	250VAC V	250VAC V	250VAC V	250VAC V	250VAC V	250VAC V
Durability	20 Cycles	20 Cycles	20 Cycles	20 Cycles	20 Cycles	20 Cycles	20 Cycles	20 Cycles
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
maximum insertion force	ZIF N	ZIF N	ZIF N	ZIF N	ZIF N	ZIF N	ZIF N	ZIF N
Insulation resistance	50000000 Ω	50000000 Ω	50000000 Ω	50000000 Ω	50000000 Ω	50000000 Ω	50000000 Ω	50000000 Ω
Insulator color	BEIGE	BEIGE	BEIGE	BEIGE	BEIGE	BEIGE	BEIGE	BEIGE
insulator material	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Plug contact pitch	0.012 inch	0.012 inch	0.012 inch	0.012 inch	0.012 inch	0.012 inch	0.012 inch	0.012 inch
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
PCB row number	2	2	2	2	2	2	2	2
Number of rows loaded	1	1	1	1	1	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	4.1402 mm	4.1402 mm	4.1402 mm	4.1402 mm	4.1402 mm	4.1402 mm	4.1402 mm	4.1402 mm
Plating thickness	8u inch	8u inch	8u inch	8u inch	8u inch	8u inch	8u inch	8u inch
Rated current (signal)	0.2 A	0.2 A	0.2 A	0.2 A	0.2 A	0.2 A	0.2 A	0.2 A
Guideline	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	0.3 mm	0.3 mm	0.3 mm	0.3 mm	0.3 mm	0.3 mm	0.3 mm	0.3 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	21	33	39	45	23	51	17	27
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Evacuation force-minimum value	ZIF N	ZIF N	ZIF N	ZIF N	ZIF N	ZIF N	ZIF N	ZIF N
Maker	Molex	Molex	-	-	Molex	Molex	Molex	Molex
