SPECIFICATIONS
Current rating:
Contact material:
Contact plating:
Insulator material:
Insulation resistance:
Withstanding:
Housing material:
5 amps
Phosphor bronze
Gold
PBT +glass fiber, UL94V-0
1,000 megohms min. at 500VDC
1,000VAC for 1 min.
Steel shell, tin plated
A
B
C
C
D
NOTE:
Add 3.5 to J for M 3.5 Thread
Dimensions
Pos.
A
B
C
14 12.96 25.2 36.0
24 23.76 36.0 46.8
36 36.72 48.9 59.7
50 51.84 64.1 74.9
D
43.9
54.7
67.7
82.8
D
E
F
RoHS compliant
Rev.
Description
Series
MRCXX
Miniature Centronics
connector XX=
14 (except 02, 03, 04, 07),
24 (except 02, 03, 04)
36 (except 03)
50
Gender
X
M=Male
F=Female
FS=Female
with spring
latch
Type
XX
01=Straight PCB mount
02=IDC metal
03=IDC plastic
04=Solder type
05=R/A PCB mount
07=Flat cable
08=Surface mount
Face Options
X
A=.120” thru hole (01 02 04
only)
E=4-40 inserts
D=Notch ears (male only)
J=Jackscrew (01 & 08)
N=No option
PCB Options 05 only
X
[Blank]=No option
A=.120” thru hole
E=4-40 inserts
B=Board Locks
Options
E
XX
15GD=15μ” gold
30GD=30μ” gold
BK=Black insulator
HM=Metal hood (02, 03, 04)
HP=Plastic hood (02, 03, 04)
(add R for right angle hood)
F
Date
Approved
Drawing
Name
Approved Howard
Checked Lizzy
Drawn Tina
0.0 ± 0.35
Date
08/10/99
08/10/99
08/10/99 Part No.:
Central Components Manufacturing
440 Lincoln Blvd., Middlesex, New Jersey 08846
Phone 732 469-5720 888 288-5152 Fax 732 469-1919
G
MRCXX-F-01-J-X-XX
7
8
9
0.00 ± 0.20 Angles ± 3’
UNIT: mm
5
6

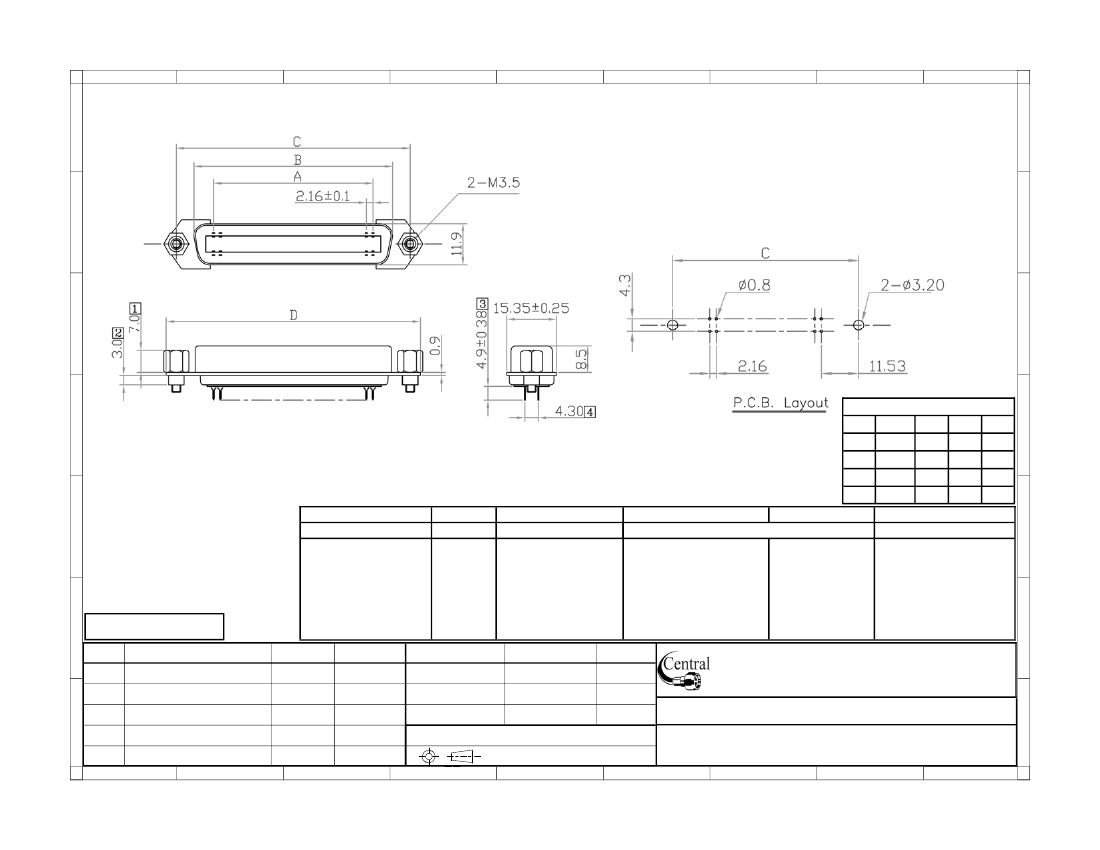

Description: Miniature female Centronics ribbon connector, right-
