218.500 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> 218.500

Preview

218.500: DescriptionElectric Fuse, Time Lag Blow, 0.5A, 250VAC, 35A (IR), Supplemental, Inline/holder, 5x20mm,; CategoryCircuit protection Circuit protection; File Size212KB，2 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com; Environmental Compliance

Download Datasheet Parametric View All

218.500 Overview

Electric Fuse, Time Lag Blow, 0.5A, 250VAC, 35A (IR), Supplemental, Inline/holder, 5x20mm,

218.500 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
ECCN code	EAR99
Fusing characteristics	TIME LAG
body height	20 mm
Body length or diameter	5.2 mm
Circuit protection type	ELECTRIC FUSE
Fuse type	Supplemental
Fuse size	5x20mm
Joule integral nominal	2 J
Installation features	INLINE/HOLDER
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
method of packing	BULK; TAPE AND REEL
physical size	5.2mm x 20mm
Pre-discharge rating	2.825 A2/s
Rated breaking capacity	35 A
Rated current	0.5 A
Rated voltage	250 V
Rated voltage (AC)	250 V
Guideline	CCC; CE; CSA; IEC; KTL; SEMKO; UL
resistance	0.37 Ω
surface mount	NO
Terminal shape	END CAP
Base Number Matches	1

Preview

Download Datasheet

View All

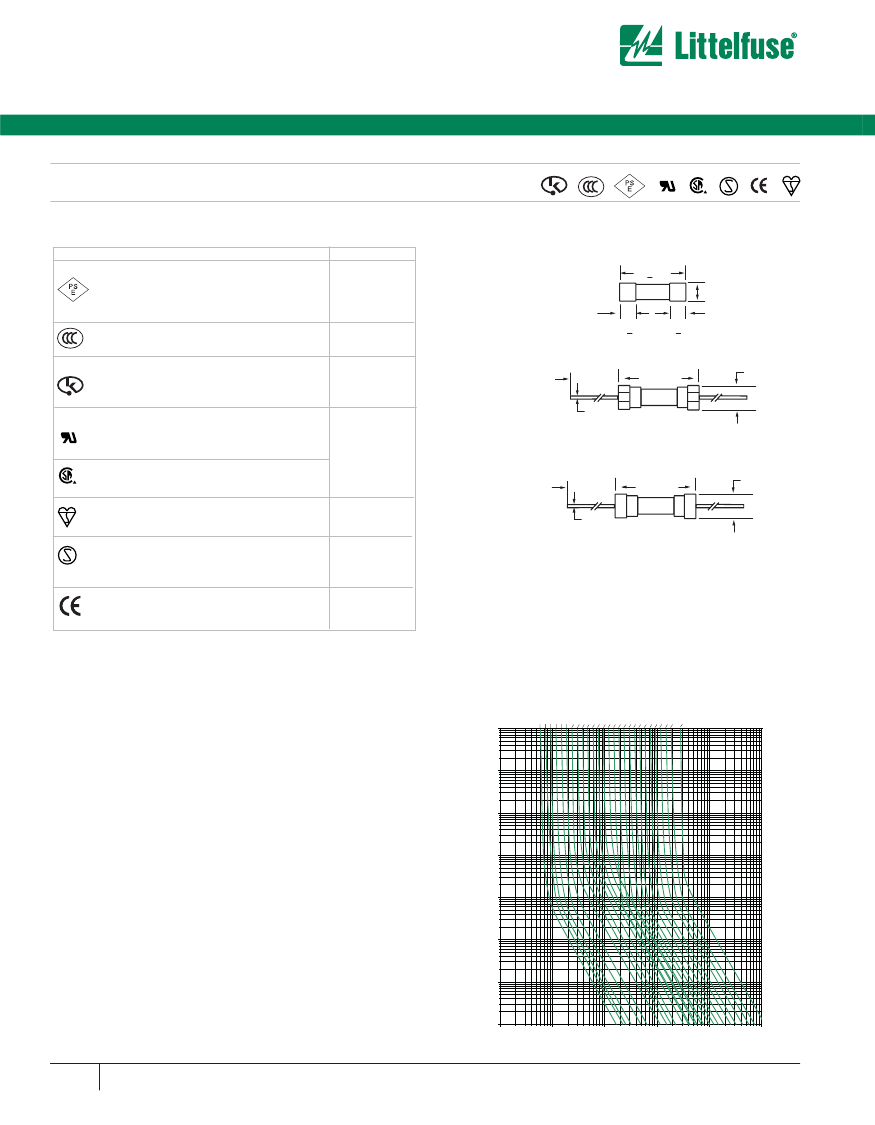

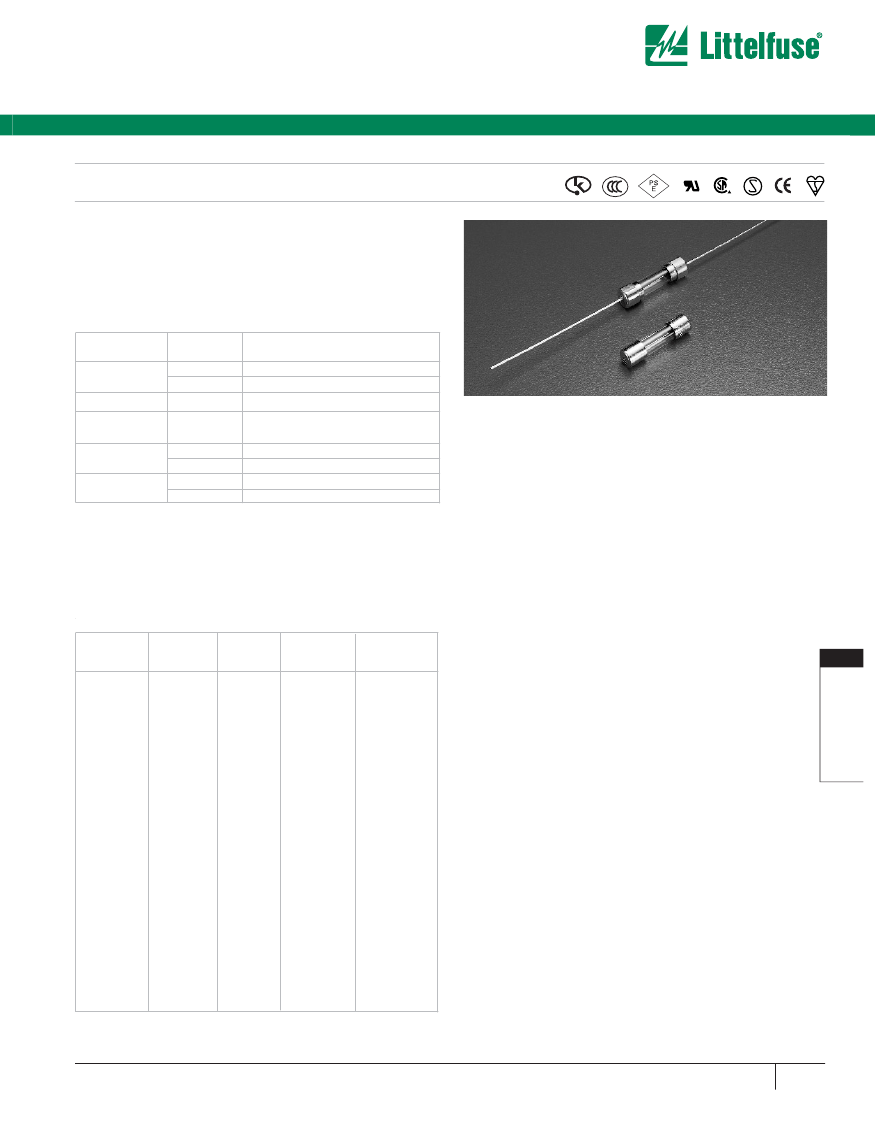

Axial Lead and Cartridge Fuses

Designed to IEC Standard

5 x 20 mm

Time Lag Fuse (Slo-Blo ) Fuse 218 Series

®

• Designed to International (IEC) Standards for use globally.

• Meets the IEC 60127-2, Sheet 3 specification for Time Lag Fuses.

• Available in Cartridge and Axial Lead Form.

• Available in ratings of 0.032 to 15 amperes.

ELECTRICAL CHARACTERISTICS (218 Series):

% of Ampere

Rating

150%

210%

275%

400%

1000%

Ampere

Rating

.032 – 6.3

8 - 15

.032 – 15

.032 – .100

.125 – 15

.032 – .100

.125 – 15

.032 – .100

.125 – 15

Opening

Time

60 minutes,

Minimum

30 minutes,

Minimum

2 minutes,

Maximum

0.2 sec.,

Min.;

10 sec.

Max.

0.6 sec.,

Min.;

10 sec.

Max.

.04 sec.,

Min.;

3 sec.

Max.

.15 sec.,

Min.;

3 sec.

Max.

.01 sec.,

Min.;

0.3 sec.

Max.

0.02 sec.,

Min.;

0.3 sec.

Max.

ENVIRONMENTAL SPECIFICATIONS:

Operating temperature:

-55˚C to 125˚C

Thermal Shock:

MIL-STD-202F Method 107G, Test Condition B: (5

cycles –65°C to +125°C)

Vibration:

MIL-STD-202F Method 201A

Humidity:

MIL-STD-202F Method 103B, Test Condition A. high relative

humidity (95%) and elevated temperature (40°C) for 240 hours.

Salt Spray:

MIL-STD-202F Method 101D, Test Condition B

INTERRUPTING RATINGS:

35 amperes or 10 x rated current;

(whichever is greater) to a maximum 100A @ 250 VAC, unity power factor.

PHYSICAL SPECIFICATIONS:

Material:

Body: Glass

Cap: Nickel Plated Brass

Leads: Tin Plated Copper

Terminal Strength:

MIL-STD-202F Method 211A,

Test Condition A

Solderability:

Reference IEC 60127 Second Edition 2003-01 Annex A

Terminal strength:

MIL-STD-202F Method 211A, Test Condition A

11

Product Marking:

Cap 1: current and voltage rating.

Cap 2: Agency approval markings.

Packaging:

Available in Bulk (V=5, H=100, M=1000 pcs/pkg) or on

Tape/Reel (MRET1=1000 pcs/reel).

ORDERING INFORMATION:

Cartridge

Catalog

Number

Ampere

Rating

Voltage

Rating

Nominal

Resistance

Cold Ohmns

Nominal

Melting I

2

t

A

2

Sec.

218.032

218.040

218.050

218.063

218.080

218.100

218.125

218.160

218.200

218.250

218.315

218.400

218.500

218.630

218.800

218

001.

218

1.25

218

01.6

218

002.

218

02.5

218

3.15

218

004.

218

005.

218

06.3

218

008.

218

010.

218

015.

.032

.040

.050

.063

.080

.100

.125

.160

.200

.250

.315

.400

.500

.630

.800

1

1.25

1.6

2

2.5

3.15

4

5

6.3

8

10

15

250

58.45

35.70

23.30

17.65

12.6

8.95

4.41

2.44

1.60

1.05

0.848

0.535

0.370

0.275

0.073

0.055

0.042

0.032

0.029

0.022

0.017

0.013

0.010

0.0075

0.0059

0.0045

0.0030

0.00297

0.00536

0.00691

0.01169

0.02580

0.04820

0.146

0.219

0.341

0.540

1.110

1.324

2.824

4.674

1.938

3.238

5.648

10.331

14.412

23.224

38.171

69.088

111.008

198.645

341.299

567.696

1403.661

w w w. l i t t e l f u s e . c o m

417

AXIAL LEAD AND

CARTRIDGE FUSES

11
