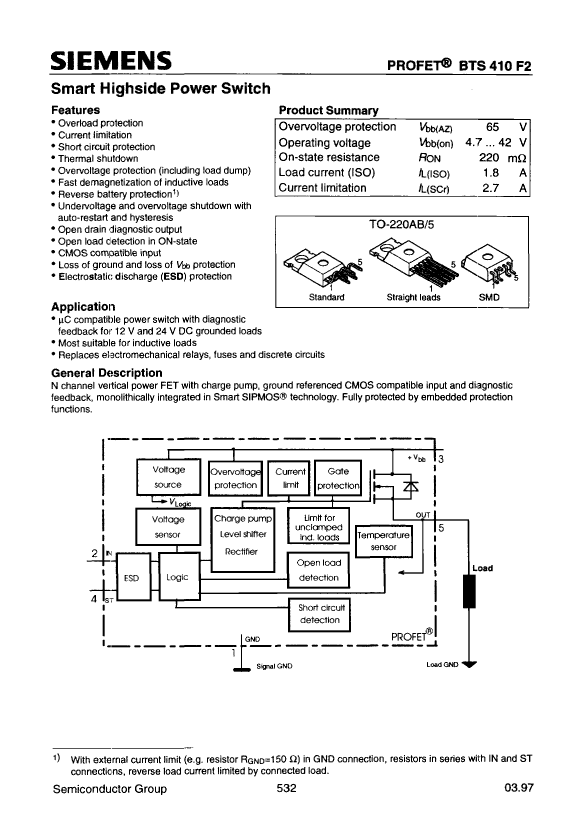

5.5A BUF OR INV BASED PRPHL DRVR, PSSO4, TO-220AB, 5 PIN

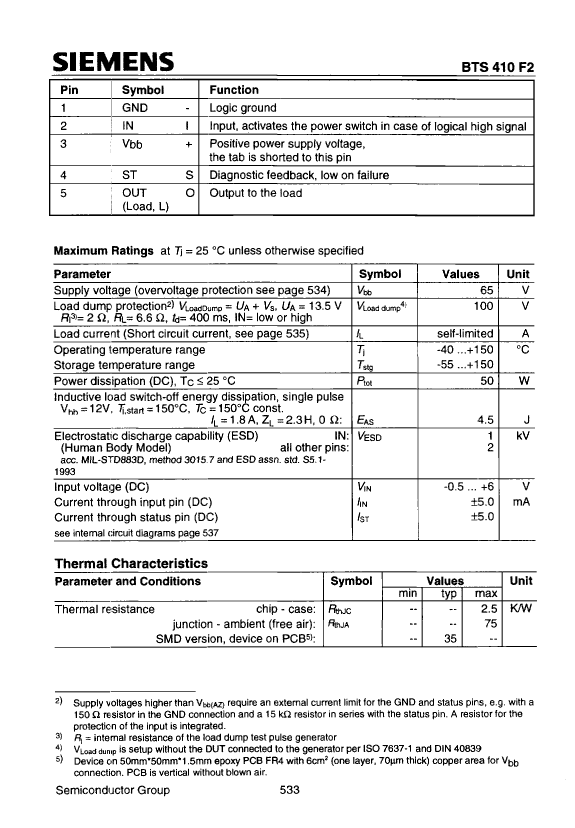

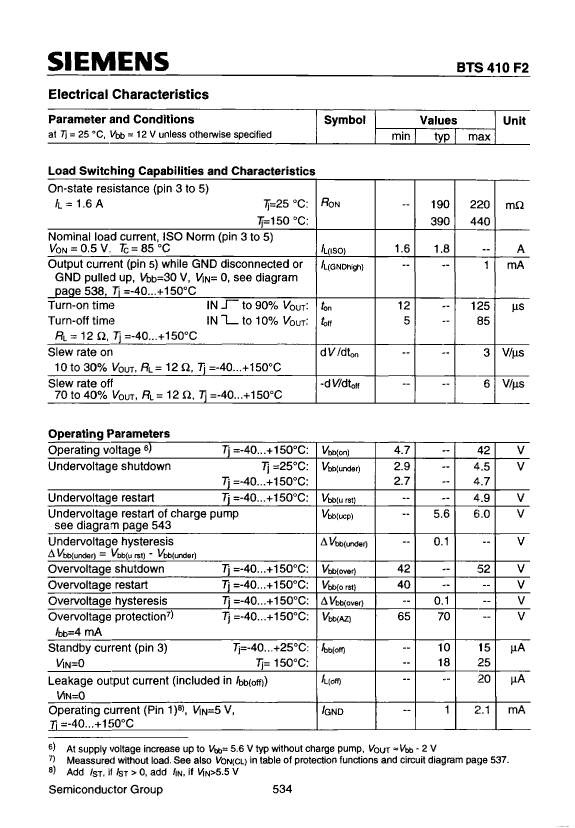

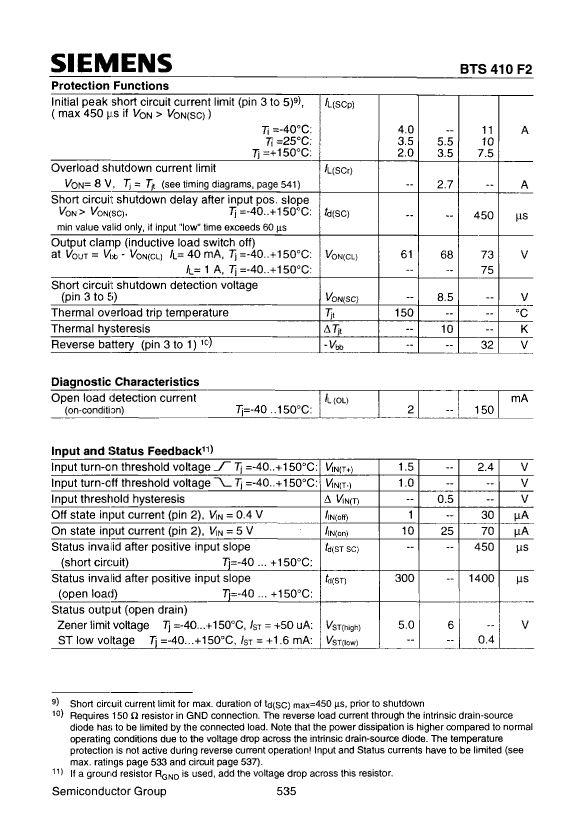

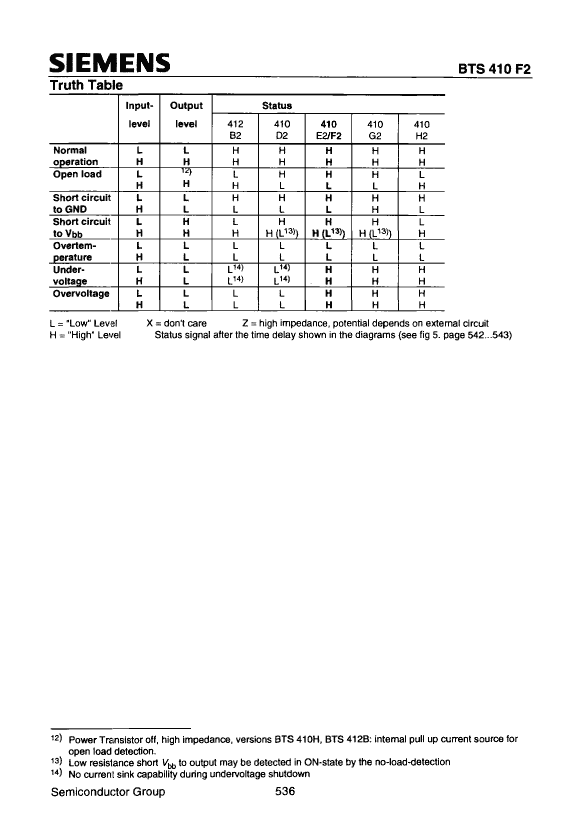

| Parameter Name | Attribute value |
| Maker | SIEMENS |
| Parts packaging code | TO-220AB |
| package instruction | , |
| Contacts | 3 |
| Reach Compliance Code | unknown |
| Built-in protection | OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE |
| Input properties | SCHMITT TRIGGER |
| Interface integrated circuit type | BUFFER OR INVERTER BASED PERIPHERAL DRIVER |
| JESD-30 code | R-PSSO-G4 |
| Number of functions | 1 |
| Number of terminals | 4 |
| Output characteristics | OPEN-SOURCE |
| Output current flow direction | SOURCE |
| Nominal output peak current | 5.5 A |
| Output polarity | TRUE |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| Certification status | Not Qualified |
| Maximum slew rate | 2.1 mA |
| Maximum supply voltage | 42 V |
| Minimum supply voltage | 4.7 V |
| Nominal supply voltage | 12 V |
| surface mount | YES |
| technology | MOS |
| Terminal form | GULL WING |
| Terminal location | SINGLE |
| Disconnect time | 85 µs |
| connection time | 125 µs |
| BTS410F2E-3062A | BTS410F2E3043 | BTS410F2E-3043 | BTS410F2E3062A | |
|---|---|---|---|---|
| Description | 5.5A BUF OR INV BASED PRPHL DRVR, PSSO4, TO-220AB, 5 PIN | Buffer/Inverter Based Peripheral Driver, 5.5A, MOS, PSFM5, STRAIGHT, TO-220AB, 5 PIN | 5.5A BUF OR INV BASED PRPHL DRVR, PSFM5, STRAIGHT, TO-220AB, 5 PIN | Buffer/Inverter Based Peripheral Driver, 5.5A, MOS, PSSO4, TO-220AB, 5 PIN |
| Maker | SIEMENS | SIEMENS | SIEMENS | SIEMENS |
| Parts packaging code | TO-220AB | TO-220AB | TO-220AB | TO-220AB |
| Contacts | 3 | 3 | 3 | 3 |
| Reach Compliance Code | unknown | unknown | unknown | unknown |
| Built-in protection | OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE | OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE | OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE | OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE |
| Input properties | SCHMITT TRIGGER | SCHMITT TRIGGER | SCHMITT TRIGGER | SCHMITT TRIGGER |
| Interface integrated circuit type | BUFFER OR INVERTER BASED PERIPHERAL DRIVER | BUFFER OR INVERTER BASED PERIPHERAL DRIVER | BUFFER OR INVERTER BASED PERIPHERAL DRIVER | BUFFER OR INVERTER BASED PERIPHERAL DRIVER |
| JESD-30 code | R-PSSO-G4 | R-PSFM-T5 | R-PSFM-T5 | R-PSSO-G4 |
| Number of functions | 1 | 1 | 1 | 1 |
| Number of terminals | 4 | 5 | 5 | 4 |
| Output characteristics | OPEN-SOURCE | OPEN-SOURCE | OPEN-SOURCE | OPEN-SOURCE |
| Output current flow direction | SOURCE | SOURCE | SOURCE | SOURCE |
| Nominal output peak current | 5.5 A | 5.5 A | 5.5 A | 5.5 A |
| Output polarity | TRUE | TRUE | TRUE | TRUE |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | FLANGE MOUNT | FLANGE MOUNT | SMALL OUTLINE |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum slew rate | 2.1 mA | 2.1 mA | 2.1 mA | 2.1 mA |
| Maximum supply voltage | 42 V | 42 V | 42 V | 42 V |
| Minimum supply voltage | 4.7 V | 4.7 V | 4.7 V | 4.7 V |
| Nominal supply voltage | 12 V | 12 V | 12 V | 12 V |
| surface mount | YES | NO | NO | YES |
| technology | MOS | MOS | MOS | MOS |
| Terminal form | GULL WING | THROUGH-HOLE | THROUGH-HOLE | GULL WING |
| Terminal location | SINGLE | SINGLE | SINGLE | SINGLE |
| Disconnect time | 85 µs | 85 µs | 85 µs | 85 µs |
| connection time | 125 µs | 125 µs | 125 µs | 125 µs |
