38-00-2392: Description2 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC; CategoryThe connector The connector; File Size154KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

38-00-2392 Overview

2 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC

38-00-2392 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknow
Other features	POLARIZED
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN (40)
Contact completed and terminated	TIN (40)
Contact point gender	FEMALE
Contact material	BRASS
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	7690
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	1
Options	GENERAL PURPOSE
Termination type	IDC
Total number of contacts	2
UL Flammability Code	94V-2

Preview

Download Datasheet

View All

This document was generated on 05/19/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA

Part Number:

Status:

Overview:

Description:

0038002398

Active

kk

2.54mm (.100") Pitch KK® Connector, IDT, High Pressure Cat Ear Contact System,

Green ID Stripe, 8 Circuit

Documents:

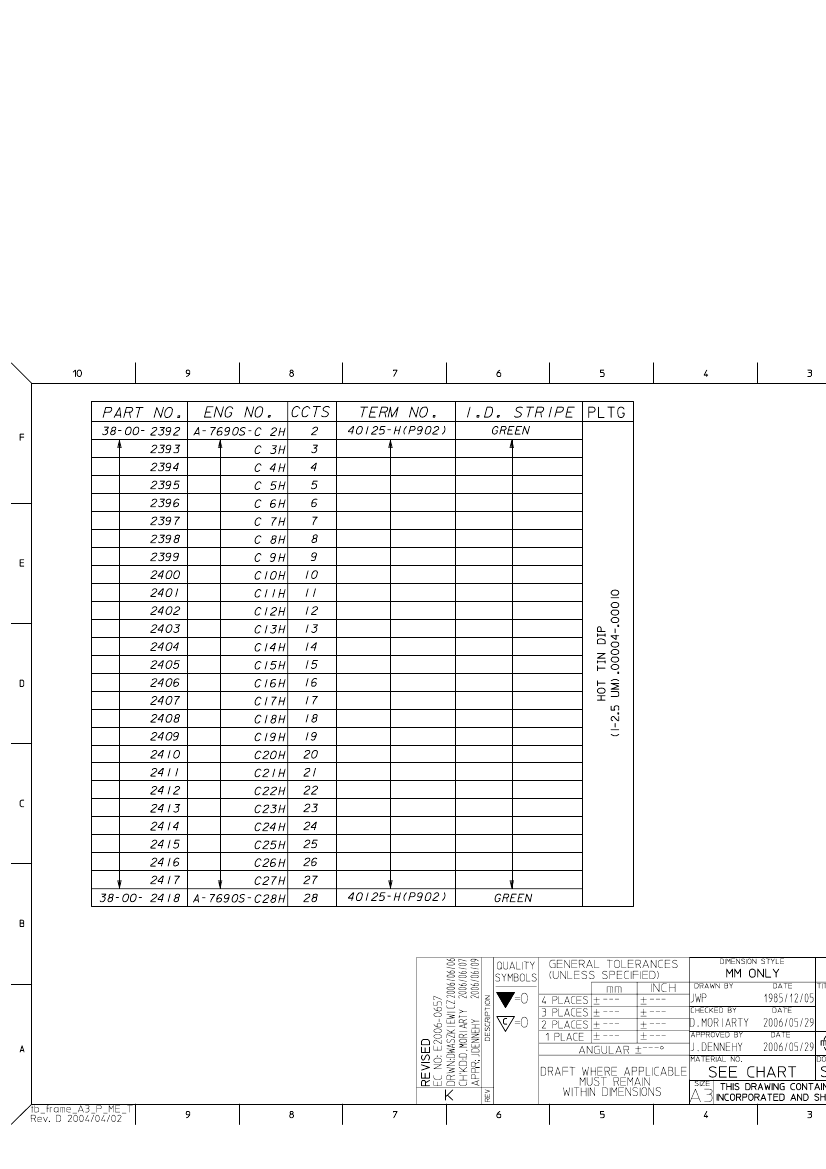

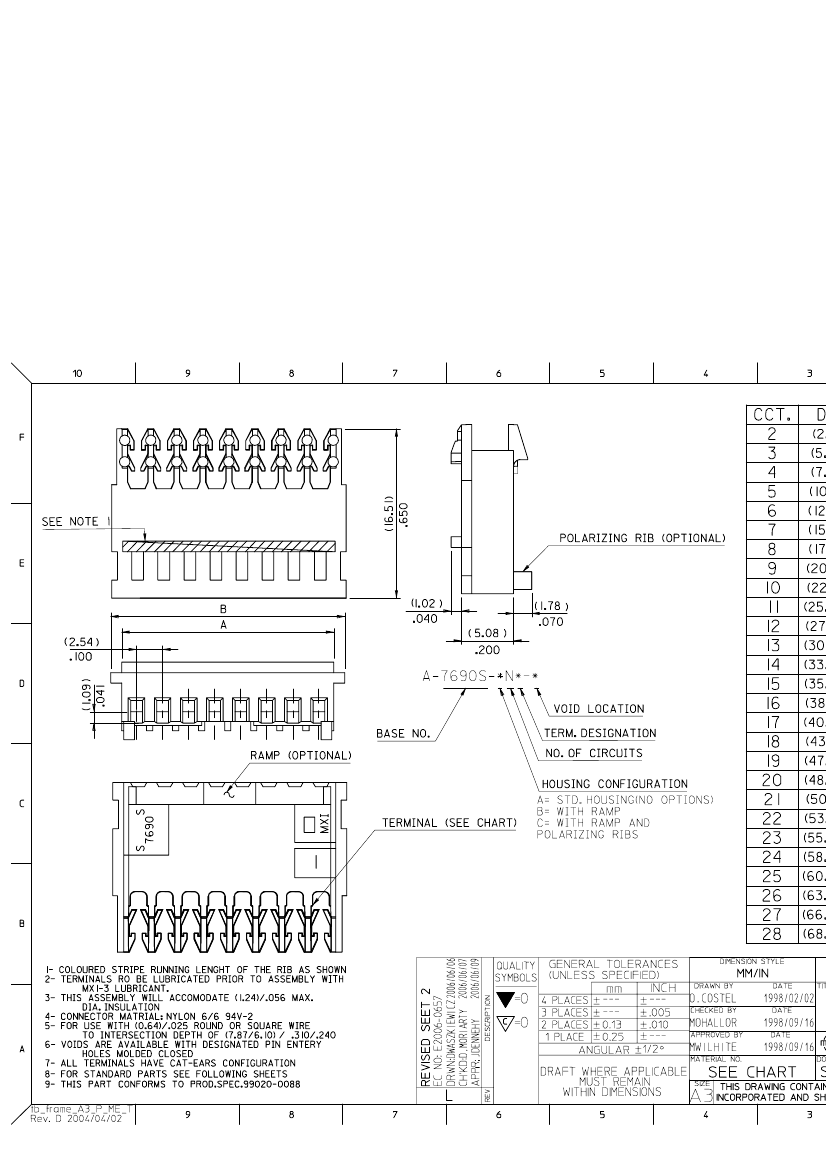

Drawing (PDF)

Product Specification PS-99020-0088 (PDF)

Product Specification PSX-7690S (PDF)

RoHS Certificate of Compliance (PDF)

Agency Certification

UL

E29179

General

Product Family

Series

Comments

Crimp Quality Equipment

Overview

Product Name

IDT and Solder Connectors

7690

Version H

Yes

kk

KK®

Physical

Circuits (Loaded)

Color - Resin

Durability (mating cycles max)

Flammability

Gender

Glow-Wire Compliant

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Temperature Range - Operating

Wire Size AWG

8

Natural

25

94V-2

Female

No

Yes

Brass

Tin

Nylon

1

Bag

No

0.100 In

2.54 mm

40

1.00

40

1.00

0°C to +75°C

24 Stranded, 26 Solid, 26 Stranded Topcoat

EU RoHS

ELV and

Complia

REACH S

Not Revie

Halogen

Status

Not Revi

Need mo

environm

Email pro

For a mu

Complian

Please vi

non-prod

Search

7690Se

Mates

Molex K

and 0.6

Electrical

Current - Maximum per Contact

Voltage - Maximum

2.5A

250V

Solder Process Data

Lead-free Process Capability

Wave Capable (TH only)

Material Info

Old Part Number

7690SC08H

Reference - Drawing Numbers

Product Specification

PS-99020-0088, PSX-7690S
