3.3 V, HCMOS/ TTL, J LEADED, PLASTIC MOLDED
SURFACE MOUNT CRYSTAL CLOCK OSCILLATOR
ASML SERIES
FEATURES:
• Industry standard J-Leaded terminals. • HCMOS output.
• Plastic molded SMD, Reflow capable. • 3.3Vdc operation.
• Extended temperature
• Low current consumption.
-40°C to +85°C option.
• Tristate Enable/Disable.
Pb in high temperature solder
(exempt per RoHS 2002/95/EC Annex (7)).
Compliant
RoHS
14.0 x 8.95 x 4.7 mm
| | | | | | | | | | | | | | |
APPLICATIONS:
• Provide clock signals for microprocessors
and digital circuits.
• Communication equipment, AV and OA equipment
STANDARD SPECIFICATIONS:
PARAMETERS
ABRACON P/N:
Frequency range:
Operating temperature:
Storage temperature:
Overall frequency stability:
Supply voltage (Vdd):
Input current:
ASML Series
1 ~ 106.25 MHz
0° C to + 70° C (see options)
- 55° C to + 125° C
± 100 ppm max. (see options)
3.3Vdc ± 10%
15 mA max. for F
≤
20 MHz
35 mA max. for F
≤
70 MHz
60 mA max. for F
≤
106.25 MHz
40/60 % max. at 1/2Vdd CMOS (see option)
5 ns max.
10 TTL or 15 pFmax.
VOH = 0.9*Vdd min.
VOL = 0.1*Vdd max.
"1" (VIH >= 2.2 V) or open: Oscillation
"0" (VIL < 0.8 V) : Hi Z
10ms max.
±5ppm/year max.
25ps max.
Symmetry:
Rise and fall time (Tr/Tf):
Output load:
Output voltage:
Tri-State function:
Start-up time:
Aging (first year):
Period jitter (1 sigma):
OPTIONS AND PART IDENTIFICATION
(Left blank if standard)
ASML - Frequency -
Operating Temp.
-10°C to +60°C
D
-20°C to +70°C
E
-30°C to +70°C
F
-30°C to +85°C
N
-40°C to +85°C
L
-
-
-
Packaging
Blank
Bulk
T
Tape and Reel
(1000pcs/reel)
Overall Frequency
R
±25ppm
K
±30ppm
C
±50ppm
S
S1
Symmetry
45/55%@1/2Vdd
45/55%@1.4Vdd
ABRACON IS
ISO9001:2008
CERTIFIED
Revised: 12.29.09
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
3.3 V, HCMOS/ TTL, J LEADED, PLASTIC MOLDED
SURFACE MOUNT CRYSTAL CLOCK OSCILLATOR
ASML SERIES

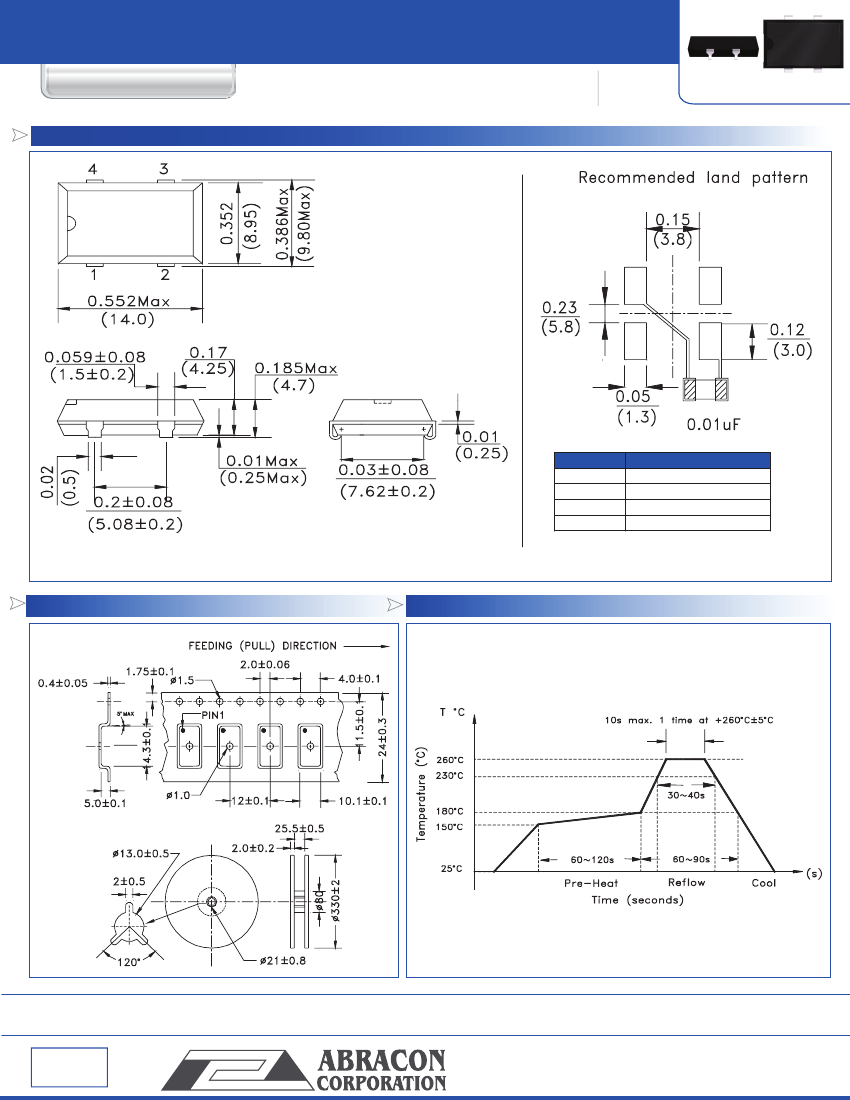

OUTLINE DRAWING:
Pb in high temperature solder
(exempt per RoHS 2002/95/EC Annex (7)).
Compliant
RoHS
14.0 x 8.95 x 4.7 mm
| | | | | | | | | | | | | | |
Dimension : Inch (mm)
PIN
1
2
3
4
FUNCTION
Tristate
GND/Case
Output
Vdd
Note: Recommend using an approximately
0.01uF bypass capacitor between pin 2 and 4.
TAPE AND REEL:
T= tape and reel (1,000pcs/reel)
Dimension : mm
REFLOW PROFILE:
NOTE:
