This document was generated on 05/19/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA
Part Number:
Status:
Overview:
Description:
0039000021
Active
spox_bmi
SPOX™ Crimp Terminal 5194, 18-24 AWG, Phosphor Bronze, Reel
Documents:
Drawing (PDF)
Product Specification PS-5195-004 (PDF)
Product Specification PS-5195-005 (PDF)
Product Specification PS-5195-006 (PDF)
Product Specification PS-5195-007 (PDF)
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Crimp Quality Equipment
Overview
Product Name
Crimp Terminals
5194
Yes
spox_bmi
SPOX™
Physical
Gender
Material - Metal
Material - Plating Mating
Material - Plating Termination
Packaging Type
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Termination Interface: Style
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
Female
Phosphor Bronze
Tin
Tin
Reel
36
0.90
36
0.90
Crimp or Compression
1.30-3.20mm (.051-.126")
18, 20, 22, 24
N/A
EU RoHS
ELV and
Complia
REACH S
Contains
Halogen
Status
Halogen
Need mo
environm
Email pro
For a mu
Complian
Please vi
non-prod
Material Info
Old Part Number
5194PBT
Search
5194Se
Reference - Drawing Numbers
Packaging Specification
Product Specification

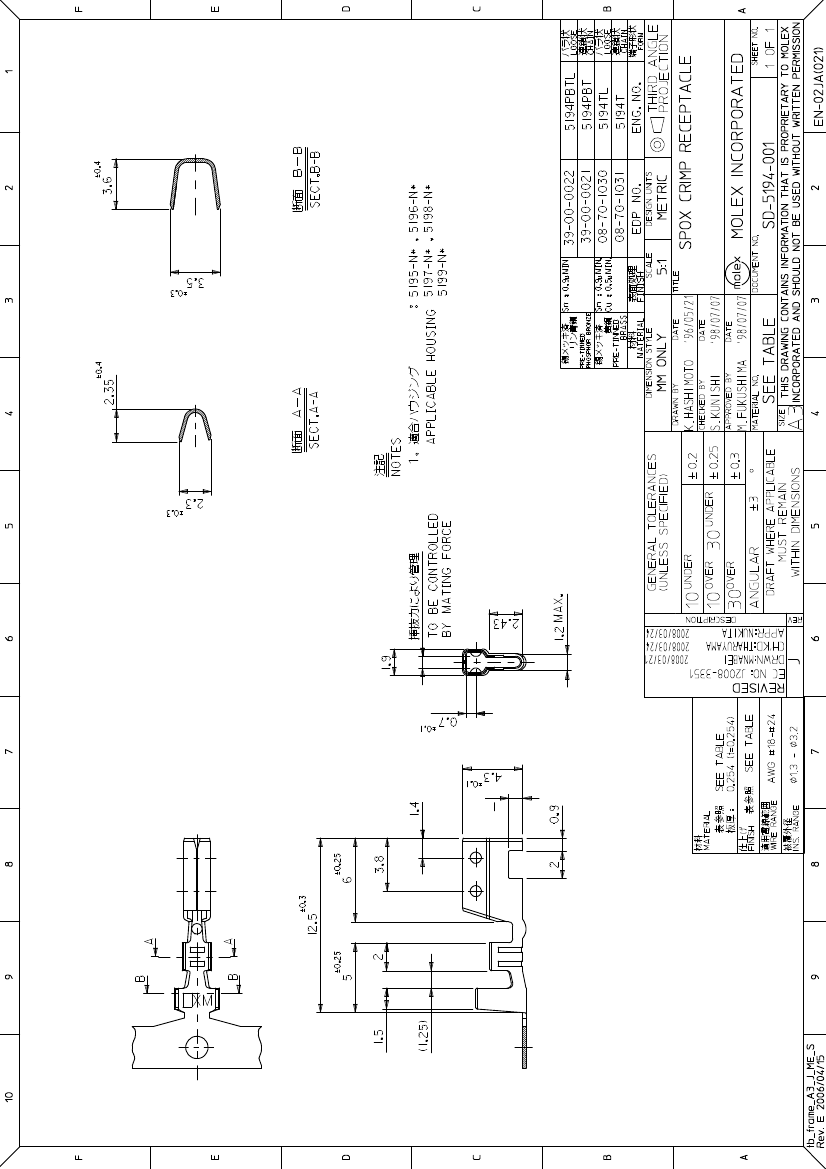

Sales Drawing
SPK-5194-001
PS-5195-004, PS-5195-005, PS-5195-006,
PS-5195-007, RPS-5195-001, RPS-5195-002
SD-5194-001
Use W
5195 ,
Applic
Tooling
found b
Crimp H
contain
Specifi
Global
Descri
FineAd
Applica
3.96mm
Pitch S
Termin
AWG
T2 Term
Tooling
SPOX™
