5267-04A-X datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 5267-04A-X

Preview

5267-04A-X: Description4 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER; CategoryThe connector The connector; File Size90KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

5267-04A-X Overview

4 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER

5267-04A-X Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknow
Connector type	BOARD CONNECTOR

Preview

Download Datasheet

View All

This document was generated on 04/15/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA

Part Number:

Status:

Description:

0099990988

Active

2.50mm (.098") Pitch SPOX™ Wire-to-Board Header, Vertical, Shrouded, 4 Circuits,

Tin (Sn) Plating, with Swaged PC Tails

Documents:

3D Model

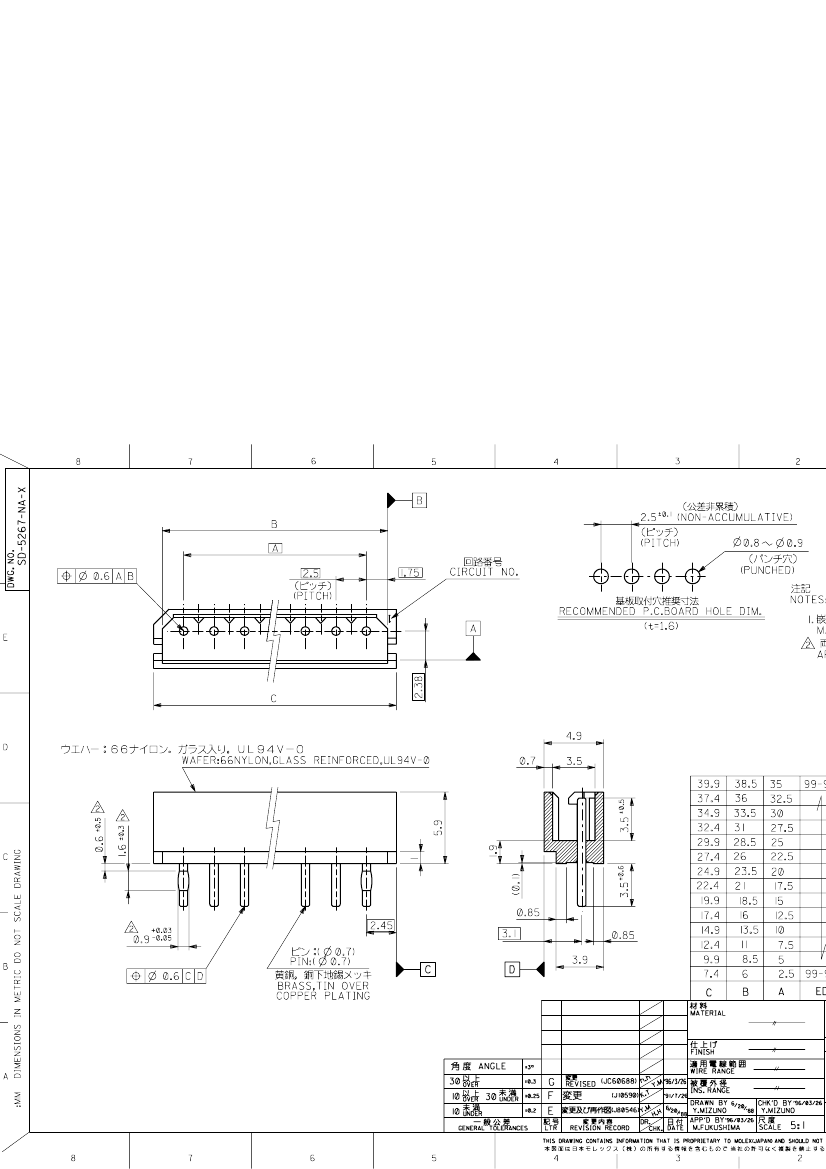

Drawing (PDF)

Product Specification PS-5264-001 (PDF)

RoHS Certificate of Compliance (PDF)

Agency Certification

CSA

UL

LR19980

E29179

General

Product Family

Series

Application

Product Name

PCB Headers

5267

Wire-to-Board

SPOX™

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

No

4

Natural

30

No

94V-0

No

None

Yes

Tin

Nylon

1

Vertical

0.138 In

3.50 mm

No

Yes

0.062 In

1.60 mm

Bag

0.098 In

2.50 mm

160

4

160

4

Yes

No

Fully

No

-40°C to +105°C

Through Hole

EU RoHS

ELV and

Complia

REACH S

Not Revie

Halogen

Status

Not Halo

Need mo

environm

Email pro

For a mu

Complian

Please vi

non-prod

Search

5267Se

Mates

5264 S

Termin

Housin
