Part Number:
Status:
Description:
0039534166
Active
2.54mm (.100") Pitch QF-50™ Receptacle, Vertical, Dual Row, Unloaded Upper
Housing, 0.1µm Gold Contact Plating, 16 Circuits
Documents:
3D Model

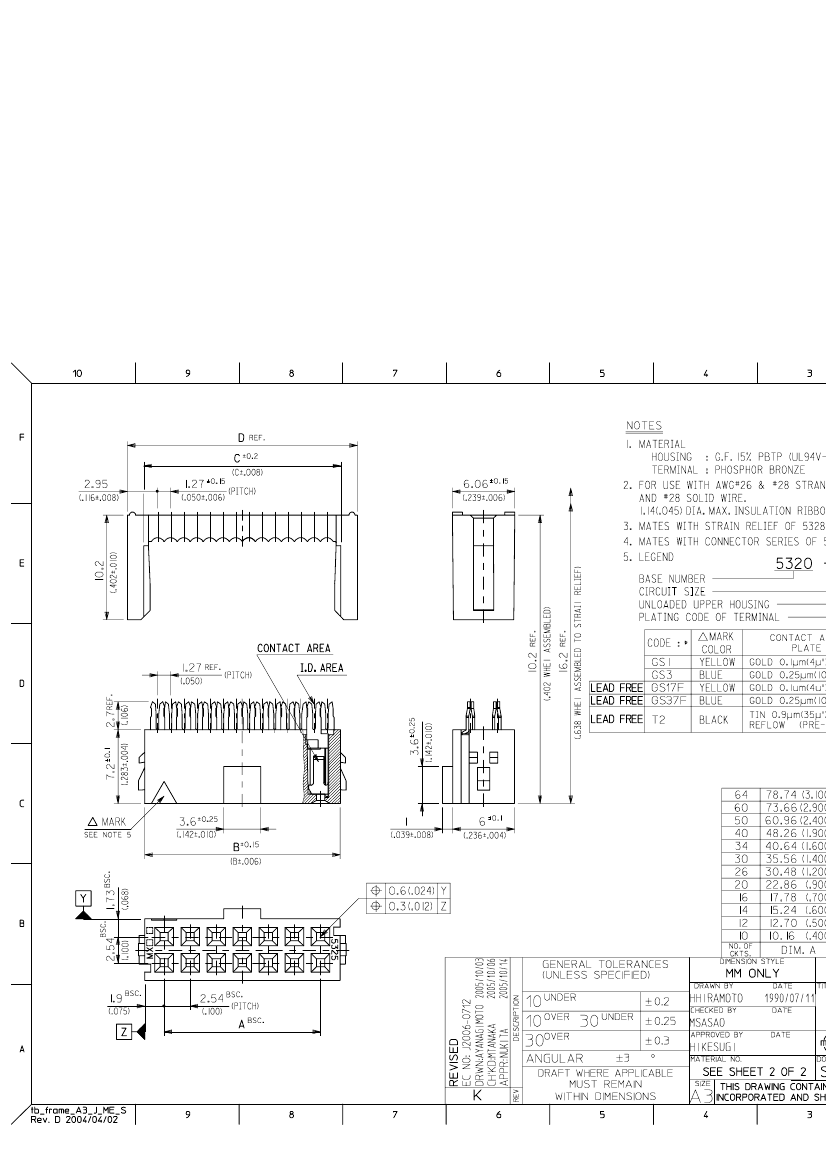

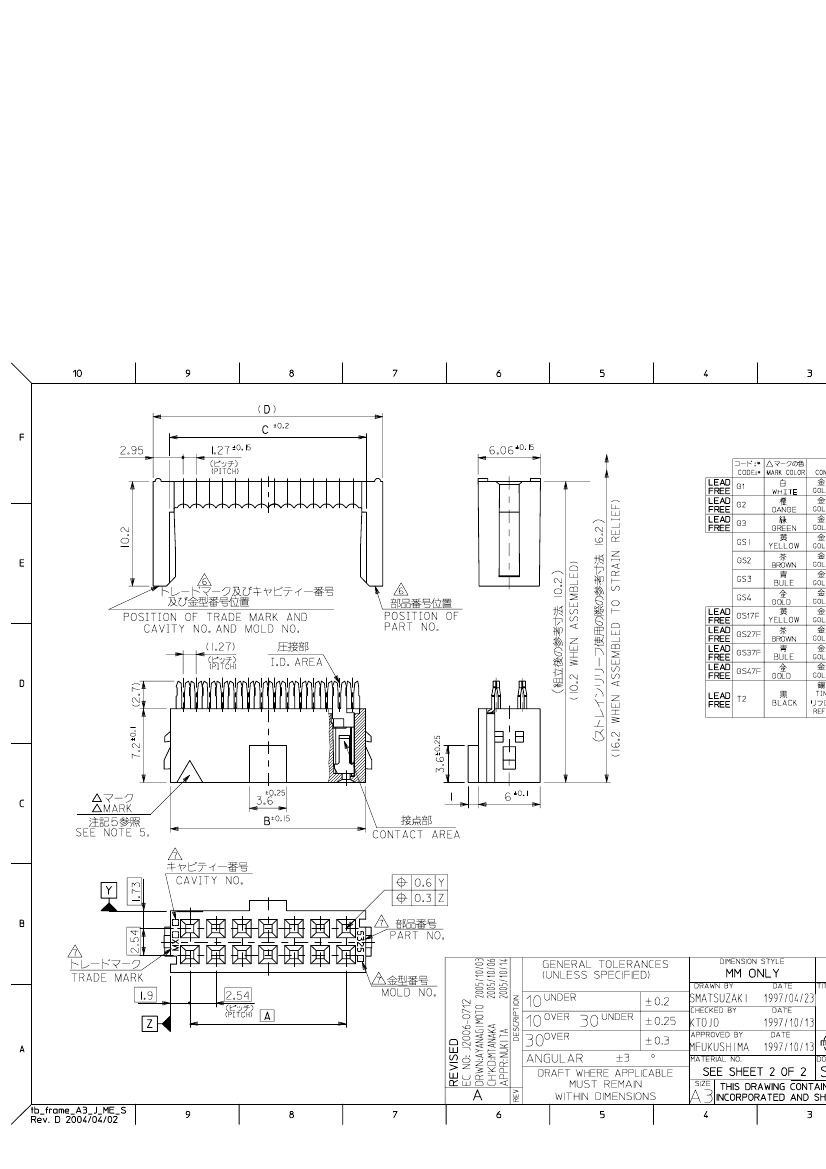

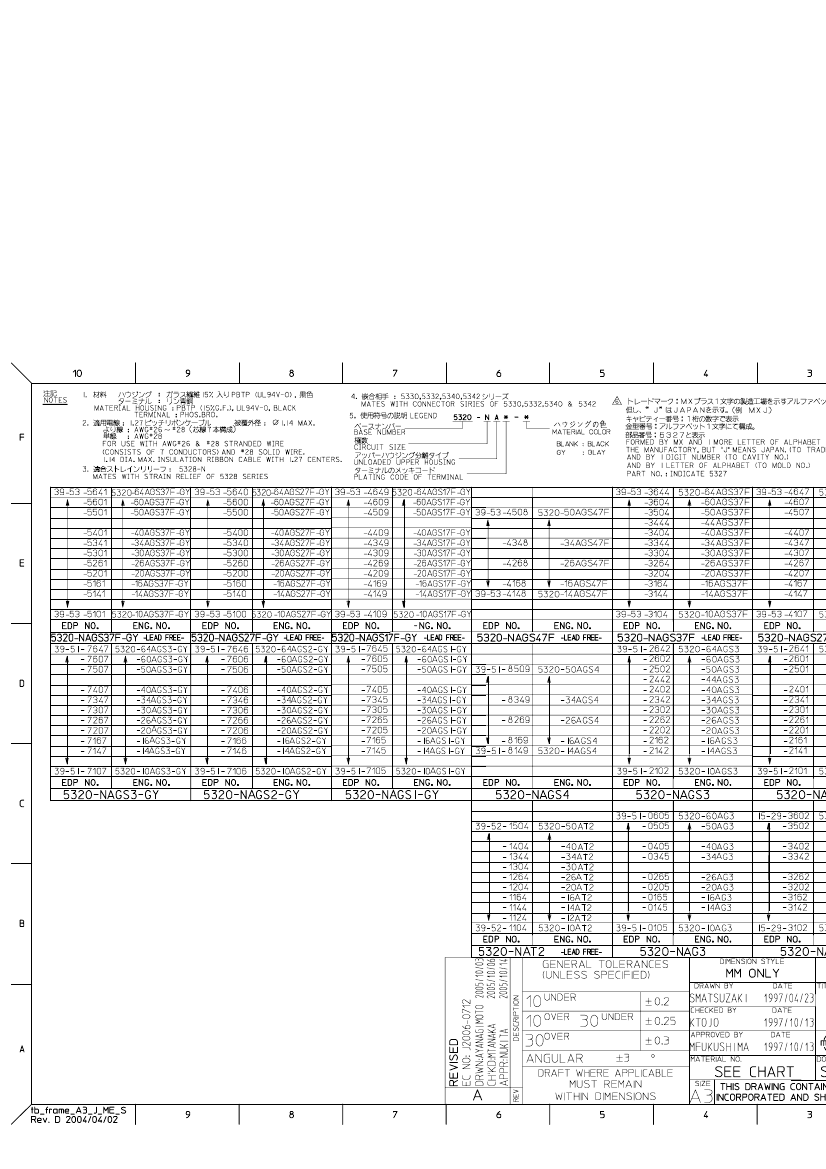

Drawing (PDF)
RoHS Certificate of Compliance (PDF)
Agency Certification
UL
E29179
EU RoHS
ELV and
Complia
REACH S
Not Revie
Halogen
Status
Not Revi
Need mo
environm
General
Product Family
Series
Comments
Component Type
Glow-Wire Compliant
Product Name
Ribbon Cable / Wire Trap Connectors
5320
Unloaded Upper Housing
Housing
No
QF-50™
Email pro
For a mu
Complian
Please vi
non-prod
Physical
Circuits (Loaded)
Color - Resin
Durability (mating cycles max)
Entry Angle
Flammability
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Number of Rows
PCB Locator
PCB Retention
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Polarized to Mating Part
Stackable
Temperature Range - Operating
Wire Insulation Diameter
Wire Size AWG
Wire/Cable Type
16
Black
500
Vertical
94V-0
Yes
Phosphor Bronze
Gold
Tin
2
No
None
Tray
0.050 In
1.27 mm
0.100 In
2.54 mm
0.004
0.10
Yes
No
-40°C to +105°C
1.14mm (.045") max.
26, 28
Ribbon Cable
Search
5320Se
Mates
5330 ,
Use W
5328 S
Electrical
Current - Maximum per Contact
Voltage - Maximum
1A
500V AC
Material Info
Old Part Number
5320-16AGS17F
Reference - Drawing Numbers
Sales Drawing
SD-5320-001, SD-5320-002, SD-5320-007
