0039000430
Active
minifit_jr
4.20mm (.165") Pitch Mini-Fit™ Crimp Terminal, Male, Brass, Gold (Au) Contact
Plating, Lead-free, 18-24 AWG, Reel
Documents:
Drawing (PDF)
Test Summary (PDF)
Product Specification PS-51010-007 (PDF)
Product Specification PS-52034-005 (PDF)
Product Specification PS-5556-001 (PDF)
Product Specification PS-5556-002 (PDF)
Product Specification PS-5556-003 (PDF)
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Crimp Quality Equipment
Overview
Product Name
Crimp Terminals
5558
Yes
minifit_jr
Mini-Fit®
Physical
Durability (mating cycles max)
Gender
Material - Metal
Material - Plating Mating
Material - Plating Termination
Packaging Type
Termination Interface: Style
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
30
Male
Brass
Gold
Tin
Reel
Crimp or Compression
1.30-3.10mm (.051-.122")
18, 20, 22, 24
N/A
EU RoHS
ELV and
Complia
REACH S
Not Revie
Halogen
Status
Not Revi
Need mo
environm
Email pro
For a mu
Complian
Please vi
non-prod
Electrical
Current - Maximum per Contact
Voltage - Maximum
9A
600V
Search
5558Se
Material Info
Old Part Number
5558GS7F
Mates
5556 M
Reference - Drawing Numbers
Product Specification

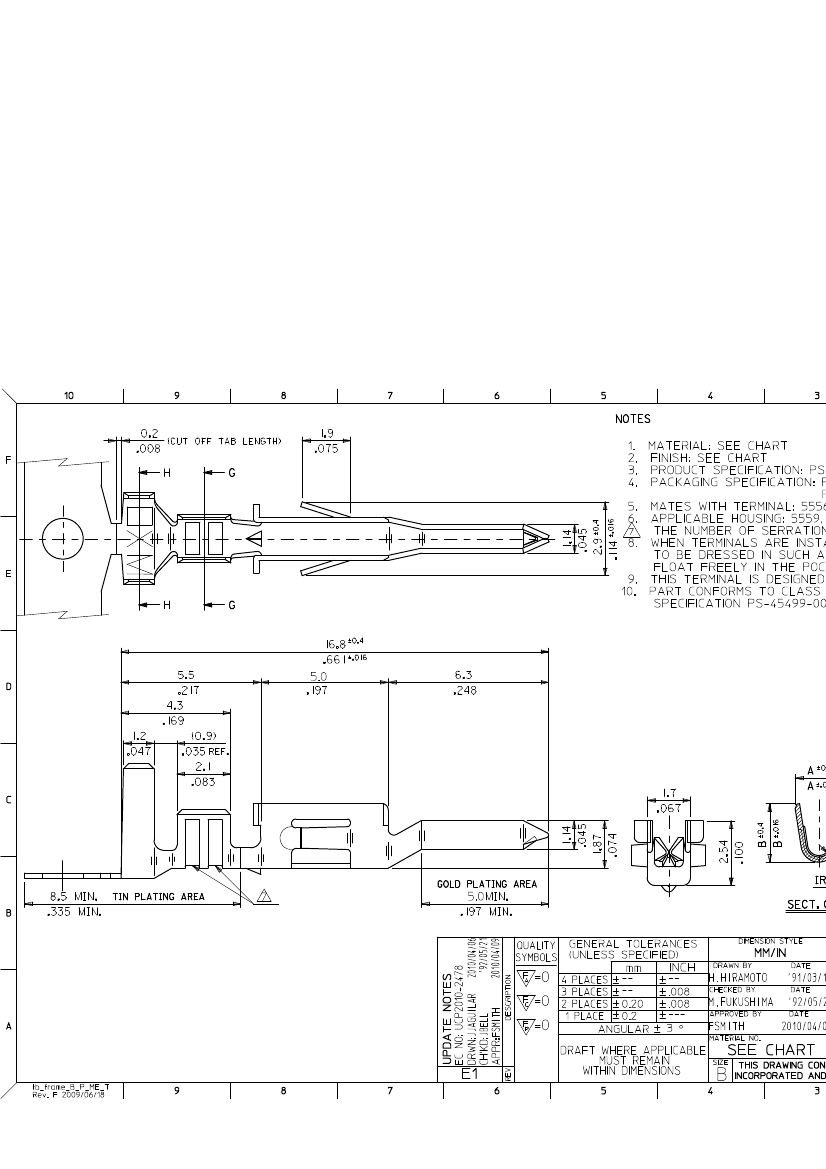

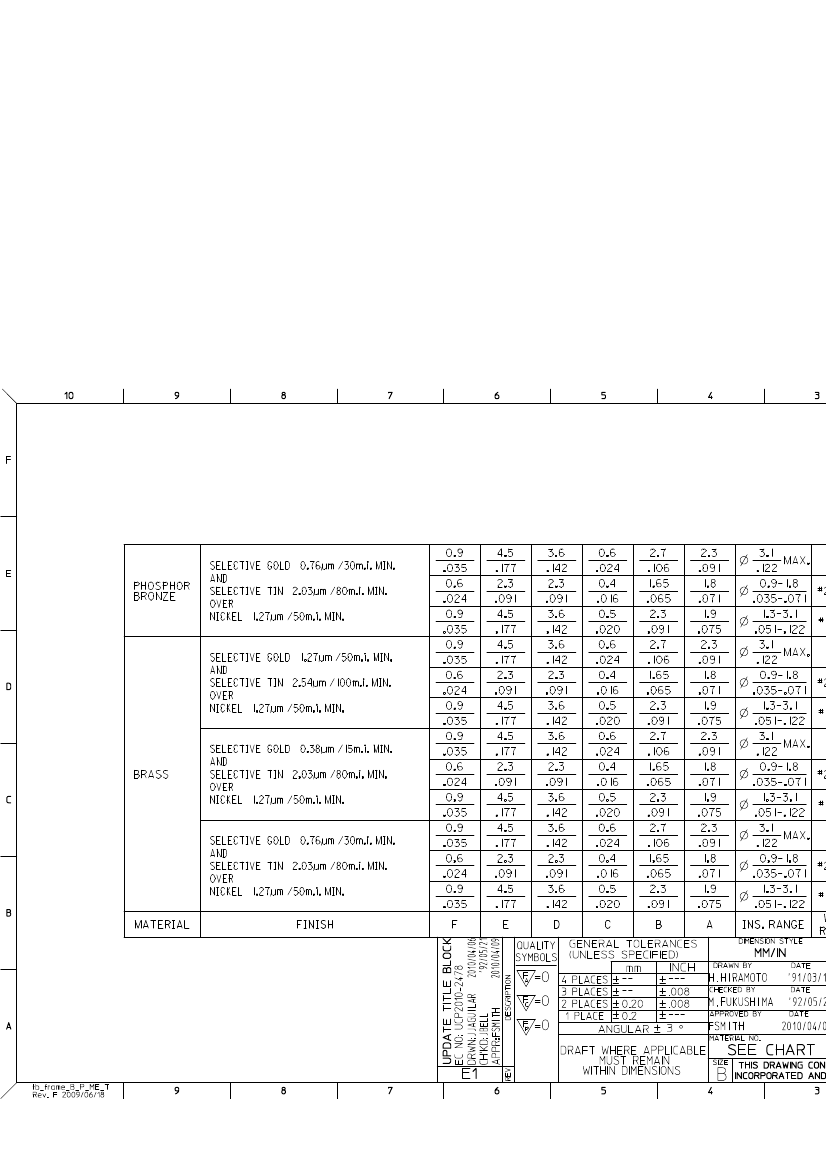

Sales Drawing
Test Summary
PS-51010-007, PS-52034-005, PS-5556-001,
PS-5556-002, PS-5556-003
SD-5558-002
TS-5556-002
Use W
5559 M
Applic
Tooling
found b
Crimp H
contain
Specifi
Global
Descri
FineAd
Applica
Jr.™, M
Crimp T
18-24 A
smaller
T2 Term
