70450-0006 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 70450-0006

70450-0006: Description14 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR; CategoryThe connector The connector; File Size112KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

70450-0006 Overview

14 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR

70450-0006 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknow
body width	0.199 inch
subject depth	0.6 inch
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
contact mode	RECTANGULAR
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	GLASS FILLED POLYESTER
MIL compliance	NO
Manufacturer's serial number	70450
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	2
Options	GENERAL PURPOSE
reliability	COMMERCIAL
Total number of contacts	14

Preview

Download Datasheet

View All

This document was generated on 05/18/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA

Part Number:

Status:

Overview:

Description:

0022552141

Active

cgrid__sl_products

2.54mm (.100") Pitch SL™ Crimp Housing, Dual Row, Version A, Nonpolarized, 14

Circuits

Documents:

3D Model

Packaging Specification (PDF)

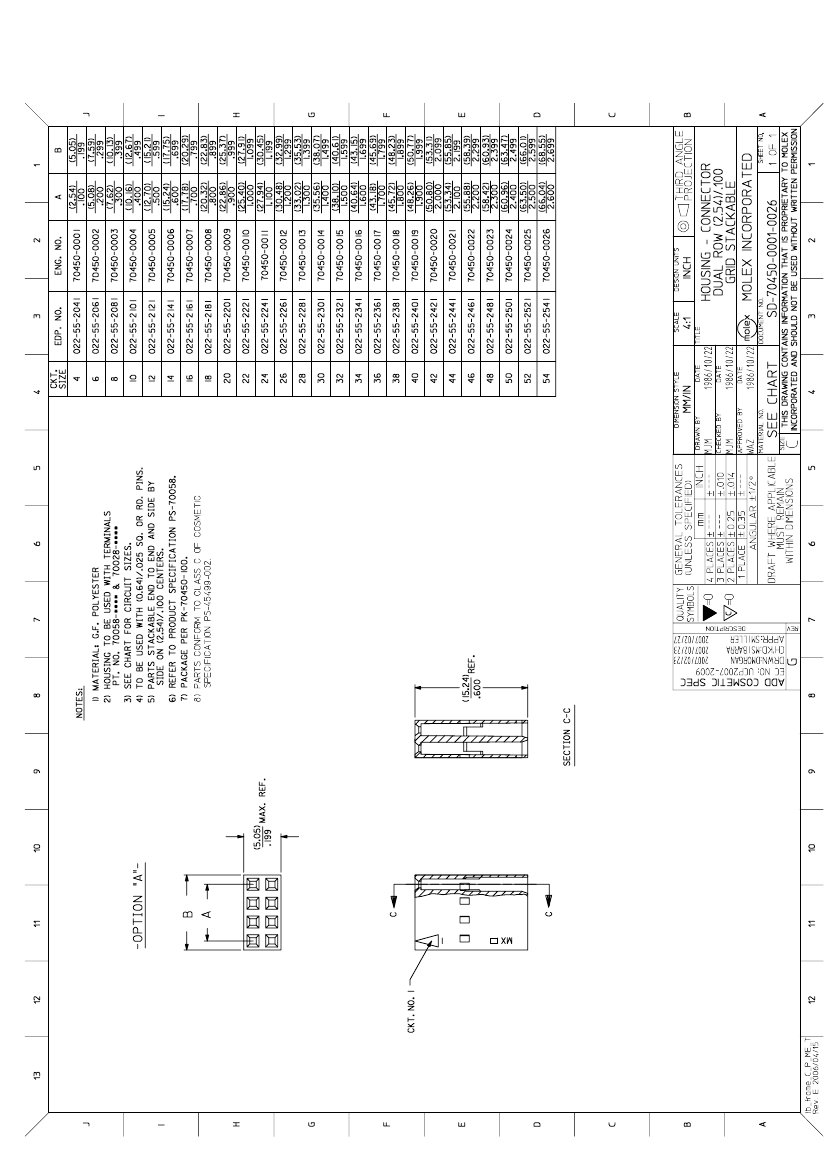

Drawing (PDF)

Product Specification PS-70058 (PDF)

Product Specification PS-70400 (PDF)

RoHS Certificate of Compliance (PDF)

Agency Certification

CSA

LR19980

E29179

General

Product Family

Series

Comments

Overview

Product Name

Crimp Housings

70450

Version A

cgrid__sl_products

SL™

Physical

Breakaway

Circuits (maximum)

Color - Resin

Flammability

Gender

Glow-Wire Compliant

Material - Resin

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Stackable

Temperature Range - Operating

Black

94V-0

Female

Polyester

Bag

0.100 In

2.54 mm

Yes

-40°C to +105°C

EU RoHS

ELV and

Complia

REACH S

Not Revie

Halogen

Status

Not Halo

Need mo

environm

Email pro

For a mu

Complian

Please vi

non-prod

70450S

Material Info

Old Part Number

70450-0006

Mates

8624 ,

71308,

70260

Reference - Drawing Numbers

Packaging Specification

Product Specification

Sales Drawing

Test Summary

PK-70450-100

PS-70058, PS-70400

SD-70450-0001-0026

TS-70058-001

Use W

70058

This document was generated on 05/18/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA
