218.100P: DescriptionElectric Fuse, Time Lag Blow, 0.1A, 250VAC, 250VDC, 35A (IR), Inline/holder, ROHS COMPLIANT; CategoryCircuit protection Circuit protection; File Size364KB，3 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com; Environmental Compliance

Download Datasheet Parametric Compare View All

218.100P Overview

Electric Fuse, Time Lag Blow, 0.1A, 250VAC, 250VDC, 35A (IR), Inline/holder, ROHS COMPLIANT

218.100P Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
Other features	PRE ARCING TIME: OPEN WITHIN 0.01 SEC AT 1000% RATED CURRENT
Fusing characteristics	TIME LAG
body height	20 mm
Body length or diameter	5.2 mm
Circuit protection type	ELECTRIC FUSE
Fuse size	5x20mm
JESD-609 code	e3
Joule integral nominal
Installation features	INLINE/HOLDER
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
physical size	5.2mm x 20mm
Rated breaking capacity	35 A
Rated current	0.1 A
Rated voltage	250 V
Rated voltage (AC)	250 V
Guideline	CCC; CE; CSA; IEC; KTL; SEMKO; SEV; UL; VDE
surface mount	NO
Terminal surface	Tin (Sn)
Terminal shape	END CAP
Disconnect time or delay	0.01 s
Base Number Matches	1

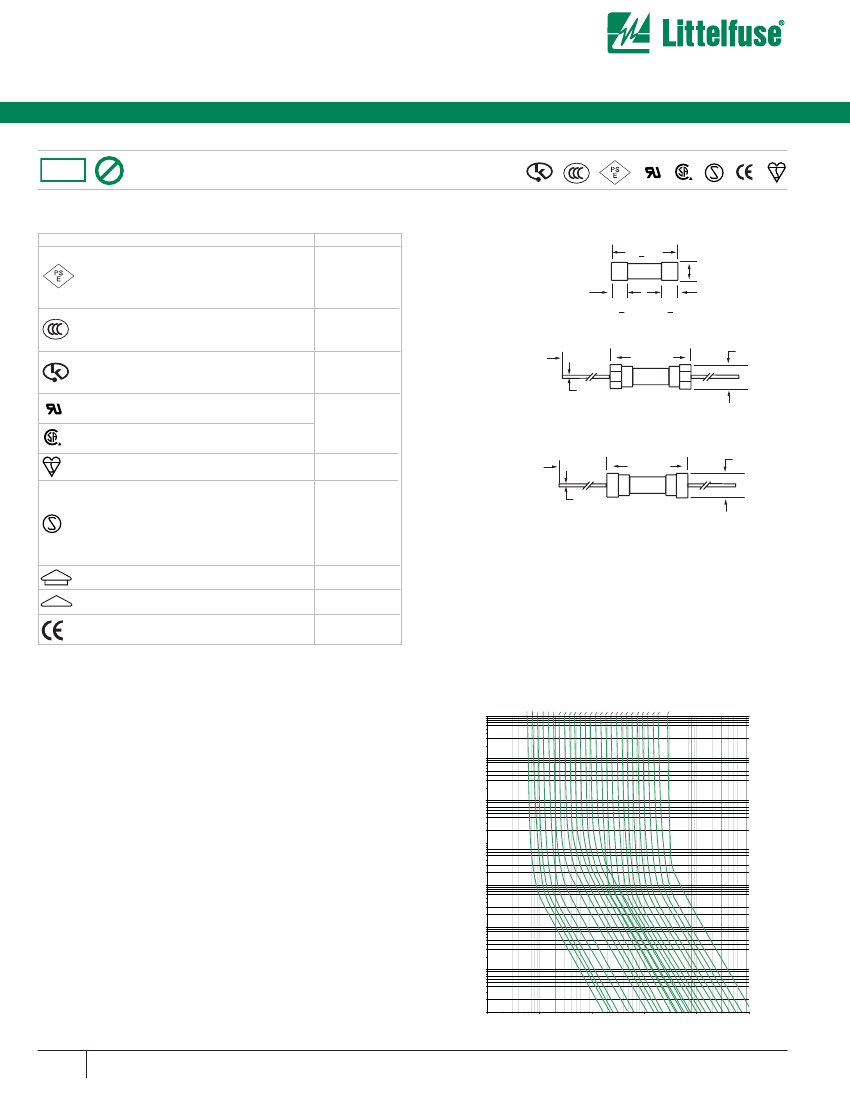

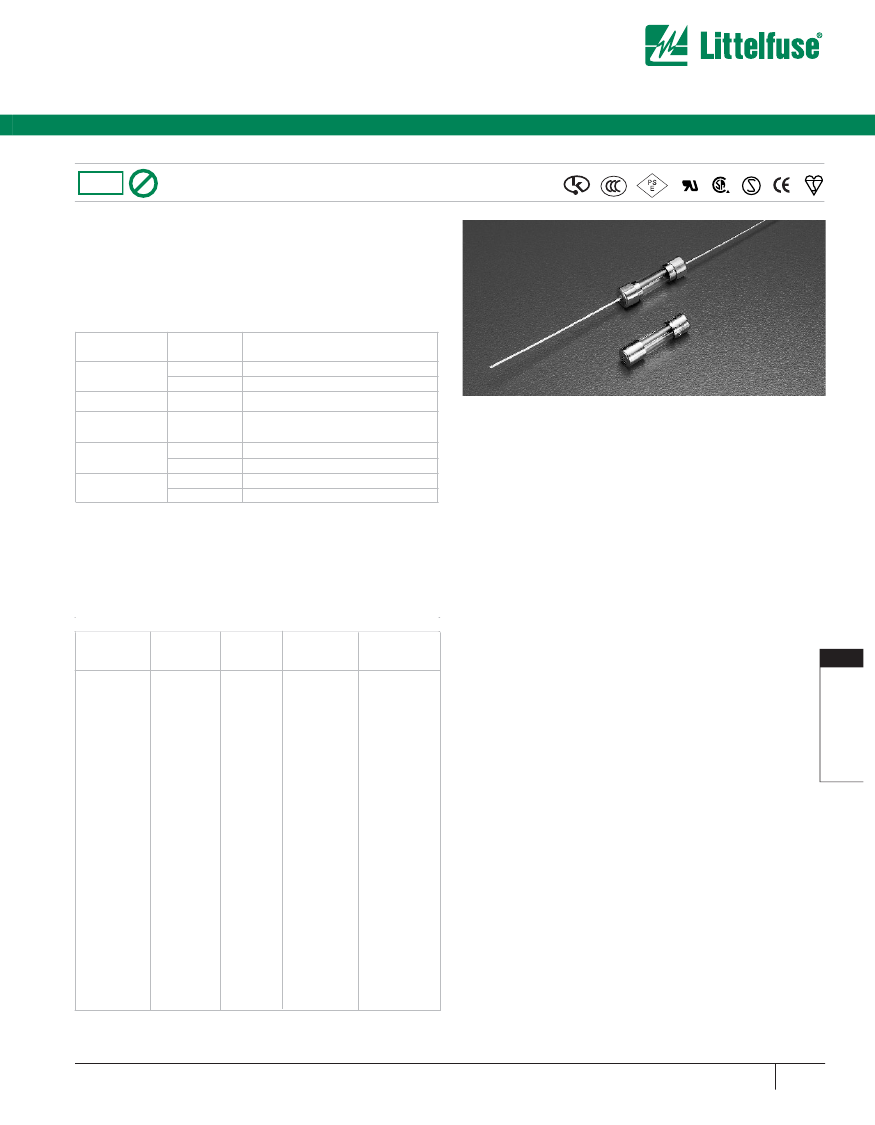

Preview

Download Datasheet

View All

-search-

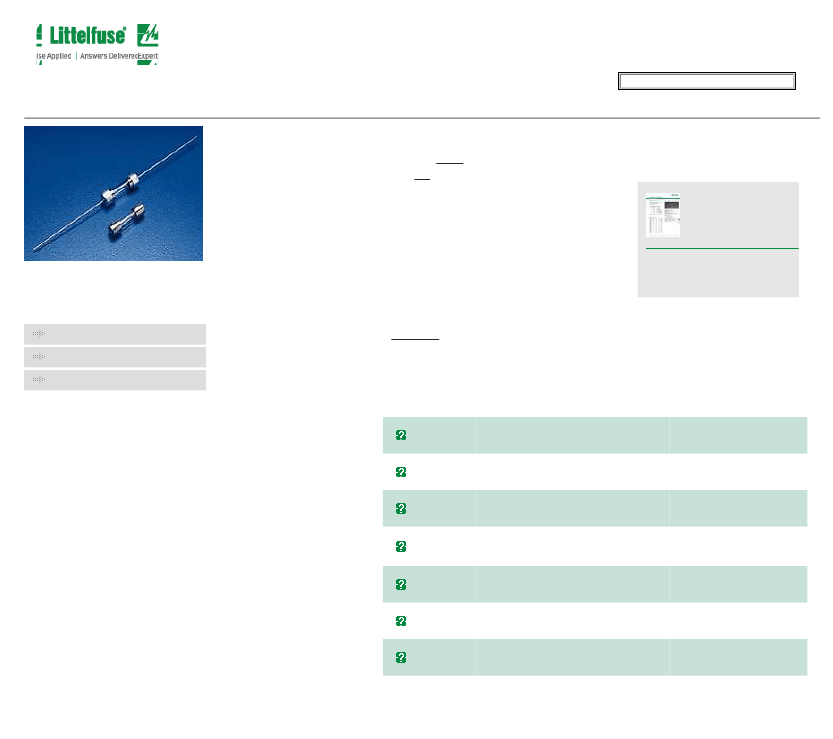

Fuses

Series:

218

218 Series - 5x20mm

Time Lag Glass

Body Cartridge Fuse

Designed to IEC

Specification

●

Environmental Data

●

Time-delay

●

protection

●

of electronic

equipment

●

and

●

appliances

when fuses to International Standards are required.

Replacement fuses for foreign equipment.

●

218P Series Datasheets (Lead-Free)

218P.pdf

(295,519 bytes)

Last Uploaded: March 14, 2006

Environmental Info

ICP Test Reports

China RoHS Reports

218.100P Related Products

	218.100P	218.200P
Description	Electric Fuse, Time Lag Blow, 0.1A, 250VAC, 250VDC, 35A (IR), Inline/holder, ROHS COMPLIANT	Electric Fuse, Time Lag Blow, 0.2A, 250VAC, 250VDC, 35A (IR), Inline/holder, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compli	unknow
Fusing characteristics	TIME LAG	TIME LAG
body height	20 mm	20 mm
Body length or diameter	5.2 mm	5.2 mm
Circuit protection type	ELECTRIC FUSE	ELECTRIC FUSE
JESD-609 code	e3	e3
Installation features	INLINE/HOLDER	INLINE/HOLDER
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
physical size	5.2mm x 20mm	5.2mm x 20mm
Rated breaking capacity	35 A	35 A
Rated current	0.1 A	0.2 A
Rated voltage (AC)	250 V	250 V
Guideline	CCC; CE; CSA; IEC; KTL; SEMKO; SEV; UL; VDE	CCC; CE; CSA; IEC; KTL; SEMKO; SEV; UL; VDE
surface mount	NO	NO
Terminal surface	Tin (Sn)	Tin (Sn)
Terminal shape	END CAP	END CAP
Base Number Matches	1	1
