0760450003
Active
sfp_stacked_multiport_connectors
Small Form-factor Pluggable Plus (SFP+) Stacked 2-by-2 Multi-Port Connector with 2
Outer Lightpipe Ports, EMI Metal Gasket, 80 Circuits, Tin (Sn)/Lead(Pb) Tails
Documents:
3D Model

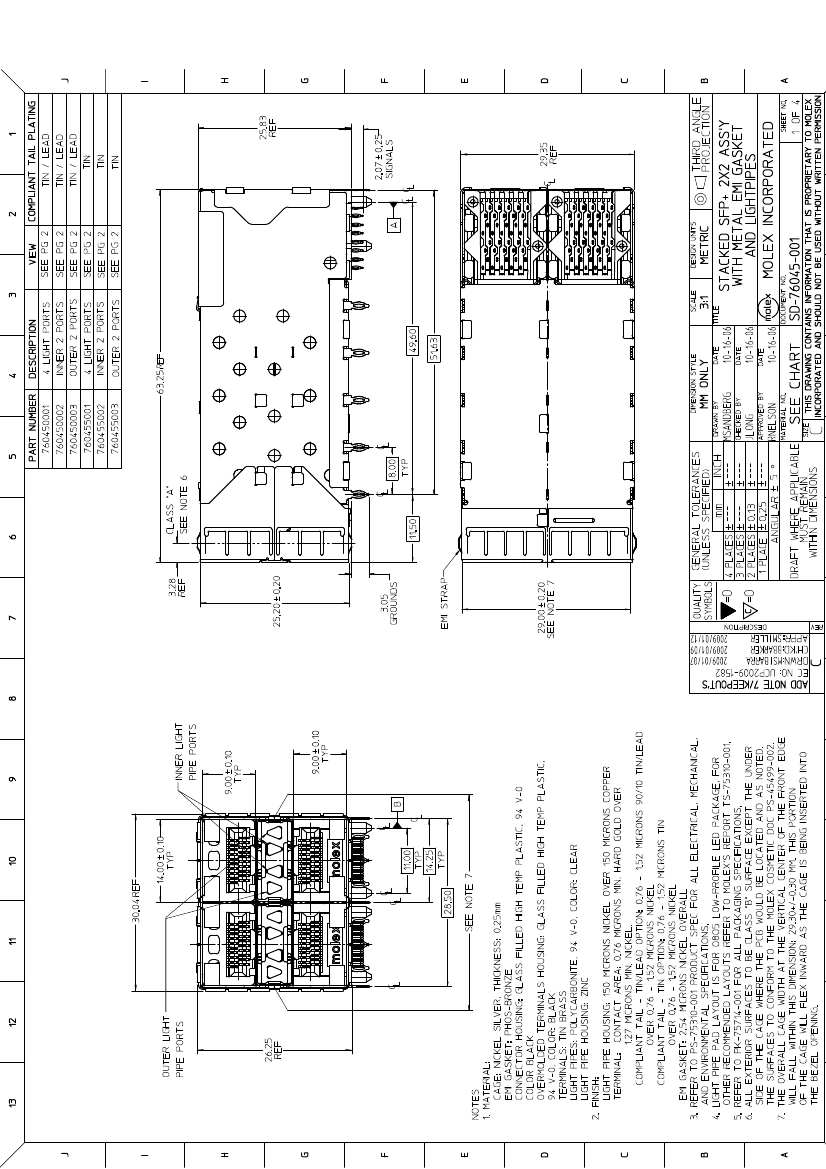

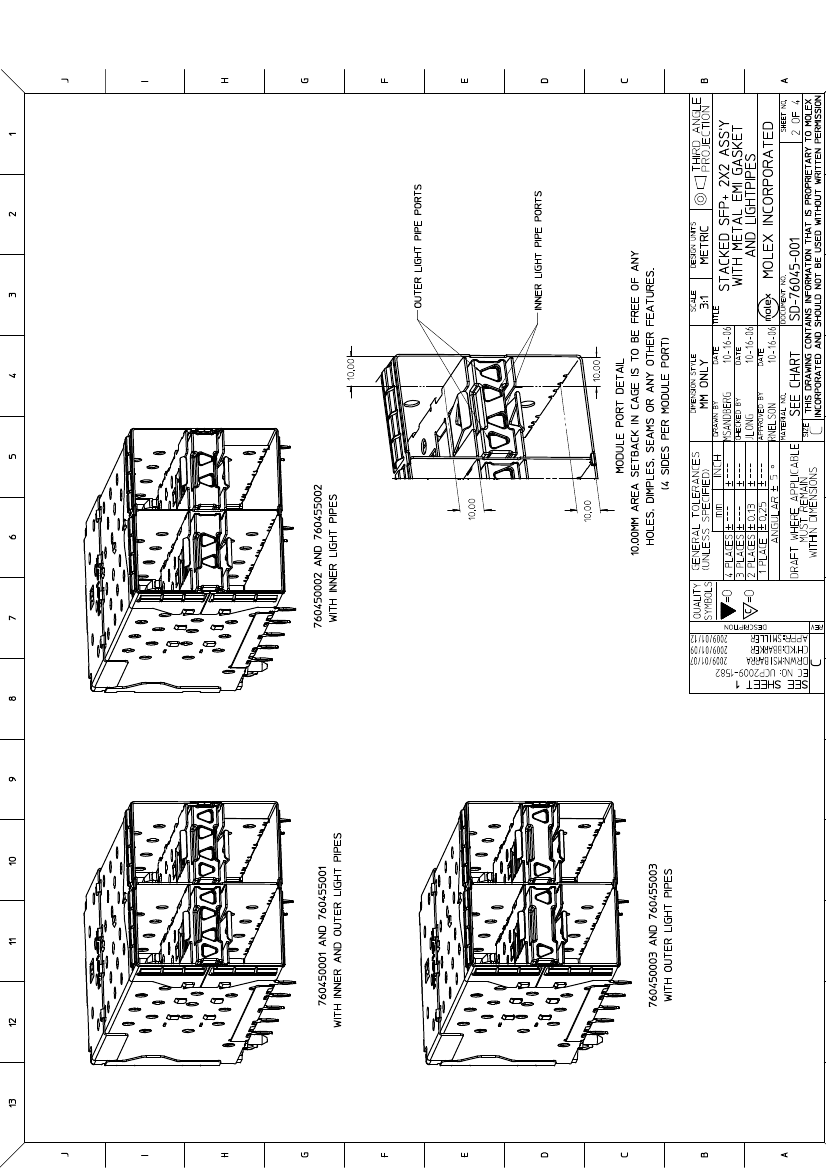

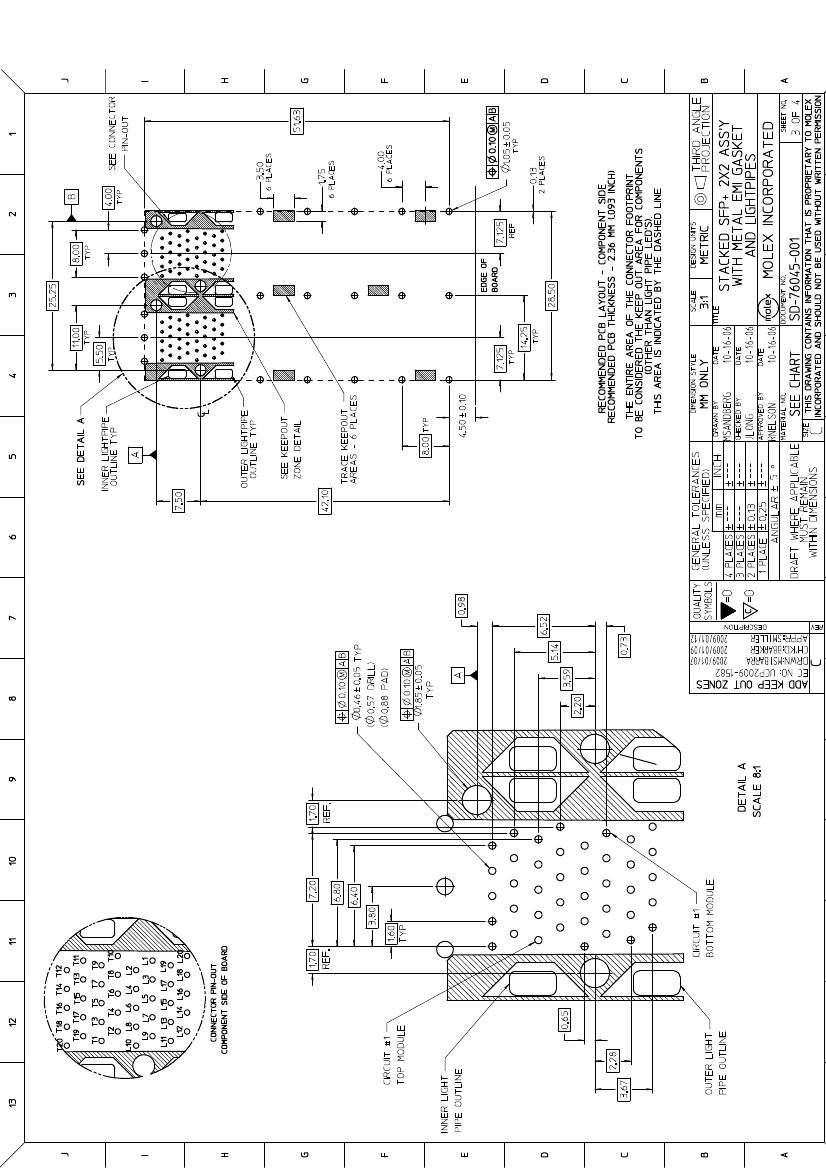

Drawing (PDF)
Application Specification (PDF)
Product Specification PS-75310-001 (PDF)
RoHS Certificate of Compliance (PDF)
Agency Certification
CSA
UL
LR19980
E29179
General
Product Family
Series
Application
Component Type
Overview
Product Name
Type
I/O Connectors
76045
Module-to-Board
Receptacle
sfp_stacked_multiport_connectors
SFP Plus
N/A
EU RoHS
RoHS Co
Exemptio
REACH S
Not Revie
Halogen
Status
Halogen
Need mo
environm
Physical
Boot Color
Circuits (Loaded)
Circuits (maximum)
Circuits Detail
Color - Resin
Durability (mating cycles max)
Flammability
Gender
Keying to Mating Part
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
N/A
80
80
80
Black, Clear (Blue Tint)
100
94V-0
Female
None
Yes
High Performance Alloy (HPA)
Gold
Tin-Lead
High Temperature Thermoplastic, Polycarbonate
2
Right Angle
0.081 In
2.07 mm
Yes
Yes
0.062 In
1.57 mm
Tray
No
0.031 In
0.80 mm
0.031 In
0.80 mm
30.4
0.76
30.4
Email pro
For a mu
Complian
Please vi
non-prod
Search
76045S
Use W
075951
Applic
Tooling
found b
Crimp H
contain
Specifi
Global
Descri
SFP St
Port Ins
by 2
SFP St
Port Ex
2 by 2
Plating min: Termination (µm)
Polarized to Mating Part
Polarized to PCB
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
Waterproof / Dustproof
0.76
Yes
Yes
No
-40°C to +85°C
Through Hole - Compliant Pin
No
Electrical
Current - Maximum per Contact
Grounding to Panel
Shield Type
Shielded
Voltage - Maximum
0.5A
None
EMI Gasket
Yes
120V AC (RMS)/DC
Material Info
Reference - Drawing Numbers
Application Specification
Packaging Specification
Product Specification
Sales Drawing
Test Summary
AS-75310-001, AS-76090-001
PK-75714-001
PS-75310-001
SD-76045-001
TS-75310-001
