76015-1114 datasheet, PDF - EEWORLD Datasheet

76015-1114: Description1.85mm by 3.70mm (.073 by .146) Pitch, GbX I-Trac垄芒 Vertical Header Module, Unguided, Left End Wall, 7 Rows, 10 Columns, 140 Circuits; File Size452KB，6 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet View All

76015-1114 Overview

1.85mm by 3.70mm (.073 by .146) Pitch, GbX I-Trac垄芒 Vertical Header Module, Unguided, Left End Wall, 7 Rows, 10 Columns, 140 Circuits

Preview

Download Datasheet

View All

This document was generated on 05/14/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA

Part Number:

Status:

Overview:

Description:

0760151114

Active

gbx_itrac_backplane_connector_system

1.85mm by 3.70mm (.073" by .146") Pitch, GbX I-Trac™ Vertical Header Module,

Unguided, Left End Wall, 7 Rows, 10 Columns, 140 Circuits, Mating Pin Length

5.70mm (.224"),

Documents:

3D Model

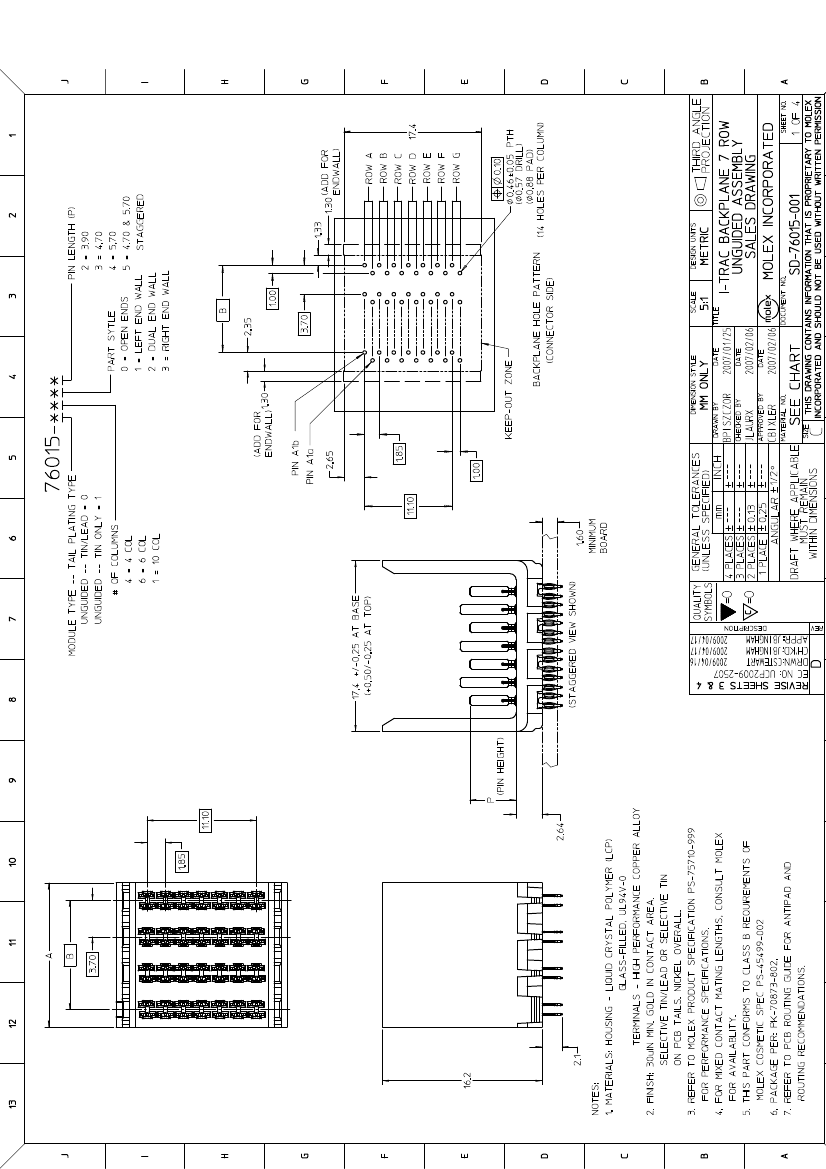

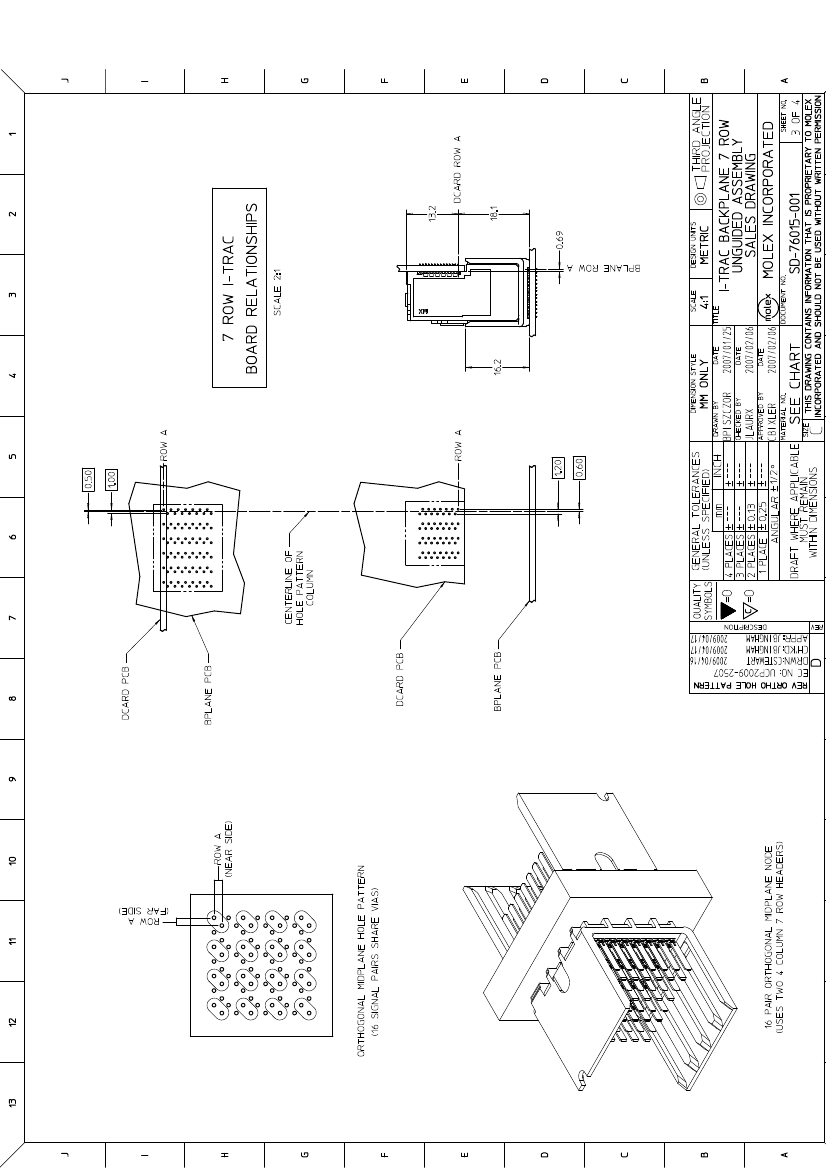

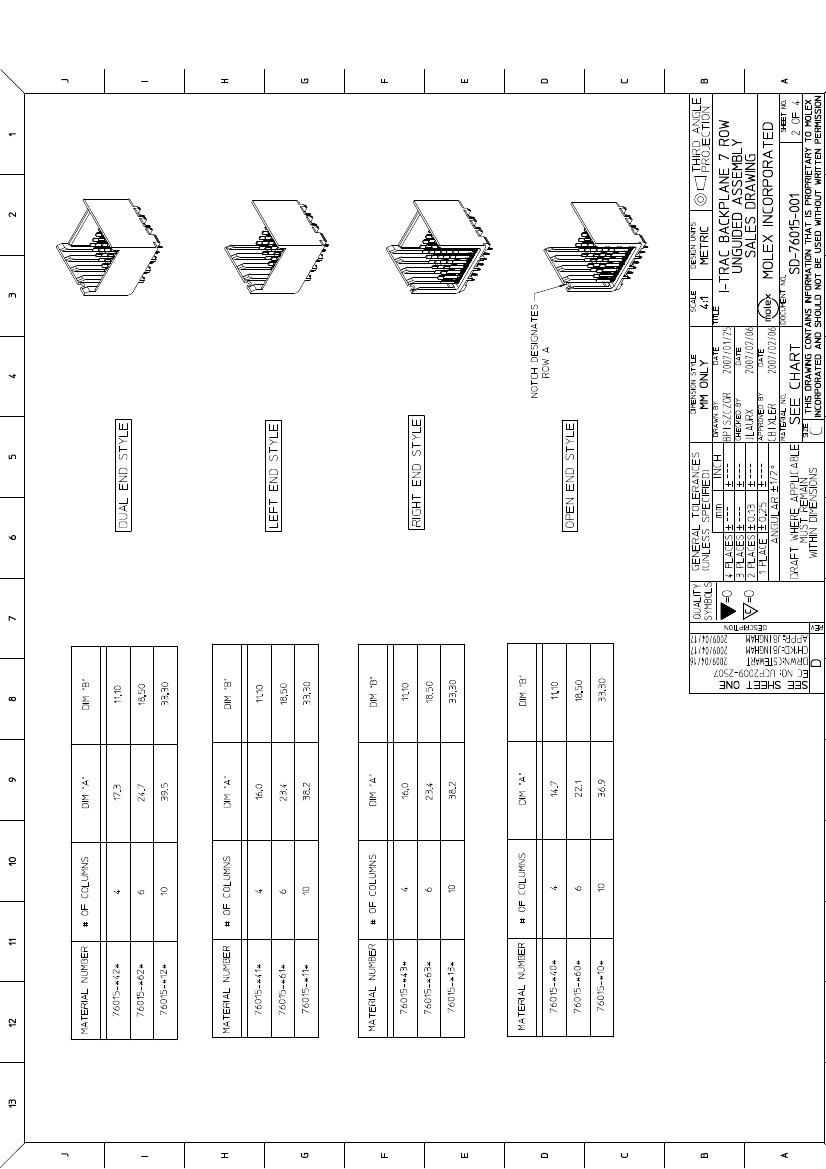

Drawing (PDF)

Product Specification PS-75710-999 (PDF)

RoHS Certificate of Compliance (PDF)

Agency Certification

E29179

General

Product Family

Series

Application

Application Tooling Documents

Component Type

More Detailed Tech Information

Overview

Product Name

Style

Backplane Connectors

76015

Backplane, Midplane, Orthogonal

<a href="http://www.molex.com/pdm_docs/ats/

ATS-622018699.pdf">Tooling Manual</a>

PCB Header

I-Trac@molex.com

gbx_itrac_backplane_connector_system

GbX I-Trac™

N/A

EU RoHS

ELV and

Complia

REACH S

Contains

Halogen

Status

Not Revi

Need mo

environm

Email pro

For a mu

Complian

Physical

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Guide to Mating Part

Keying to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Columns

Number of Pairs

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

140

Black

200

94V-0

None

High Performance Alloy (HPA)

Gold

Tin

High Temperature Thermoplastic

4, Open Pin Field

Vertical

0.083 In

2.10 mm

None

0.063 In

1.60 mm

Tray

0.073 In, 0.146 In

1.85 mm, 3.70 mm

0.039 In, 0.106 In

1.00 mm, 2.70 mm

30.4

0.76

Please vi

non-prod

76015S

Mates

76020

Module

Use W

78227

Recept

Guide P

Applic

Tooling

found b

Crimp H

contain

Specifi

Global

Descri

Press-I

I-Trac™

Header

Column
