850039053: Description2.54mm (.100) Pitch DIN 41612 C Style Male Header, Right Angle, Through Hole, 63 Circuits, No Mounting Clips, No Flux Proof, Void Pin A21, Lead free; File Size85KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet View All

850039053 Overview

2.54mm (.100) Pitch DIN 41612 C Style Male Header, Right Angle, Through Hole, 63 Circuits, No Mounting Clips, No Flux Proof, Void Pin A21, Lead free

Preview

Download Datasheet

View All

This document was generated on 05/17/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA

Part Number:

Status:

Overview:

Description:

0850039053

Active

din_41612

2.54mm (.100") Pitch DIN 41612 C Style Male Header, Right Angle, Through Hole, 63

Circuits, No Mounting Clips, No Flux Proof, Void Pin A21, Lead free

Documents:

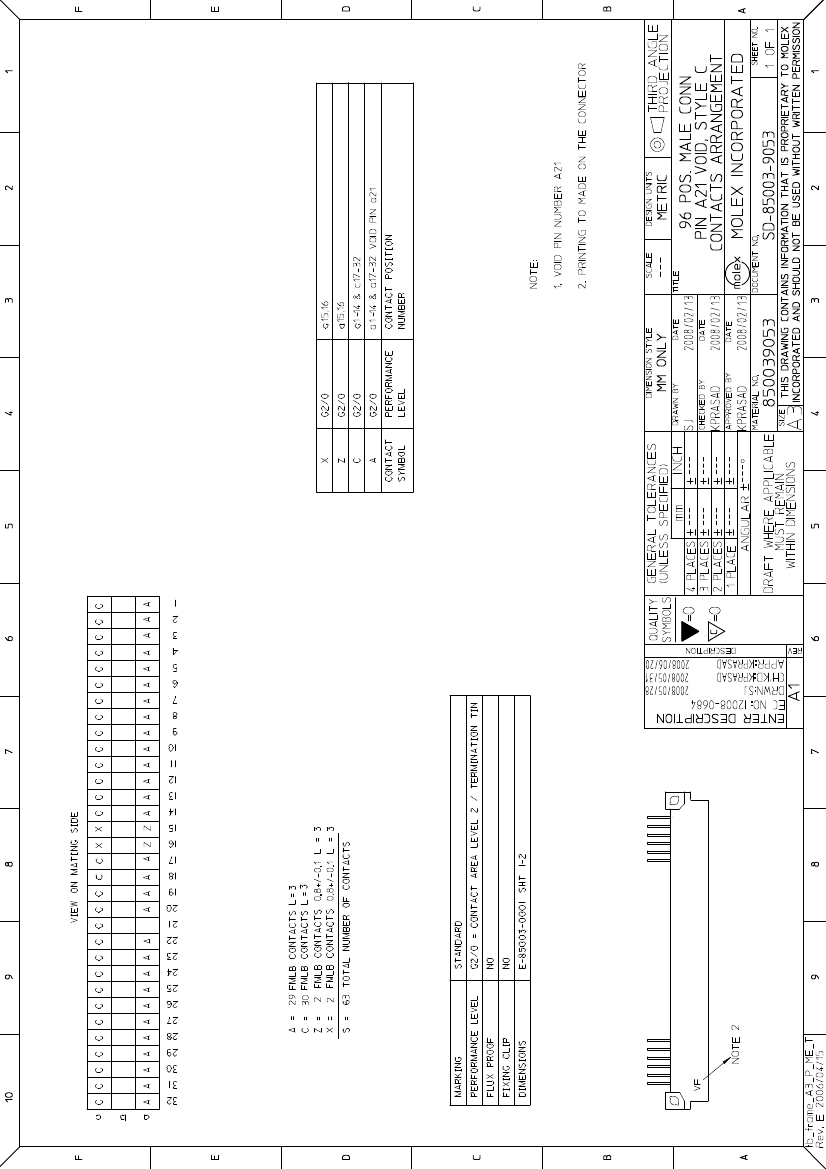

Drawing (PDF)

RoHS Certificate of Compliance (PDF)

General

Product Family

Series

Application

Comments

Component Type

Overview

Product Name

Style

Backplane Connectors

85003

Backplane

No Mounting Clips. No Flux Proof

PCB Header

din_41612

IEC 603-2/DIN 41612

EU RoHS

ELV and

Complia

REACH S

Not Revi

Halogen

Status

Not Revi

Need mo

environm

Email pro

For a mu

Complian

Please vi

non-prod

Physical

Circuits (Loaded)

Circuits (maximum)

Circuits Detail

First-Mate-Last-Break Contacts at: A:a1-a14,a17-

a20,a22-a32; C:c1- c14,c17-c32-. First-Mate-Last-Break

Contacts at: Z:a15-a16;X:c15-c16 . Void Pin at A:a21

Gray

400

Yes

Brass

Gold

Tin

Polyester

Open Pin Field

Right Angle

0.118 In

3.00 mm

Yes

0.062 In

1.60 mm

Tray

0.100 In

2.54 mm

0.100 In

2.54 mm

0.80

2.5

Yes

-55°C to +125°C

85003S

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Guide to Mating Part

Keying to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Columns

Number of Pairs

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to PCB

Stackable

Temperature Range - Operating
