Part Number:
Status:
Description:
0913300022
Active
1.27mm (.050") Pitch Picoflex® PF-50 Header, Low Profile, SMT, Bottom Entry, 22
Circuits, Glow Wire Compatible
Documents:
3D Model

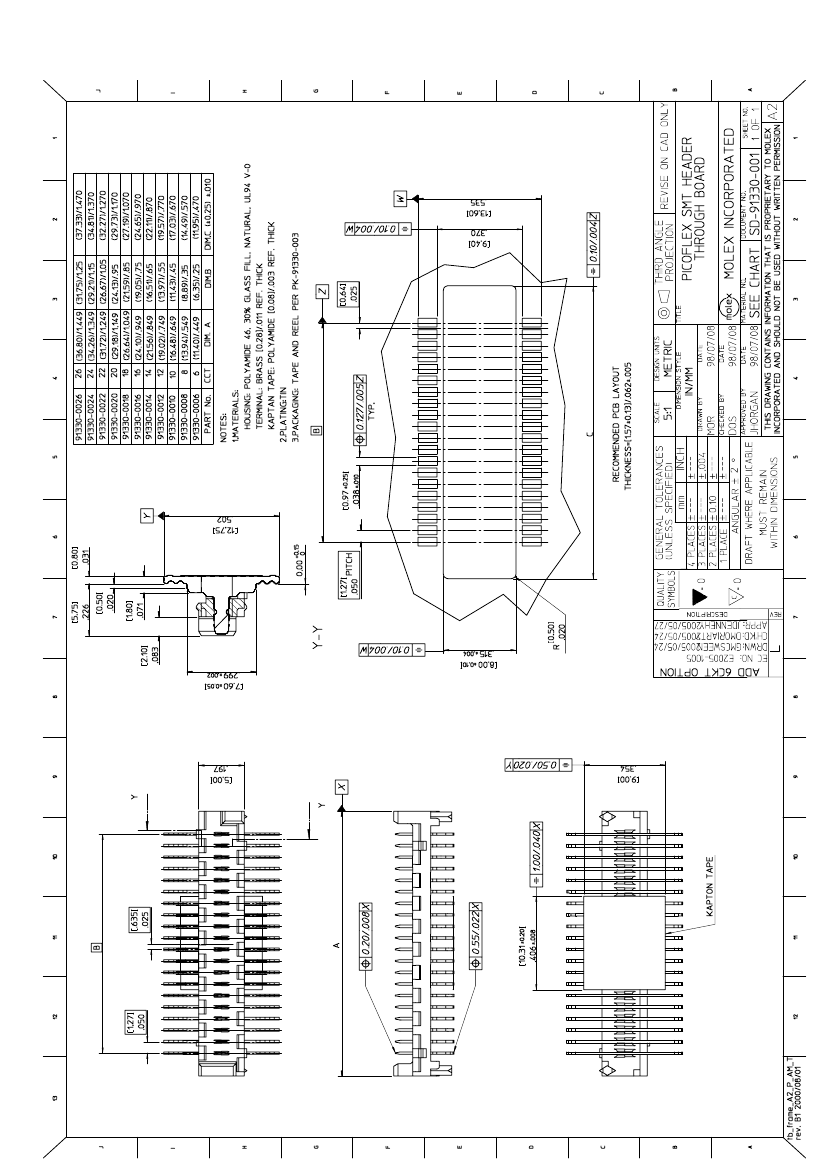

Drawing (PDF)
Product Specification PS-99020-0011 (PDF)
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Application
Comments
Product Name
PCB Headers
91330
Wire-to-Board
Low Profile SMT
Picoflex®
Physical
Breakaway
Circuits (Loaded)
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Resin
Number of Rows
Orientation
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Polarized to PCB
Shrouded
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
No
22
Natural
30
No
Yes
No
None
Yes
Brass
Tin
High Temperature Thermoplastic
1
Vertical
Yes
Yes
0.062 In
1.60 mm
Embossed Tape on Reel
0.050 In
1.27 mm
120
3
120
3
Yes
Yes
No
No
N/A
-40°C to +105°C
Surface Mount
EU RoHS
ELV and
Complia
REACH S
Contains
Halogen
Status
Not Halo
Need mo
environm
Email pro
For a mu
Complian
Please vi
non-prod
Search
91330S
Mates
90327
Electrical
Current - Maximum per Contact
Voltage - Maximum
1.2A
250V
Material Info
Reference - Drawing Numbers
