F-219
FJ–20–D–06.50–4
FJ–05–D–04.80–4
(1.00 mm) .0394"

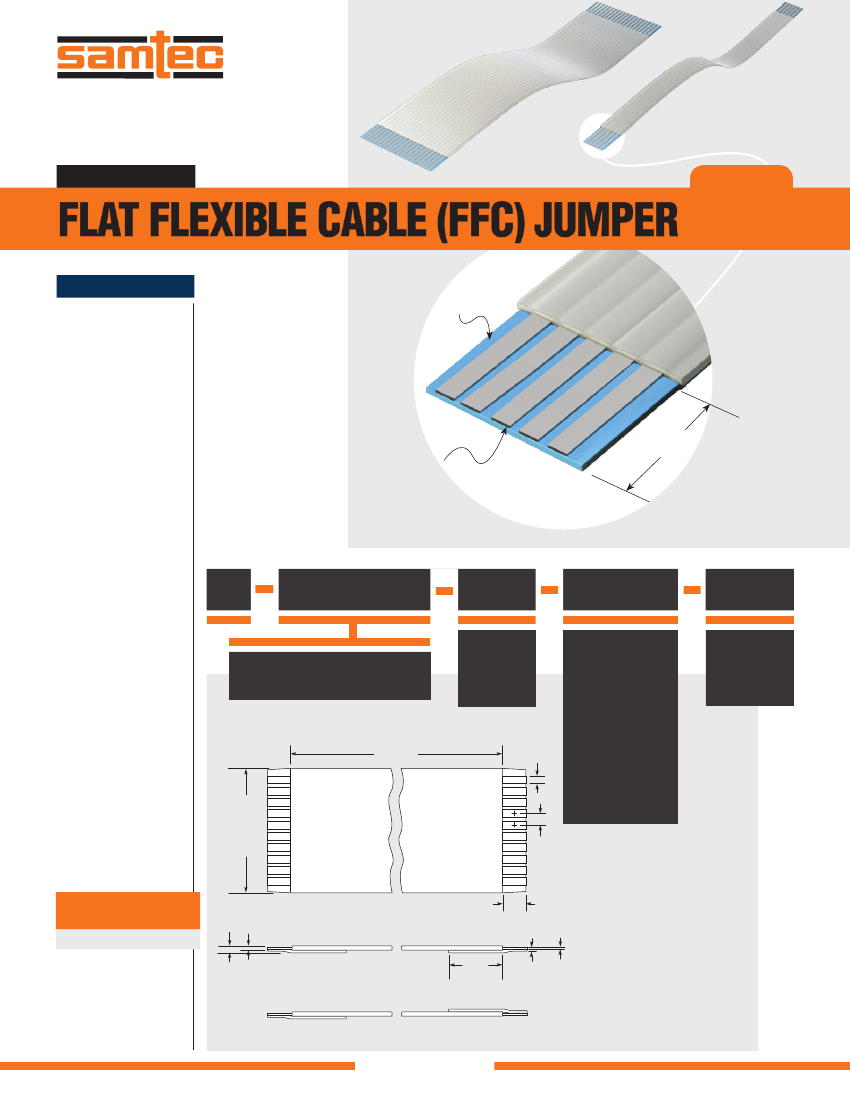

FJ SERIES
FLAT FLEXIBLE CABLE (FFC) JUMPER
SPECIFICATIONS
For complete specifications
see www.samtec.com?FJ
Conductor:
Tin Plated Copper
Conductor Resistance:
300
W/km
max
Insulation Resistance:
10 MW/km min
(conductor-to-conductor)
Dielectric Test:
400 VAC during 1 minute
(conductor-to-conductor)
Temperature Rating:
-30 °C to +80 °C
Voltage Rating:
300 VAC
RoHS Compliant:
Yes
Mates with:
FC1, ZF1
Double or
reversed ended
4.00 mm
.157"
Variety of
pin counts
FJ
NO. OF
POSITIONS
STYLE
LENGTH
STRIP
LENGTH
–05, –10, –15,
–20, –25, –30
= Double End
–D
–R
Length in inches
= Reversed End
= (76.2 mm) 3.00"
–03.00
–06.00
–12.00
–24.00
= (4.00 mm) .157"
(Required for
mating with
FC1 & ZF1)
–4
= (152.4 mm) 6.00"
LENGTH
(0.70)
.028
= (304.8 mm) 12.00"
(No. of
positions
x (1.00)
.03937)
+ (1.00)
.03937
= (609.6 mm) 24.00"
(Standard Lengths)
(1.00)
.03937
ALSO AVAILABLE
(MOQ Required)
• Other Lengths
(0.33)
.013
(5.26)
.207
(4.00)
.157
(0.52)
.021
Notes:
Stiffener color will be blue or
black at Samtec’s discretion.
Some sizes, styles and
options are non-standard,
non-returnable.
–D Style
(0.30) (0.10)
.012 .004
–R Style
Due to technical progress, all designs, specifications and components are subject to change without notice.
All parts within this catalog are built to Samtec’s specifications.
Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.
