38-00-2406

Description
16 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC
CategoryThe connector    The connector
File Size190KB,4 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric Compare View All

38-00-2406 Overview

16 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC

38-00-2406 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codeunknow
Other featuresPOLARIZED
Connector typeBOARD CONNECTOR
Contact to complete cooperationTIN (40)
Contact completed and terminatedTIN (40)
Contact point genderFEMALE
Contact materialBRASS
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee3
MIL complianceNO
Manufacturer's serial number7690
Mixed contactsNO
Installation typeCABLE
Number of rows loaded1
OptionsGENERAL PURPOSE
Termination typeIDC
Total number of contacts16
UL Flammability Code94V-2
This document was generated on 05/19/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA
Part Number:
Status:
Overview:
Description:
0038002406
Active
kk
2.54mm (.100") Pitch KK® Connector, IDT, High Pressure Cat Ear Contact System,
Green ID Stripe, 16 Circuit
Documents:

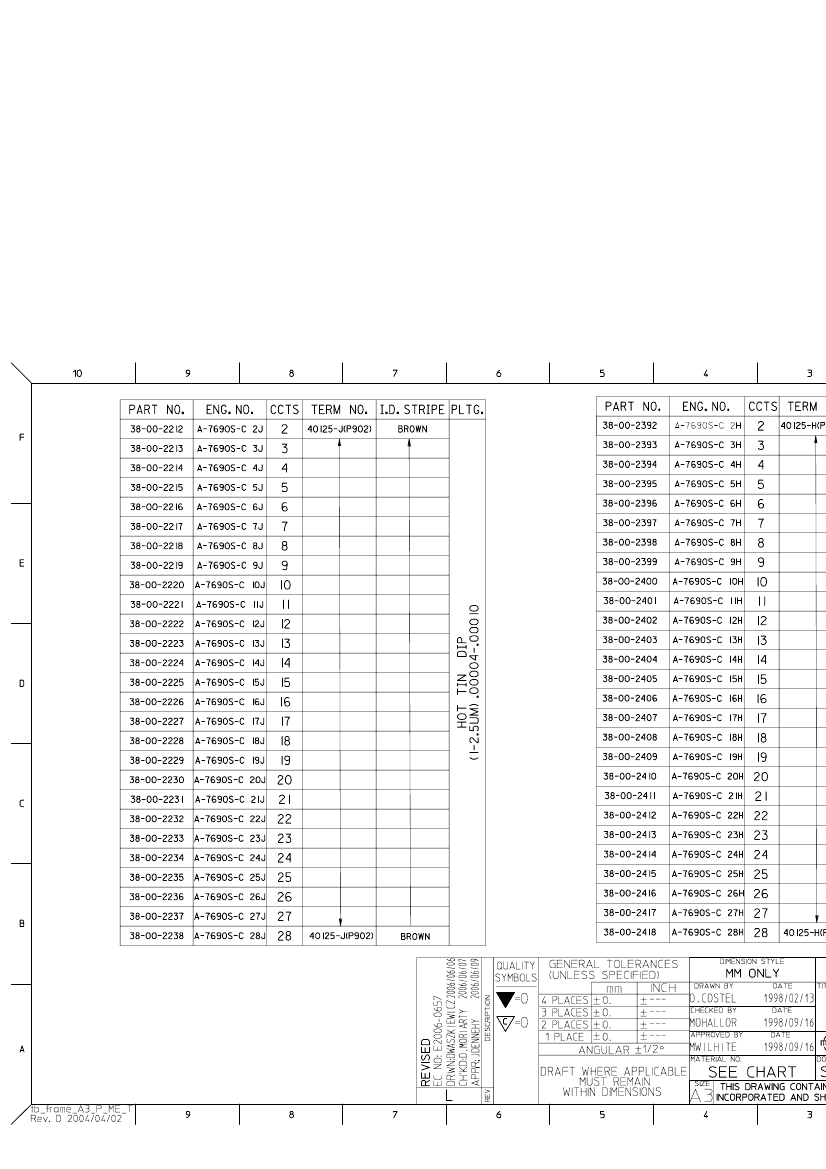

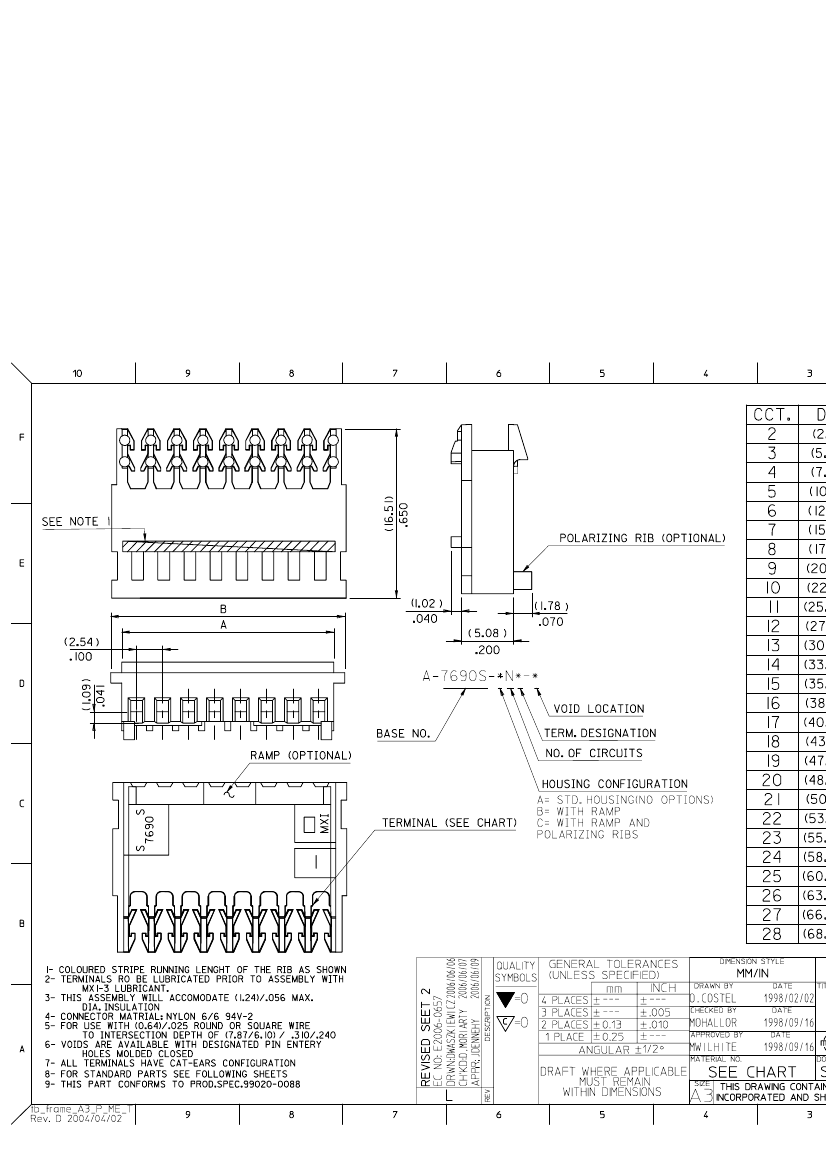

Drawing (PDF)
Product Specification PS-99020-0088 (PDF)
Product Specification PSX-7690S (PDF)
RoHS Certificate of Compliance (PDF)
Agency Certification
UL
E29179
General
Product Family
Series
Comments
Crimp Quality Equipment
Overview
Product Name
IDT and Solder Connectors
7690
Version H
Yes
kk
KK®
Physical
Circuits (Loaded)
Color - Resin
Durability (mating cycles max)
Flammability
Gender
Glow-Wire Compliant
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Packaging Type
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Temperature Range - Operating
Wire Size AWG
16
Natural
25
94V-2
Female
No
Yes
Brass
Tin
Tin
Nylon
1
Bag
No
0.100 In
2.54 mm
40
1.00
40
1.00
0°C to +75°C
24 Stranded, 26 Solid, 26 Stranded Topcoat
EU RoHS
ELV and
Complia
REACH S
Not Revie
Halogen
Status
Not Revi
Need mo
environm
Email pro
For a mu
Complian
Please vi
non-prod
Search
7690Se
Mates
Molex K
and 0.6
Electrical
Current - Maximum per Contact
Voltage - Maximum
2.5A
250V
Solder Process Data
Lead-free Process Capability
Wave Capable (TH only)
Material Info
Old Part Number
7690SC16H
Reference - Drawing Numbers
Product Specification
PS-99020-0088, PSX-7690S

38-00-2406 Related Products

38-00-2406 7690SC16H 38-00-2409 7690SC19H
Description 16 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC 16 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC 19 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC 16 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC
