BAS70E6327 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BAS70E6327

BAS70E6327: DescriptionMixer Diode, Silicon; CategoryDiscrete semiconductor diode; File Size89KB，5 Pages; ManufacturerSIEMENS; Websitehttp://www.infineon.com/

Download Datasheet Parametric Compare View All

BAS70E6327 Overview

Mixer Diode, Silicon

BAS70E6327 Parametric

Parameter Name	Attribute value
Maker	SIEMENS
package instruction	R-PDSO-G3
Reach Compliance Code	unknown
ECCN code	EAR99
Configuration	SINGLE
Maximum diode capacitance	2 pF
Diode component materials	SILICON
Diode type	MIXER DIODE
JESD-30 code	R-PDSO-G3
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum power dissipation	0.25 W
Certification status	Not Qualified
surface mount	YES
technology	SCHOTTKY
Terminal form	GULL WING
Terminal location	DUAL

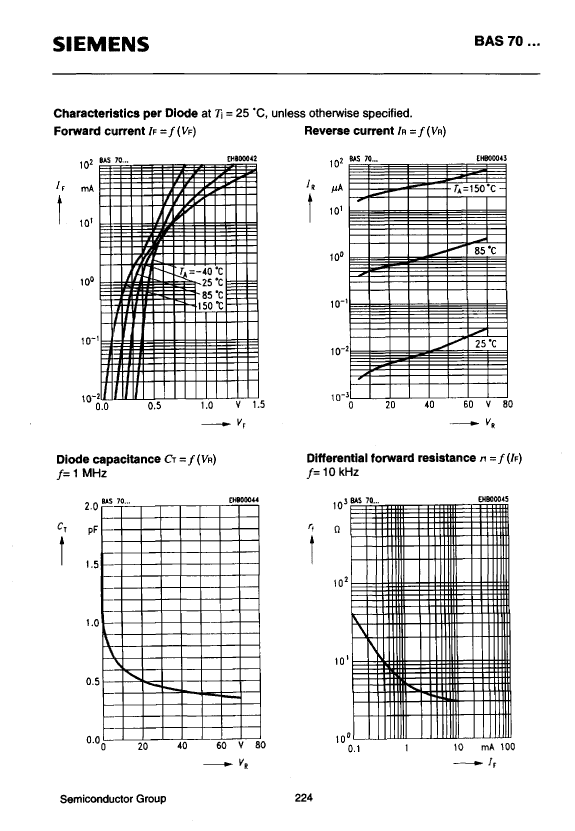

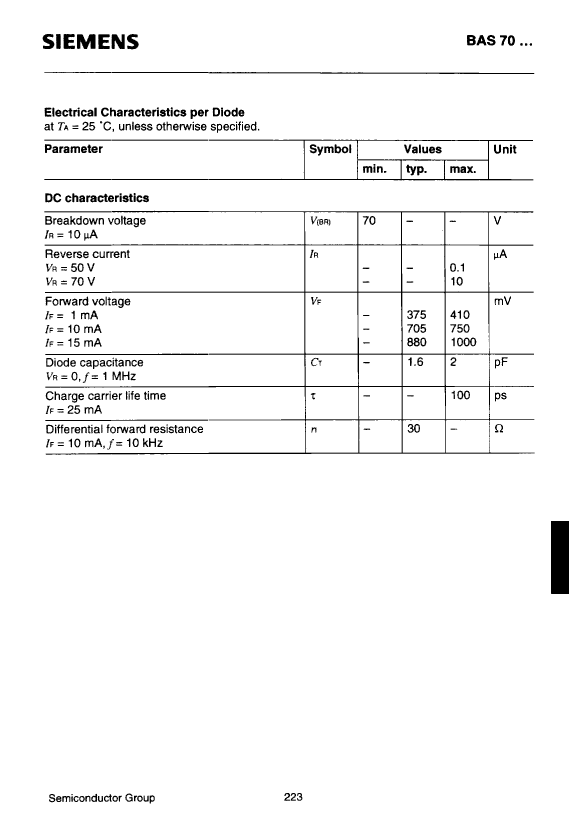

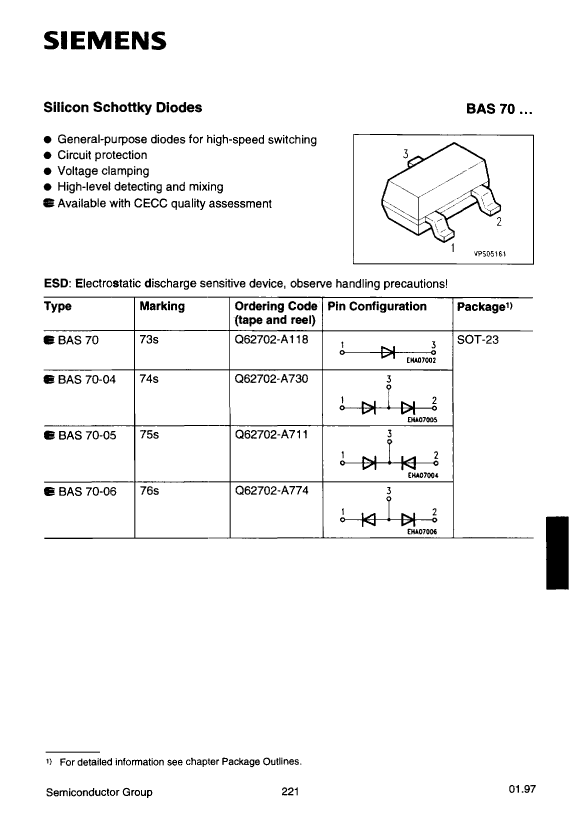

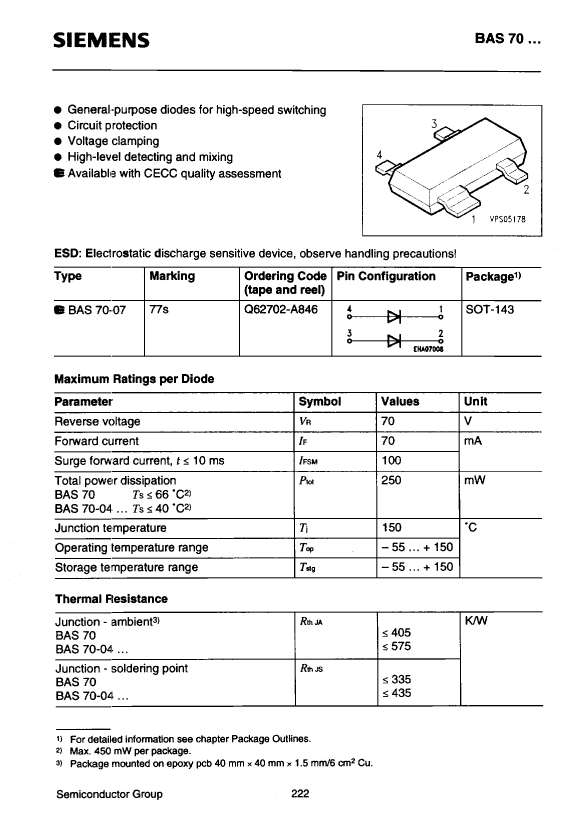

Preview

Download Datasheet

View All

BAS70E6327 Related Products

	BAS70E6327	BAS70-04E6433	BAS70-05E6327	BAS70-06E6327	BAS70-05E6433	BAS70-06E6433	BAS70E6433	BAS70-04E6327
Description	Mixer Diode, Silicon	Mixer Diode, Silicon	Mixer Diode, Silicon	Mixer Diode, Silicon	Mixer Diode, Silicon	Mixer Diode, Silicon	Mixer Diode, Silicon	Mixer Diode, Silicon
package instruction	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Configuration	SINGLE	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	SINGLE	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Maximum diode capacitance	2 pF	2 pF	2 pF	2 pF	2 pF	2 pF	2 pF	2 pF
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	MIXER DIODE	MIXER DIODE	MIXER DIODE	MIXER DIODE	MIXER DIODE	MIXER DIODE	MIXER DIODE	MIXER DIODE
JESD-30 code	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
Number of components	1	2	2	2	2	2	1	2
Number of terminals	3	3	3	3	3	3	3	3
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Maximum power dissipation	0.25 W	0.45 W	0.45 W	0.45 W	0.45 W	0.45 W	0.45 W	0.45 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maker	SIEMENS	-	-	SIEMENS	SIEMENS	SIEMENS	SIEMENS	SIEMENS
