43254-0040 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 43254-0040

43254-0040: DescriptionRectangular Power Connector, 4 Contact(s), Male, Solder Terminal; CategoryThe connector The connector; File Size68KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

43254-0040 Overview

Rectangular Power Connector, 4 Contact(s), Male, Solder Terminal

43254-0040 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	POLARIZED, SOLDERED DIRECTLY TO THE BOARD
Board mount options	SPLIT BOARD LOCK
body width	0.504 inch
subject depth	0.645 inch
body length	0.894 inch
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	WHITE
insulator material	POLYESTER
MIL compliance	NO
Plug contact pitch	0.18 inch
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	CABLE
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Rated current (signal)	6 A
Guideline	CSA, UL
reliability	COMMERCIAL
Shell material	POLYESTER
Terminal length	0.16 inch
Terminal pitch	4.572 mm
Termination type	SOLDER
Total number of contacts	4
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

Allows fast interconnect to PCB

Mounting pegs for PCB polarization

Wire insertion/extraction from horizontal direction

Optional molded void locations

Designed for quick connect/disconnect applications

Electrical

Voltage: 600V

Current: 6.0A

Contact Resistance: 10m

Ω

max., 20m

Ω

max. per circuit

(18 AWG wire)

Dielectric Withstanding Voltage: 1500V AC

Insulation Resistance: 1000 M

Ω

min.

Mechanical

Wire Pull-Out Force: 10 lb min.

Durability: 5 cycles

Physical

Housing: White polyester, UL 94V-0

Contact: Phosphor Bronze

Plating: Tin

Operating Temperature: -10 to +70˚C

Conductor Diameter Range: .038 to .052"

Insulation Range: .079 to .118"

Wire Accommodation: 16 to 20 AWG wire

4.57mm (.180")

Wire Trap-LITE

Wire-To-Board

Wire Trap

43254

Single Row

Right Angle

Reference Information

Product Speciﬁcation: PS-42732

Packaging: Tube

UL File No.: E29179

CSA File No.: LR19980

Designed In: Inches

Suggested Wire Types: 16 AWG Solid, 18 AWG Solid or

Stranded with Top Coat, 20 AWG Stranded with Top Coat

Suggested UL Styles: 16 to 18 AWG: UL 1007, 1316,

1452 or 1569; 18 to 20 AWG: UL 1015

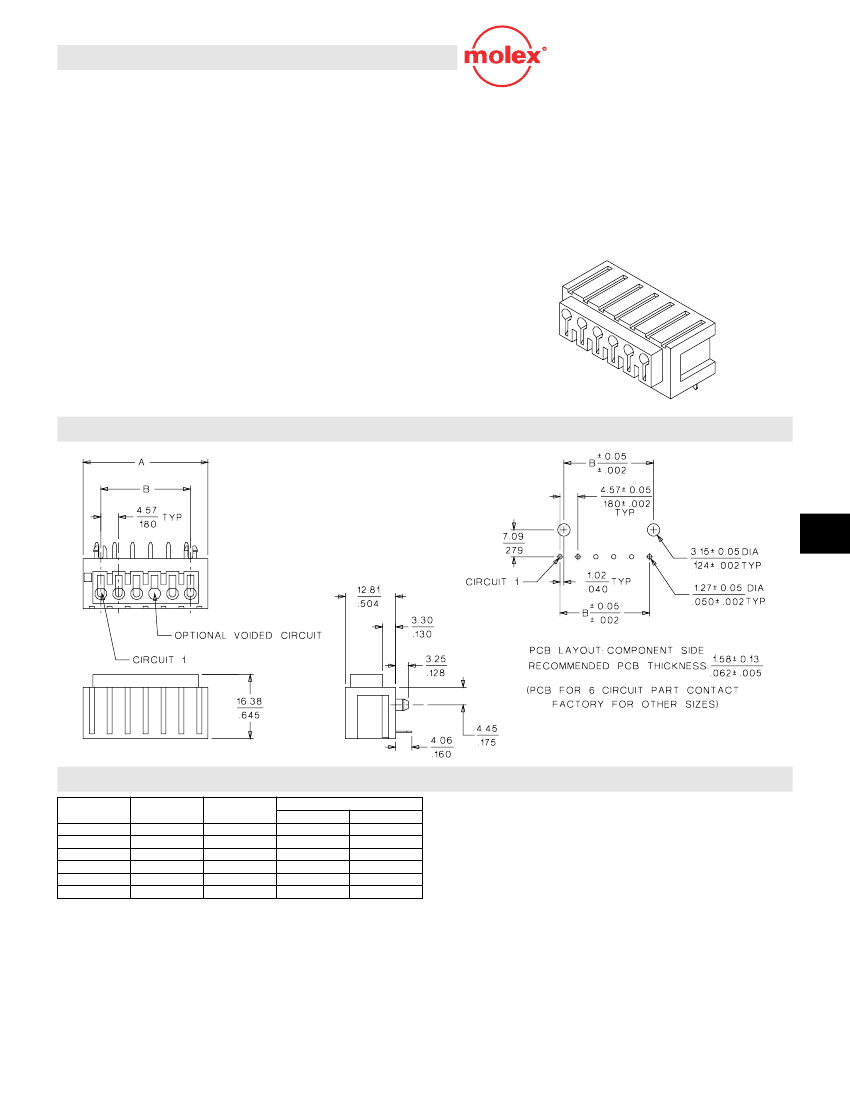

CATALOG DRAWING (FOR REFERENCE ONLY)

ORDERING INFORMATION AND DIMENSIONS

Circuits

Order No.

43254-0030

43254-0040

43254-0050

43254-0060

43254-0080

43254-0100

Wire

Extraction Tool

11-03-0040

18.14

22.71

27.28

31.85

41.00

50.14

Dimension

(.714)

(.894)

(1.074)

(1.254)

(1.614)

(1.974)

9.14

13.72

18.29

22.86

32.00

41.15

(.360)

(.540)

(.720)

(.900)

(1.260)

(1.620)

MX01

K-125

Power Connectors

43254-0040 Related Products

	43254-0040	43254-0080	43254-0060	43254-0050	43254-0030	43254-0100
Description	Rectangular Power Connector, 4 Contact(s), Male, Solder Terminal	Rectangular Power Connector, 8 Contact(s), Male, Solder Terminal	Rectangular Power Connector, 6 Contact(s), Male, Solder Terminal	Rectangular Power Connector, 5 Contact(s), Male, Solder Terminal	Rectangular Power Connector, 3 Contact(s), Male, Solder Terminal	Rectangular Power Connector, 10 Contact(s), Male, Solder Terminal
Reach Compliance Code	unknow	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	POLARIZED, SOLDERED DIRECTLY TO THE BOARD	POLARIZED, SOLDERED DIRECTLY TO THE BOARD	POLARIZED, SOLDERED DIRECTLY TO THE BOARD	POLARIZED, SOLDERED DIRECTLY TO THE BOARD	POLARIZED, SOLDERED DIRECTLY TO THE BOARD	POLARIZED, SOLDERED DIRECTLY TO THE BOARD
Board mount options	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK
body width	0.504 inch	0.504 inch	0.504 inch	0.504 inch	0.504 inch	0.504 inch
subject depth	0.645 inch	0.645 inch	0.645 inch	0.645 inch	0.645 inch	0.645 inch
body length	0.894 inch	1.614 inch	1.254 inch	1.074 inch	0.714 inch	1.974 inch
Connector type	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	SN	SN	SN	SN	SN	SN
Contact completed and terminated	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
DIN compliance	NO	NO	NO	NO	NO	NO
Dielectric withstand voltage	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V
empty shell	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	WHITE	WHITE	WHITE	WHITE	WHITE	WHITE
insulator material	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER
MIL compliance	NO	NO	NO	NO	NO	NO
Plug contact pitch	0.18 inch	0.18 inch	0.18 inch	0.18 inch	0.18 inch	0.18 inch
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	1	1	1	1	1	1
Number of rows loaded	1	1	1	1	1	1
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Rated current (signal)	6 A	6 A	6 A	6 A	6 A	6 A
Guideline	CSA, UL	CSA, UL	CSA, UL	CSA, UL	UL, CSA	CSA, UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell material	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER
Terminal length	0.16 inch	0.16 inch	0.16 inch	0.16 inch	0.16 inch	0.16 inch
Terminal pitch	4.572 mm	4.572 mm	4.572 mm	4.572 mm	4.572 mm	4.572 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	4	8	6	5	3	10
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	-
Maker	-	Molex	Molex	Molex	Molex	Molex
