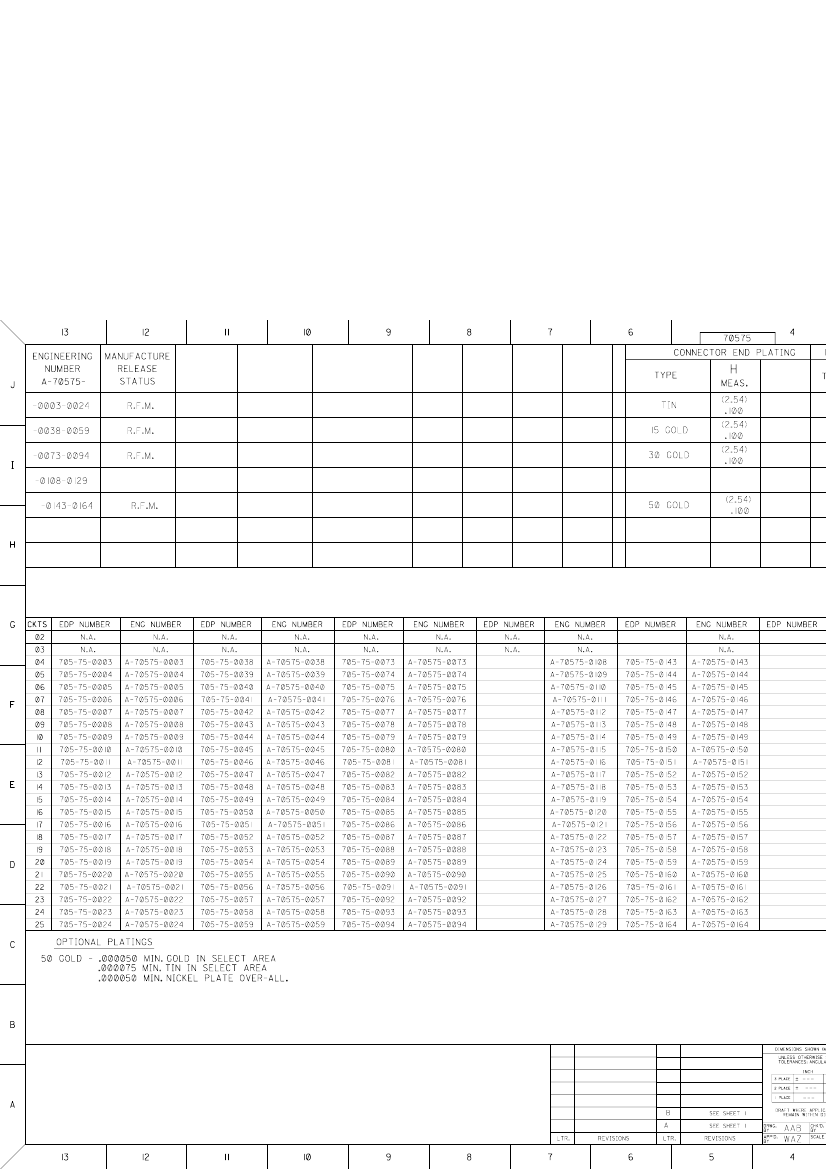

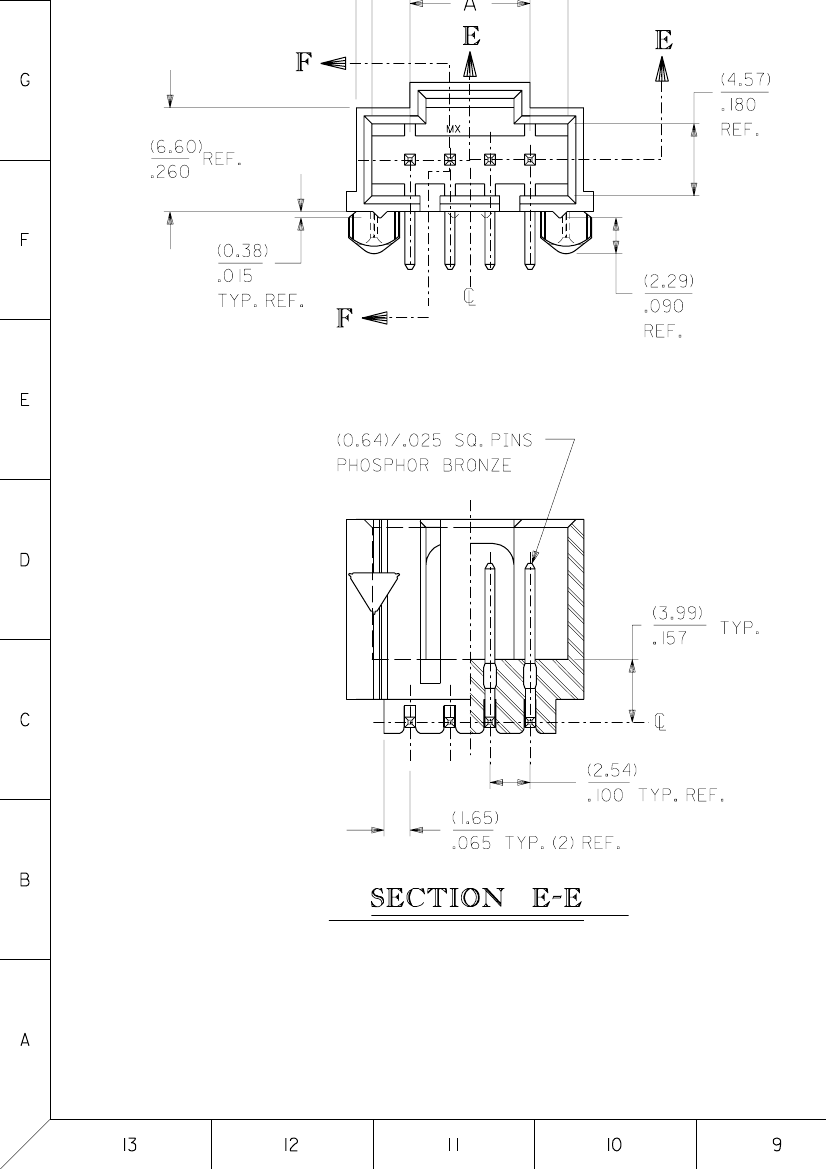

2.54mm (.100") Pitch SL垄芒 Header, Single Row, Right Angle, .180" Pocket, Shroudedwith Press-fit Plastic Peg, 23 Circuits, Tin (Sn) Plating
| Parameter Name | Attribute value |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Maker | Molex |
| package instruction | ROHS COMPLIANT |
| Reach Compliance Code | unknow |
| Other features | LOCKING CROWN |
| Board mount options | SOLDER HOLDING POSTS |
| body width | 0.338 inch |
| subject depth | 0.535 inch |
| body length | 2.52 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | TIN (150) OVER NICKEL |
| Contact completed and terminated | Tin (Sn) - with Nickel (Ni) barrie |
| Contact point gender | MALE |
| Contact material | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR |
| Contact resistance | 15 mΩ |
| Contact style | SQ PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 600VAC V |
| Durability | 25 Cycles |
| Filter function | NO |
| IEC compliance | NO |
| Insulation resistance | 1000000000 Ω |
| Insulator color | BLACK |
| insulator material | GLASS FILLED POLYCARBONATE |
| JESD-609 code | e3 |
| MIL compliance | NO |
| Plug contact pitch | 0.1 inch |
| Mixed contacts | NO |
| Installation option 1 | LATCH |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 1 |
| Number of rows loaded | 1 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -40 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| Plating thickness | 150u inch |
| polarization key | CTR W/GUIDE SLOTS |
| Rated current (signal) | 3 A |
| Guideline | UL, CSA |
| reliability | COMMERCIAL |
| Terminal length | 0.13 inch |
| Terminal pitch | 2.54 mm |
| Termination type | SOLDER |
| Total number of contacts | 23 |
| UL Flammability Code | 94V-0 |
