LM7805-ISO datasheet, PDF - EEWORLD Datasheet

LM7805-ISO: DescriptionIC,VOLT REGULATOR,FIXED,+5V,BIPOLAR,SIP,3PIN,METAL; CategoryPower/power management The power supply circuit; File Size85KB，4 Pages; ManufacturerSEMELAB

Download Datasheet Parametric Compare View All

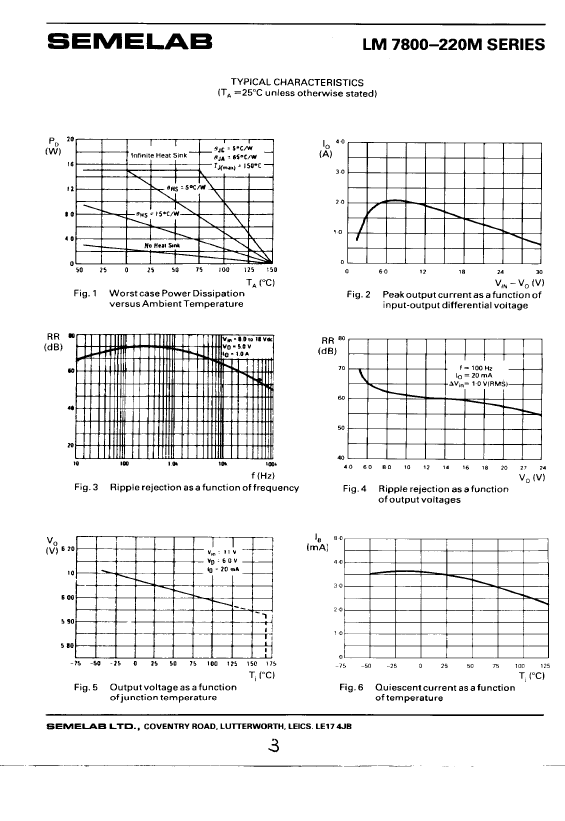

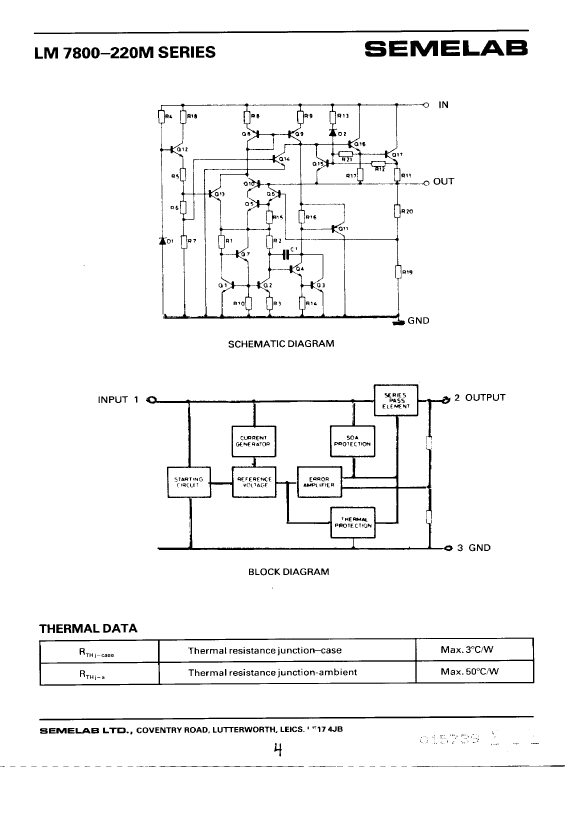

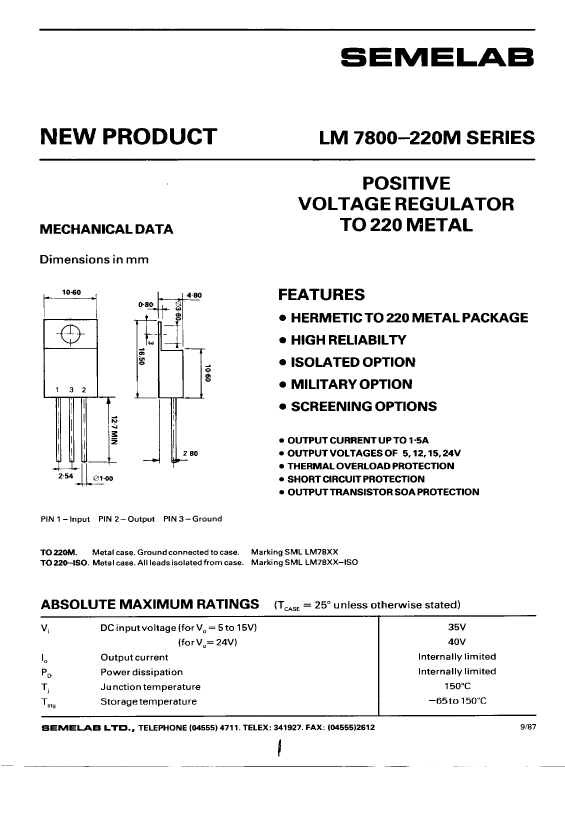

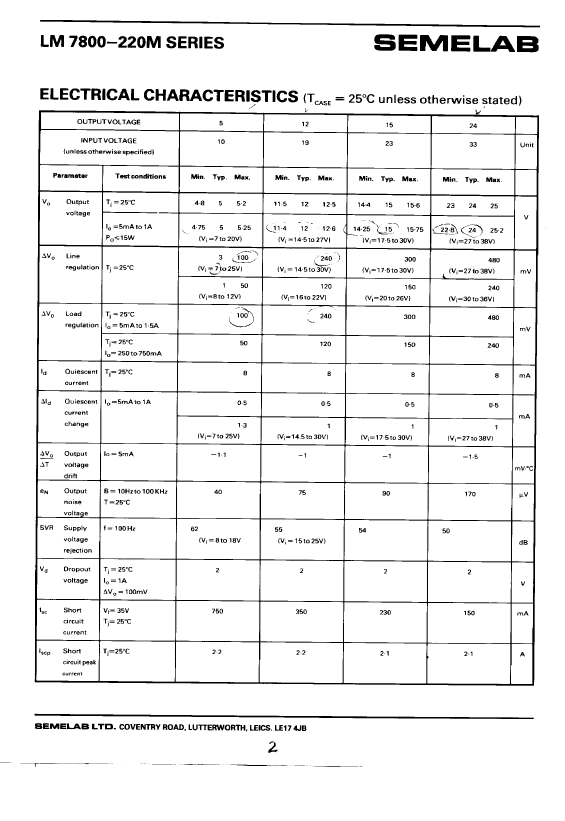

LM7805-ISO Overview

IC,VOLT REGULATOR,FIXED,+5V,BIPOLAR,SIP,3PIN,METAL

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SEMELAB
package instruction	, SIP3,.1ISO-TB
Reach Compliance Code	compliant
Adjustability	FIXED
Nominal dropback voltage 1	2 V
Maximum absolute input voltage	35 V
JESD-609 code	e0
Maximum grid adjustment rate	0.1%
Maximum load regulation	0.1%
Output times	1
Number of terminals	3
Working temperatureTJ-Max	150 °C
Working temperature TJ-Min	-55 °C
Maximum output current 1	1.5 A
Nominal output voltage 1	5 V
Package body material	METAL
Encapsulate equivalent code	SIP3,.1ISO-TB
Certification status	Not Qualified
surface mount	NO
technology	BIPOLAR
Terminal surface	Tin/Lead (Sn/Pb)
Terminal location	SINGLE
Maximum voltage tolerance	5%

	LM7805-ISO	LM7812-ISO	LM7815-ISO	LM7824-ISO
Description	IC,VOLT REGULATOR,FIXED,+5V,BIPOLAR,SIP,3PIN,METAL	IC,VOLT REGULATOR,FIXED,+12V,BIPOLAR,SIP,3PIN,METAL	IC,VOLT REGULATOR,FIXED,+15V,BIPOLAR,SIP,3PIN,METAL	IC,VOLT REGULATOR,FIXED,+24V,BIPOLAR,SIP,3PIN,METAL
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	SEMELAB	SEMELAB	SEMELAB	SEMELAB
package instruction	, SIP3,.1ISO-TB	, SIP3,.1ISO-TB	, SIP3,.1ISO-TB	, SIP3,.1ISO-TB
Reach Compliance Code	compliant	compliant	compliant	compliant
Adjustability	FIXED	FIXED	FIXED	FIXED
Nominal dropback voltage 1	2 V	2 V	2 V	2 V
Maximum absolute input voltage	35 V	35 V	35 V	40 V
JESD-609 code	e0	e0	e0	e0
Maximum grid adjustment rate	0.1%	0.24%	0.3%	0.48%
Maximum load regulation	0.1%	0.24%	0.3%	0.48%
Output times	1	1	1	1
Number of terminals	3	3	3	3
Working temperatureTJ-Max	150 °C	150 °C	150 °C	150 °C
Working temperature TJ-Min	-55 °C	-55 °C	-55 °C	-55 °C
Maximum output current 1	1.5 A	1.5 A	1.5 A	1.5 A
Nominal output voltage 1	5 V	12 V	15 V	24 V
Package body material	METAL	METAL	METAL	METAL
Encapsulate equivalent code	SIP3,.1ISO-TB	SIP3,.1ISO-TB	SIP3,.1ISO-TB	SIP3,.1ISO-TB
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE
Maximum voltage tolerance	5%	5%	5%	5%
