93071-0001 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 93071-0001

93071-0001: Description2 CONTACT(S), MALE, POWER CONNECTOR, SOLDER; CategoryThe connector The connector; File Size187KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

93071-0001 Overview

2 CONTACT(S), MALE, POWER CONNECTOR, SOLDER

93071-0001 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compli
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	POLYAMIDE6
Termination type	SOLDER
Total number of contacts	2
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

This document was generated on 05/28/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA

Part Number:

Status:

Overview:

Description:

0930710001

Active

RAST 2.5 Connector System

5.00mm (.197") Pitch Appli-Mate RAST 2.5 Header, Vertical, 2 Circuits, Reference K00,

Glow Wire Compatible

Documents:

3D Model

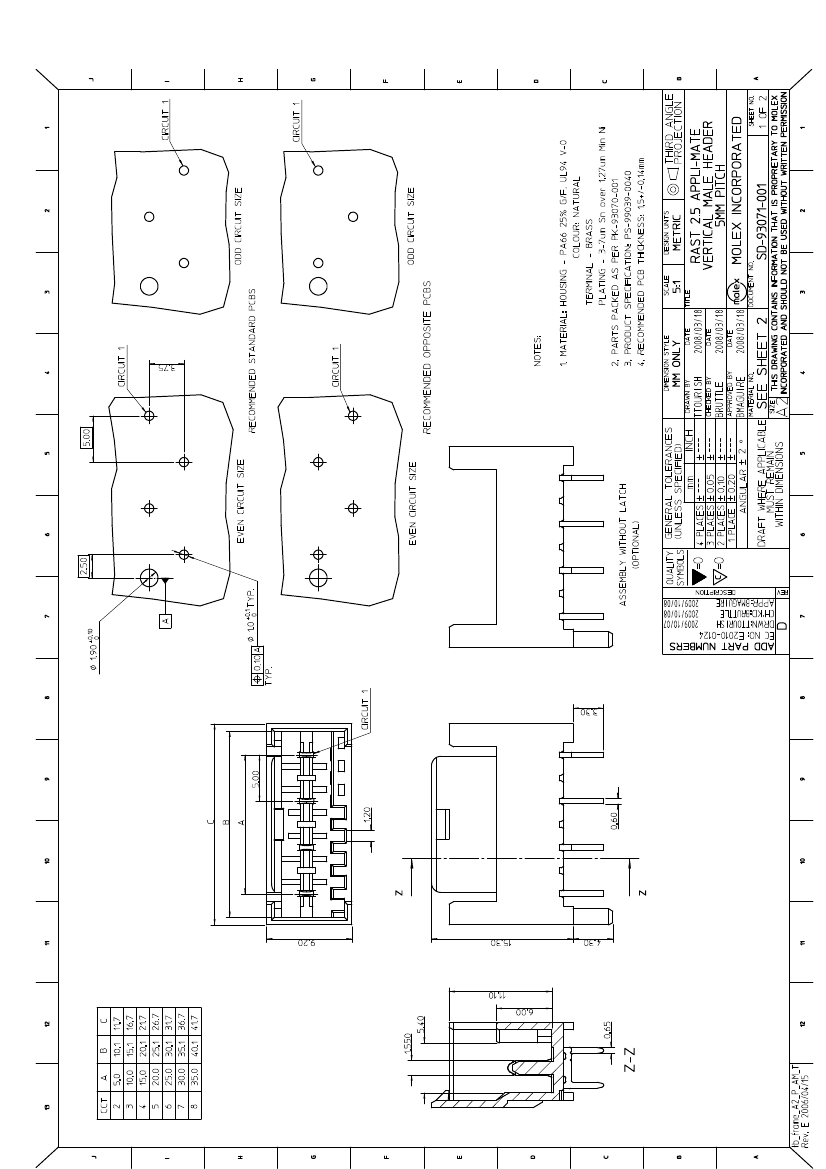

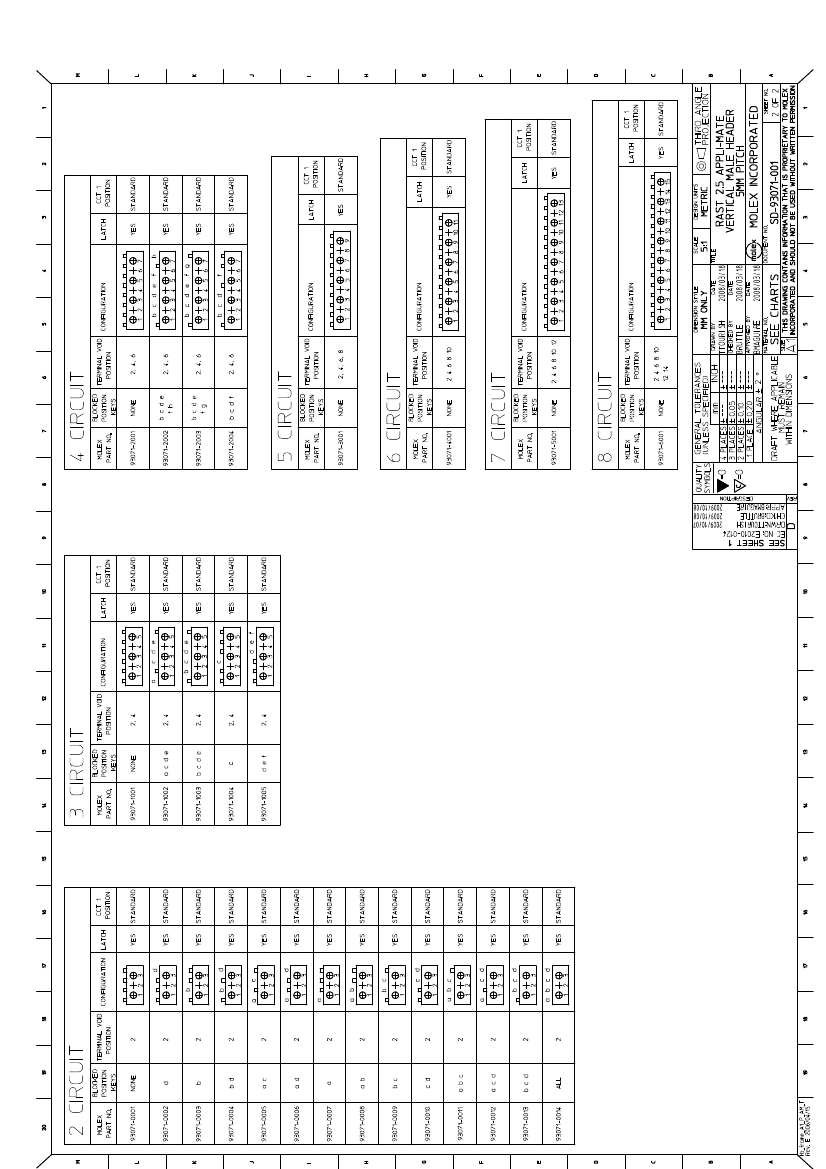

Drawing (PDF)

RoHS Certificate of Compliance (PDF)

Agency Certification

CSA

LR19980

E29179

General

Product Family

Series

Application

Overview

Product Name

PCB Headers

93071

Wire-to-Board

RAST 2.5 Connector System

RAST 2.5

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Polarized to PCB

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Natural

94V-0

Yes

None

Yes

Brass

Tin

Nylon

Vertical

0.059 In

1.50 mm

Carton

0.196 In

5.00 mm

Yes

-20C TO +120C

Through Hole

EU RoHS

ELV and

Complia

REACH S

Not Revie

Halogen

Status

Not Halo

Need mo

environm

Email pro

For a mu

Complian

Please vi

non-prod

93071S

Electrical

Current - Maximum per Contact

Voltage - Maximum

250V

Material Info

Reference - Drawing Numbers
