1201080027
Active
microchange_m12_connectors
Micro-Change® Double-Ended Cordset, Straight, Male to Male, 4 Poles, 3.0m (9.84' )
Length, D-Coded Keyway
Documents:
Drawing (PDF)
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Connector End A
Connector End B
IP Rating
Overview
Product Name
Type
Industrial Cordsets
120108
Micro-Change® (M12)
Micro-Change® (M12)
IP67
microchange_m12_connectors
Micro-Change® (M12)
Double Ended
Physical
Cable Diameter
Cable Length
Color - Cable Jacket
Coupling Style
Gender
Keyway
LED Indicator
Material - Cable Jacket
Material - Connector Body
Material - Contact
Material - Coupling Nut
Material - O-Ring
Material - Plating Mating
Orientation
Poles
Temperature Range - Operating
Wire Size AWG
Wire/Cable Type
6.35mm (.250")
3.0m (9.84' )
Blue Green
Threaded
Male-Male
D-coded
No
PVC
TPU
Copper
Brass
FKM
Gold over Nickel
Straight
4
-25°C to +75°C
26
Shielded-Stranded
EU RoHS
ELV and
Complia
REACH S
Not Revie
Halogen
Status
Not Revi
Need mo
environm
Email pro
For a mu
Complian
Please vi
non-prod
Search
120108
Electrical
Current - Maximum per Contact
Voltage - Maximum
1.5A
125V
Material Info
Old Part Number
E11A06002M030
Reference - Drawing Numbers
Sales Drawing
SD-120049-001
This document was generated on 06/02/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA
6
5
4
3
2
1
D
2 (RD+)
L
D
(2:1)
(2:1)
1 (TD+)
D - Code
100
`
25
3 (TD-)
4 (RD-)
C
C
M aterial No:
1200499417
1201080027
1201080039
1201080038
1201080037
1201080036
1201080035
1201080034
1201080033
1201080032
1201080031
1201080030
1201080029
1200490457
1201080028
P art Num ber
length L
E 11A 06002M 010
1000
E 11A 06002M 030
3000
E 11A 06002M 080
8000
E 11A 06002M 100
10000
E 11A 06002M 150
15000
E 11A 06002M 200
20000
E 11A 06002M 230
23000
E 11A 06002M 300
30000
E 11A 06002M 380
38000
E 11A 06002M 450
45000
E 11A 06002M 530
53000
E 11A 06002M 600
60000
E 11A 06002M 760
76000
E 11A 06002M 800
80000
E 11A 06002M 900
90000
For further cable length see generic drawing
B
1
2
3
4
1
2
3
4
B
M12x1
50
Connection: Inline
Cable: YM48679
Kabel: YM48679
QUALITY
SYMBOLS

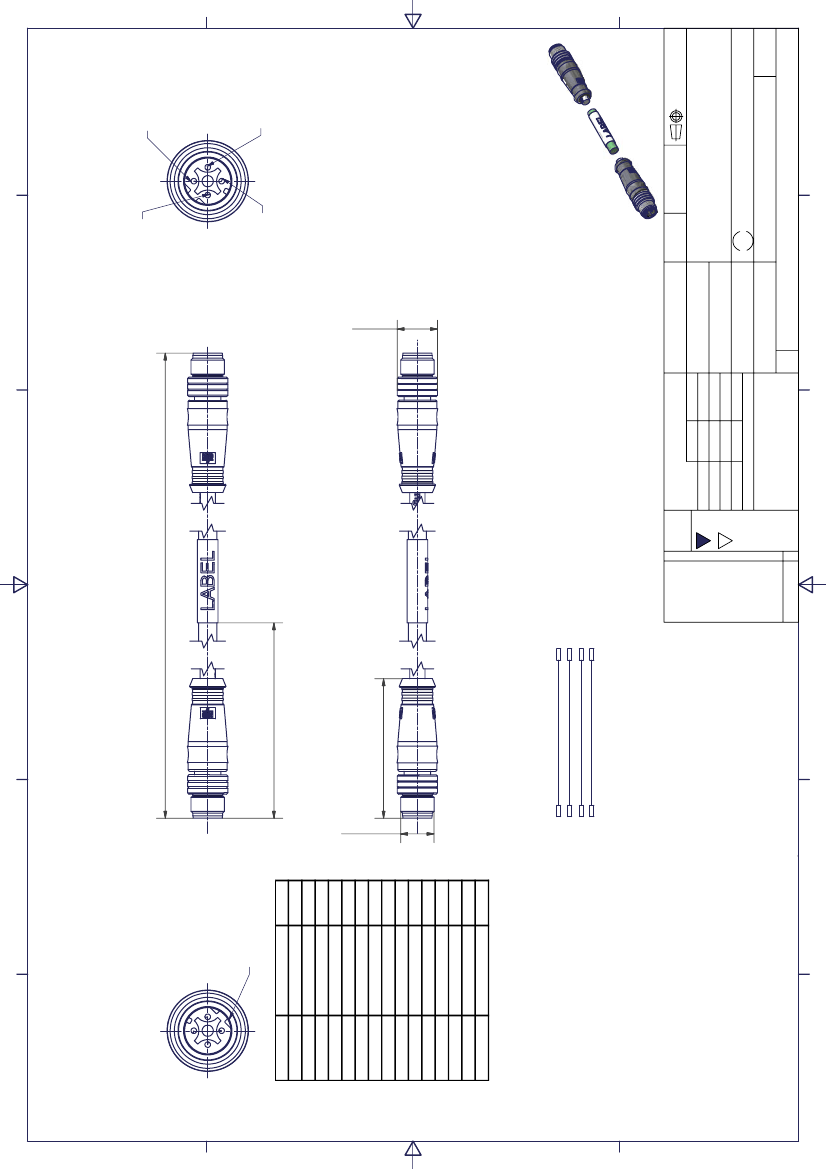

Customer Drawing
Kundenzeichnung
DIMENSION STYLE
SCALE
DESIGN UNITS
14,5
Electrical Data:
According to CAT5e Ethernet Standard.
Cordset male D - code to male D - code
Poles:
4
Max. Voltage:
125V
Max Current:
1,5A
Contact resistance:
<5m Ohm
Insulation withstand: >100M Ohm
Protection:
IP67
Temperature range: -25°C to 75°C
C
MM ONLY
DRAWN BY
DATE
1:1
=
=
DESCRIPTION
METRIC
NS
CHECKED BY
FIRST ANGLE
PROJECTION
23.05.2005
DATE
A
FP
APPROVED BY
12.02.2007
DATE
A
FP
MATERIAL NO.
GENERAL TOLERANCES
(UNLESS SPECIFIED)
mm
INCH
± ----
4 PLACES
± ---
± ---
3 PLACES
± ---
2 PLACES
± 0,05 ± ---
1 PLACE
± 0,10 ± ---
ANGULAR ±
1/2
°
DRAFT WHERE APPLICABLE
MUST REMAIN
WITHIN DIMENSIONS
01.07.2005
M12-4P(D)-M/M-ST/ST
Ethernet Cordset
unshielded
molex
MOLEX INCORPORATED
DOCUMENT NO.
SHEET NO.
EC NO:
WEU2010-0341
08.02.2010
DRWN:
NS
16.02.2010
CH'KD:
FP
16.02.2010
APPR:
FP
Packaging:
The coil is packed into a plastic bag and welded.
Verpackung:
Das Kabel wird zusammengerollt in eine Plastiktüte gegeben und verschwießt.
4
E11A06002MXXX
SIZE
1 OF 4
5
REV
A3
