MS3471W22-95A datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> MS3471W22-95A

Preview

MS3471W22-95A: DescriptionMIL Series Connector, 32 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Receptacle; CategoryThe connector The connector; File Size186KB，1 Pages; ManufacturerAero-Electric Connector; Websitehttps://www.aero-electric.com/index.html

Download Datasheet Parametric View All

MS3471W22-95A Overview

MIL Series Connector, 32 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Receptacle

MS3471W22-95A Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Aero-Electric Connector
Reach Compliance Code	compliant
Other features	STANDARD: MIL-DTL-26482, COMPATIBLE CONTACTS: M39029/4-110, M39029/4-113
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Coupling type	BAYONET
DIN compliance	NO
empty shell	NO
Environmental characteristics	CORROSION RESISTANT; ENVIRONMENT RESISTANT; FLUID RESISTANT
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Manufacturer's serial number	MS3471
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell surface	CADMIUM
Shell material	ALUMINUM ALLOY
Housing size	22
Termination type	CRIMP
Total number of contacts	32

Preview

Download Datasheet

View All

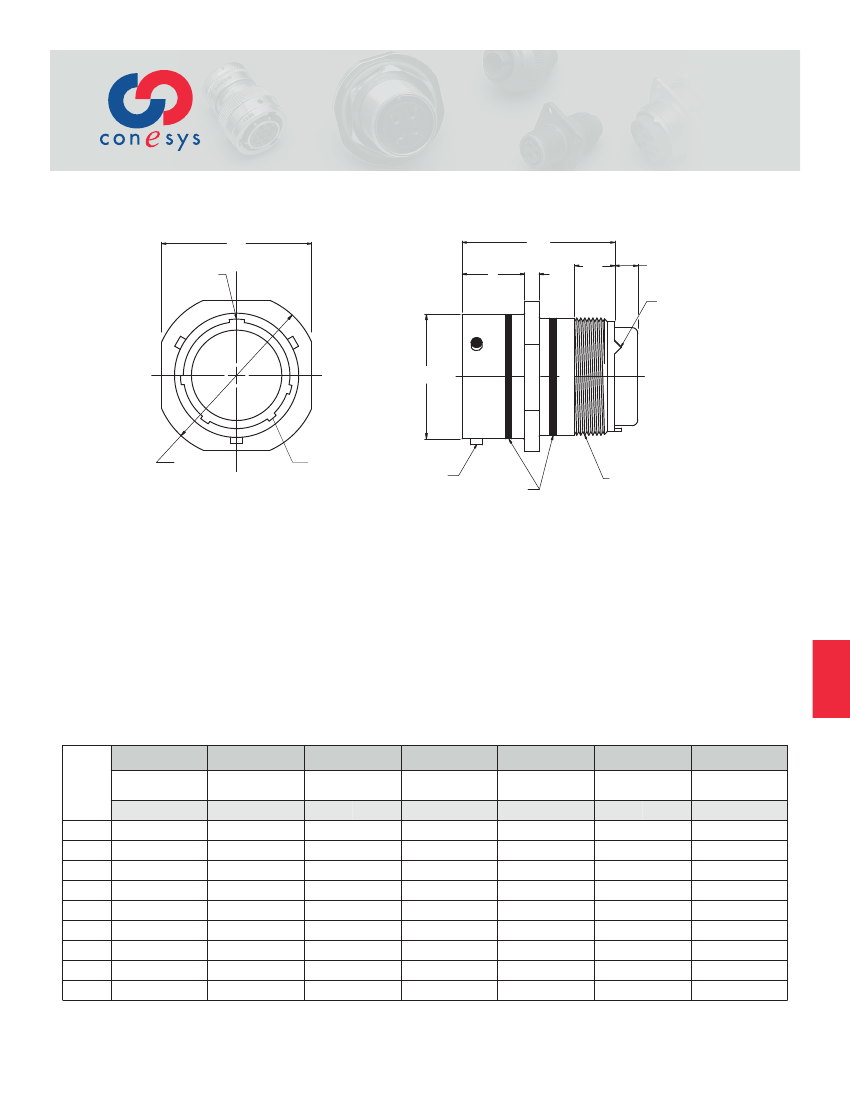

MS3471

Cable Connecting Receptacle

AE771

Bayonet Coupling, Crimp Removable, Rear Release

A

MAX

MASTER

KEYWAY

C

MAX

E

D

.290

(7.37)

MIN

FULL

THREAD

.190 (4.83)

.130 (3.30)

GROMMET EXTENSION

3 ACCESSORY TEETH

F

B

4 MINOR KEYWAYS

3 BAYONET PINS

BLUE COLOR BANDS

G

ACCESSORY THREAD

MIL–DTL–

26482 S 2

Page 71

Page 80

Pages 84, 85

Page 70

Pages 82, 83

Page 82

Completed Part Number

Contacts, Sealing Plugs and Tools

Insert Arrangements

Performance Speciﬁcations

Insert Availability and Contact Information

Polarization

Note:

Maximum grommet O.D. is same as

page 74.

C

MAX

on

A

Shell

Size

8

10

12

14

16

18

20

22

24

Maximum

inch

.828

.954

1.047

1.141

1.234

1.328

1.453

1.578

1.703

mm

21.03

24.23

26.59

28.98

31.34

33.73

36.91

40.08

43.26

±.020

inch

.938

1.062

1.156

1.250

1.344

1.438

1.562

1.688

1.812

B

±.51

mm

23.83

26.97

29.36

31.75

34.14

36.53

39.67

42.88

46.02

C

Maximum

inch

1.215

1.275

mm

30.86

32.39

±.016

inch

.062

.094

D

±.41

mm

1.57

2.39

+.016

-.015

inch

.446

.571

.604

E

+.41

-.38

mm

11.33

14.50

15.34

±.003

inch

.471

.588

.748

.873

.998

1.123

1.248

1.373

1.498

F

±.08

mm

11.96

14.94

19.00

22.17

25.35

28.52

31.70

34.87

38.05

G

Accessory Thread

Class 2A

1/2-20UNF

5/8-24UNEF

3/4-20UNEF

7/8-20UNEF

1-20UNEF

1-1/16-18UNEF

1-3/16-18UNEF

1-5/16-18UNEF

1-7/16-18UNEF

www.conesys.com

– 73 –

sales

@

aero-electric.com
