LS2-125-01-L-D-RA2-TR

Description
Board Connector, 50 Contact(s), 2 Row(s), Hermaphroditic, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, ROHS COMPLIANT
CategoryThe connector    The connector
File Size780KB，1 Pages
ManufacturerSAMTEC
Websitehttp://www.samtec.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

LS2-125-01-L-D-RA2-TR Overview

Board Connector, 50 Contact(s), 2 Row(s), Hermaphroditic, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, ROHS COMPLIANT

LS2-125-01-L-D-RA2-TR Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerSAMTEC
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
Factory Lead Time2 weeks
Other featuresSHROUDED,POLARIZED,ALIGN AND LATCH,TIGER BUY CONTACT
body width0.208 inch
subject depth0.399 inch
body length2.03 inch
Connector typeBOARD CONNECTOR
Contact to complete cooperationMATTE TIN OVER NICKEL
Contact completed and terminatedMatte Tin (Sn) - with Nickel (Ni) barrier
Contact point genderHERMAPHRODITIC
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
DIN complianceNO
Filter functionNO
IEC complianceNO
maximum insertion force1.112 N
Insulator colorBLACK
insulator materialLIQUID CRYSTAL POLYMER (LCP)
JESD-609 codee3
MIL complianceNO
Plug contact pitch0.079 inch
Match contact row spacing0.079 inch
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing2.0066 mm
Plating thickness10u inch
polarization keyENDS
Rated current (signal)3.2 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.09 inch
Terminal pitch2 mm
Termination typeSOLDER
Total number of contacts50
Evacuation force-minimum value.834 N

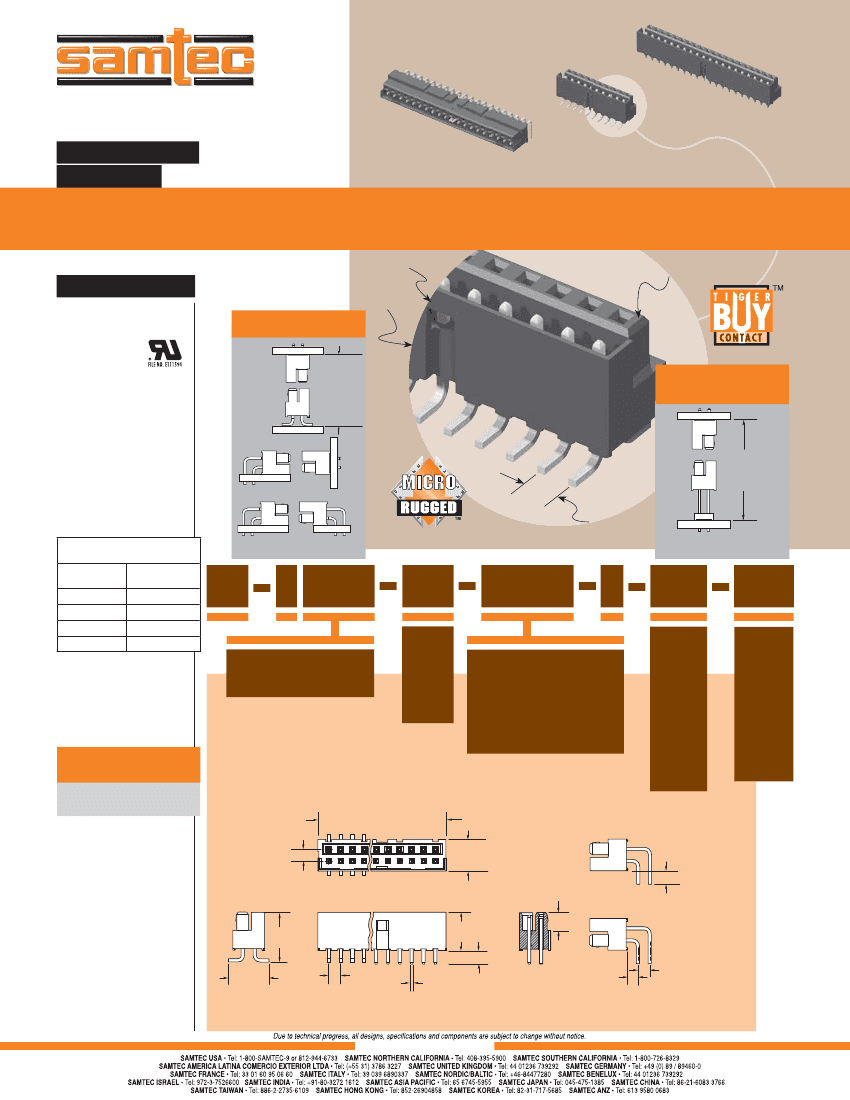

Preview

Download Datasheet
F-213
LS2–120–01–L–D
LS2–120–01–L–D–RA1
(2,00 mm) .0787"
LS2 SERIES
LS2–110–02–L–D
SELF MATING HERMAPHRODITIC STRIP
Shrouded Terminals
Polarized
SPECIFICATIONS
For complete specifications and
recommended PCB layouts
see www.samtec.com?LS2
Insulator Material:
Black Liquid Crystal
Polymer
Contact Material:
Phosphor Bronze
Plating:
Au or Sn over
50µ" (1,27 µm) Ni
Voltage Rating:
475 VAC mated with LS2
Operating Temp Range:
-55°C to +125°C
Insertion Force:
(Single contact only)
4 oz (1,11 N) avg.
Withdrawal Force:
(Single contact only)
3 oz (0,83 N) avg.
RoHS Compliant:
Yes
CURRENT RATING
(PER CONTACT)
AMBIENT
TEMP
20°C
40°C
60°C
80°C
6 Contacts
5A
4.3A
3.6A
2.7A
Mates with:
LS2
Align &
Latch™
APPLICATION
Through-Hole
(-01)
=(9,65 mm)
.380"
Surface Mount
(-02)
=(13,71 mm)
.540"
APPLICATION
SPECIFIC
(11,18 mm)
.440"
to
(35,56 mm)
1.400"
(2,00 mm)
.0787"
pitch
–RA1
–RA2
Call Samtec for elevated
board stacking applications.
LS2
1
NO. PINS
PER ROW
LEAD
STYLE
PLATING
OPTION
D
TAIL
OPTION
OPTION
– 01
05, 10, 15,
20, 25, 30
=Through-
hole
–01 only
–K
= (6,30 mm)
.248" DIA
Polyimide
Film Pick &
Place Pad
(–02 only)
Processing:
Lead–Free Solderable:
Yes
SMT Lead Coplanarity:
(0,15 mm) .006" max
–F
= Gold flash on contact,
Matte Tin on tail
– RA1
= Right
Angle
(Shroud
Down)
– 02
= Surface
Mount
–L
= 10µ" (0,25 µm) Gold
on contact, Matte Tin on tail
Note:
Other Gold plating
options available.
Contact Samtec.
– RA2
= Right
Angle
(Shroud
Up)
–TR
= Tape
& Reel
Packaging
APPLICATION
SPECIFIC OPTION
Alignment pin.
Call Samtec.
No. of positions x
(2,00) .0787 + (1,57) .062
(5,27)
.208
(2,00)
.0787
(3,07)
.121
(6,35)
.250
(2,29)
.090
–RA1
(8,38)
.330
(6,83)
.269
(2,00)
.0787
Note:
Some lengths,
styles and options are
non-standard, non-returnable.
Style –02
(0,50)
.020
SQ
Style –01
(2,29)
.090
(1,78)
.070
(2,00)
.0787
–RA2
WWW.SAMTEC.COM

LS2-125-01-L-D-RA2-TR Related Products

LS2-125-01-L-D-RA2-TR LS2-120-01-L-D-RA2-TR LS2-125-01-F-D-RA1-TR LS2-125-01-F-D-RA2-TR LS2-125-02-F-D-K LS2-130-01-L-D-RA2-TR LS2-130-02-F-D-K
Description Board Connector, 50 Contact(s), 2 Row(s), Hermaphroditic, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, ROHS COMPLIANT Board Connector, 40 Contact(s), 2 Row(s), Hermaphroditic, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, ROHS COMPLIANT Board Connector, 50 Contact(s), 2 Row(s), Hermaphroditic, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, ROHS COMPLIANT Board Connector, 50 Contact(s), 2 Row(s), Hermaphroditic, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, ROHS COMPLIANT Board Connector, 50 Contact(s), 2 Row(s), Hermaphroditic, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, ROHS COMPLIANT Board Connector, 60 Contact(s), 2 Row(s), Hermaphroditic, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, ROHS COMPLIANT Board Connector, 60 Contact(s), 2 Row(s), Hermaphroditic, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, ROHS COMPLIANT
Is it Rohs certified? conform to conform to conform to conform to conform to conform to conform to
Maker SAMTEC SAMTEC SAMTEC SAMTEC SAMTEC SAMTEC SAMTEC
package instruction ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT
Reach Compliance Code compliant compliant compliant compliant compliant compliant compliant
Factory Lead Time 2 weeks 2 weeks 2 weeks 2 weeks 2 weeks 2 weeks 2 weeks
body width 0.208 inch 0.208 inch 0.208 inch 0.208 inch 0.208 inch 0.208 inch 0.208 inch
subject depth 0.399 inch 0.399 inch 0.399 inch 0.399 inch 0.33 inch 0.399 inch 0.33 inch
body length 2.03 inch 1.636 inch 2.03 inch 2.03 inch 2.03 inch 2.423 inch 2.423 inch
Connector type BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR
Contact to complete cooperation MATTE TIN OVER NICKEL MATTE TIN OVER NICKEL MATTE TIN OVER NICKEL MATTE TIN OVER NICKEL MATTE TIN OVER NICKEL MATTE TIN OVER NICKEL MATTE TIN OVER NICKEL
Contact completed and terminated Matte Tin (Sn) - with Nickel (Ni) barrier Matte Tin (Sn) - with Nickel (Ni) barrier Matte Tin (Sn) - with Nickel (Ni) barrier Matte Tin (Sn) - with Nickel (Ni) barrier Matte Tin (Sn) - with Nickel (Ni) barrier Matte Tin (Sn) - with Nickel (Ni) barrier Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender HERMAPHRODITIC HERMAPHRODITIC HERMAPHRODITIC HERMAPHRODITIC HERMAPHRODITIC HERMAPHRODITIC HERMAPHRODITIC
Contact material NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
contact mode RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Contact style SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT
DIN compliance NO NO NO NO NO NO NO
Filter function NO NO NO NO NO NO NO
IEC compliance NO NO NO NO NO NO NO
maximum insertion force 1.112 N 1.112 N 1.112 N 1.112 N 1.112 N 1.112 N 1.112 N
Insulator color BLACK BLACK BLACK BLACK BLACK BLACK BLACK
insulator material LIQUID CRYSTAL POLYMER (LCP) LIQUID CRYSTAL POLYMER (LCP) LIQUID CRYSTAL POLYMER (LCP) LIQUID CRYSTAL POLYMER (LCP) LIQUID CRYSTAL POLYMER (LCP) LIQUID CRYSTAL POLYMER (LCP) LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code e3 e3 e3 e3 e3 e3 e3
MIL compliance NO NO NO NO NO NO NO
Plug contact pitch 0.079 inch 0.079 inch 0.079 inch 0.079 inch 0.079 inch 0.079 inch 0.079 inch
Match contact row spacing 0.079 inch 0.079 inch 0.079 inch 0.079 inch 0.079 inch 0.079 inch 0.079 inch
Plug information MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE
Mixed contacts NO NO NO NO NO NO NO
Installation option 1 LOCKING LOCKING LOCKING LOCKING LOCKING LOCKING LOCKING
Installation method RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE
Installation type BOARD BOARD BOARD BOARD BOARD BOARD BOARD
Number of connectors ONE ONE ONE ONE ONE ONE ONE
PCB row number 2 2 2 2 2 2 2
Number of rows loaded 2 2 2 2 2 2 2
Maximum operating temperature 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
PCB contact pattern RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
PCB contact row spacing 2.0066 mm 2.0066 mm 2.0066 mm 2.0066 mm 4.445 mm 2.0066 mm 4.445 mm
Plating thickness 10u inch 10u inch FLASH inch FLASH inch FLASH inch 10u inch FLASH inch
polarization key ENDS ENDS ENDS ENDS ENDS ENDS ENDS
Rated current (signal) 3.2 A 3.2 A 3.2 A 3.2 A 3.2 A 3.2 A 3.2 A
Guideline UL UL UL UL UL UL UL
reliability COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL
Terminal pitch 2 mm 2 mm 2 mm 2 mm 2 mm 2 mm 2 mm
Termination type SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER
Total number of contacts 50 40 50 50 50 60 60
Evacuation force-minimum value .834 N .834 N .834 N .834 N .834 N .834 N .834 N
Other features SHROUDED,POLARIZED,ALIGN AND LATCH,TIGER BUY CONTACT SHROUDED,POLARIZED,ALIGN AND LATCH,TIGER BUY CONTACT SHROUDED,POLARIZED,ALIGN AND LATCH,TIGER BUY CONTACT SHROUDED,POLARIZED,ALIGN AND LATCH,TIGER BUY CONTACT - SHROUDED,POLARIZED,ALIGN AND LATCH,TIGER BUY CONTACT -
Terminal length 0.09 inch 0.09 inch 0.09 inch 0.09 inch - 0.09 inch -
