47151-8061 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 47151-8061

47151-8061: Description0.50mm (.020") Pitch HDMI* Receptacle, Right Angle, Through Hole Shell Tab Length 2.20mm (.087") with Dimple, Contact Gold (Au) Flash Plating, without Back Cover; CategoryThe connector The connector; File Size362KB，6 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

47151-8061 Overview

0.50mm (.020") Pitch HDMI* Receptacle, Right Angle, Through Hole Shell Tab Length 2.20mm (.087") with Dimple, Contact Gold (Au) Flash Plating, without Back Cover

47151-8061 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknown
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact material	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 05/19/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA

Part Number:

Status:

Overview:

Description:

0471518061

Active

high_definition_multimedia_interface_hdmi

0.50mm (.020") Pitch HDMI* Receptacle, Right Angle, Through Hole Shell Tab Length

2.20mm (.087") with Dimple, Contact Gold (Au) Flash Plating, without Back Cover,

without Upper Flange, Tape and Reel Package, Lead Free

Documents:

3D Model

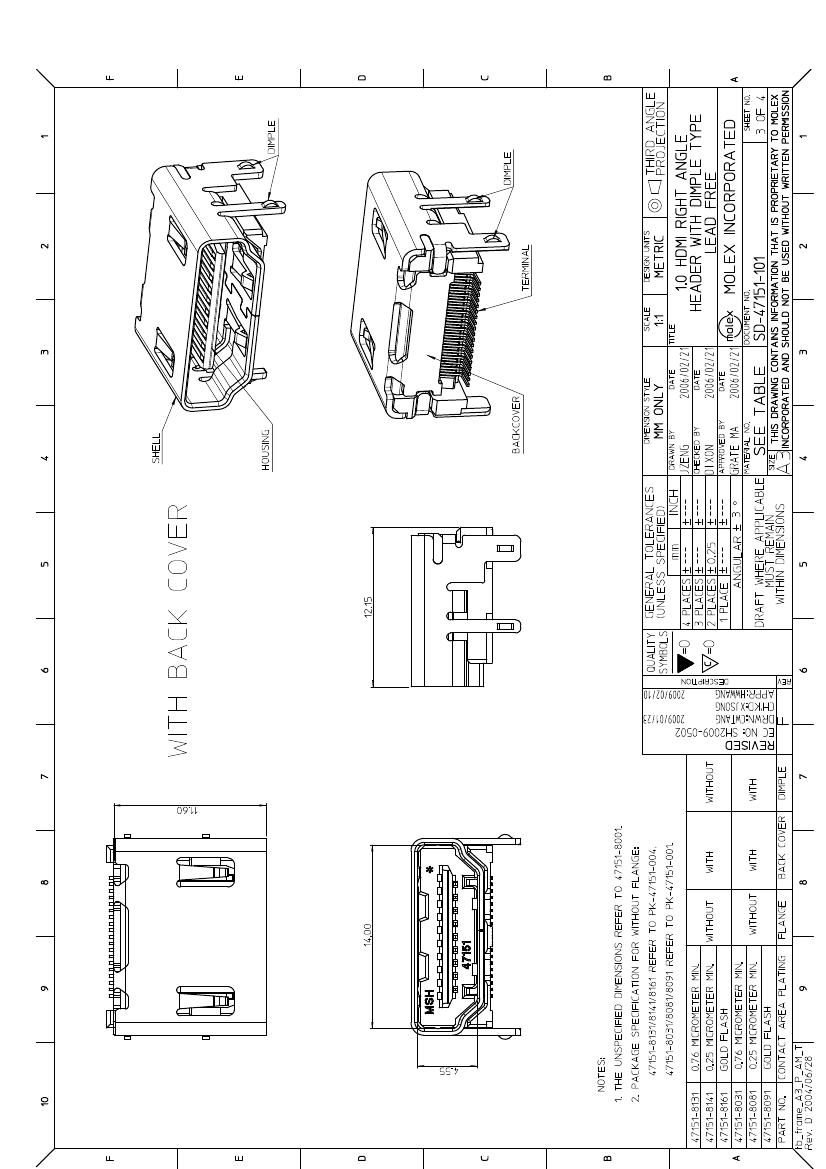

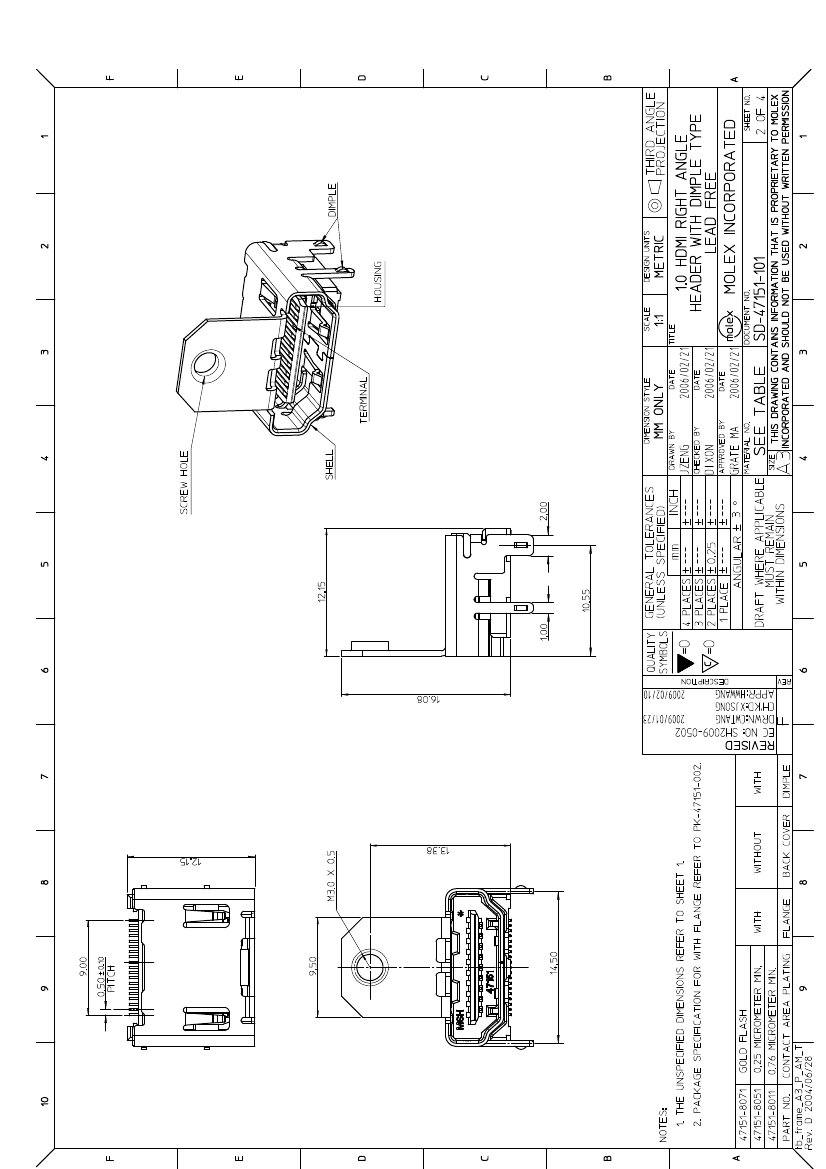

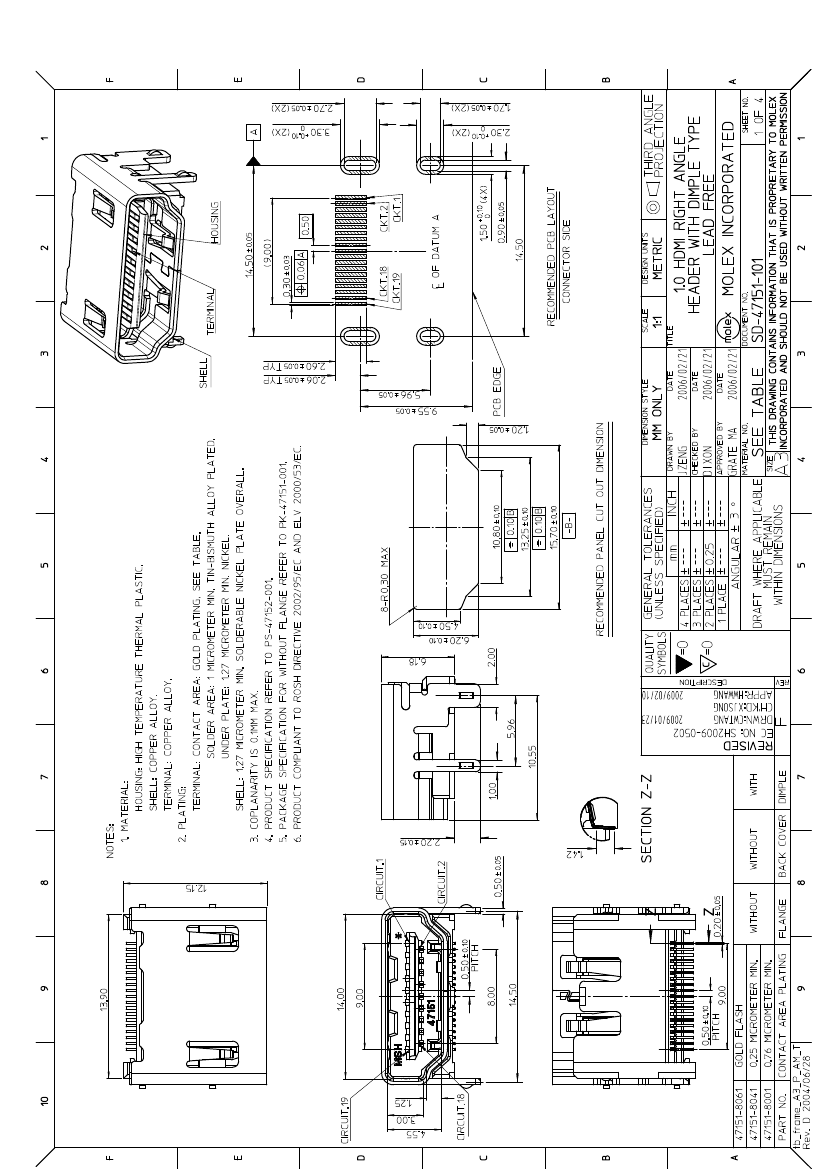

Drawing (PDF)

Product Specification PS-47152-001 (PDF)

RoHS Certificate of Compliance (PDF)

General

Product Family

Series

Application

Component Type

Overview

Product Name

Type

I/O Connectors

47151

Wire-to-Board

Receptacle

high_definition_multimedia_interface_hdmi

HDMI

N/A

Physical

Boot Color

Circuits (Loaded)

Gender

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PCB Locator

PCB Retention

Packaging Type

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Polarized to PCB

Ports

Temperature Range - Operating

Termination Interface: Style

Waterproof / Dustproof

Wire Size AWG

N/A

Male

Yes

Copper Alloy

Gold

Tin-Bismuth

High Temperature Thermoplastic

Right Angle

Yes

Embossed Tape on Reel

Without Flange

0.020 In

0.50 mm

0.020 In

0.50 mm

0.25

Yes

-20°C to +85°C

Surface Mount

N/A

EU RoHS

ELV and

Complia

REACH S

Not Revi

Halogen

Status

Not Revi

Need mo

environm

Email pro

For a mu

Complian

Please vi

non-prod

47151S

Mates

88768

Adapte

Electrical

Current - Maximum per Contact

Shielded

Voltage - Maximum

.5A

Yes

40V DC
