SG-615PHFREQC0 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> SG-615PHFREQC0

SG-615PHFREQC0: DescriptionCRYSTAL OSCILLATOR, CLOCK, 26.0001 MHz - 66.6667 MHz, CMOS OUTPUT, SO-4; CategoryPassive components oscillator; File Size89KB，3 Pages; ManufacturerSeiko Epson Corporation

Download Datasheet Parametric Compare View All

SG-615PHFREQC0 Overview

CRYSTAL OSCILLATOR, CLOCK, 26.0001 MHz - 66.6667 MHz, CMOS OUTPUT, SO-4

SG-615PHFREQC0 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Seiko Epson Corporation
Reach Compliance Code	unknown
Other features	AT CUT CRYSTAL
maximum descent time	7 ns
Frequency Adjustment - Mechanical	NO
frequency stability	100%
Manufacturer's serial number	SG-615
Installation features	SURFACE MOUNT
Maximum operating frequency	66.6667 MHz
Minimum operating frequency	26.0001 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	CMOS
Output load	50 pF
physical size	14mm x 8.65mm x 4.06mm
longest rise time	7 ns
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	60/40 %

Preview

Download Datasheet

View All

Crystal oscillator

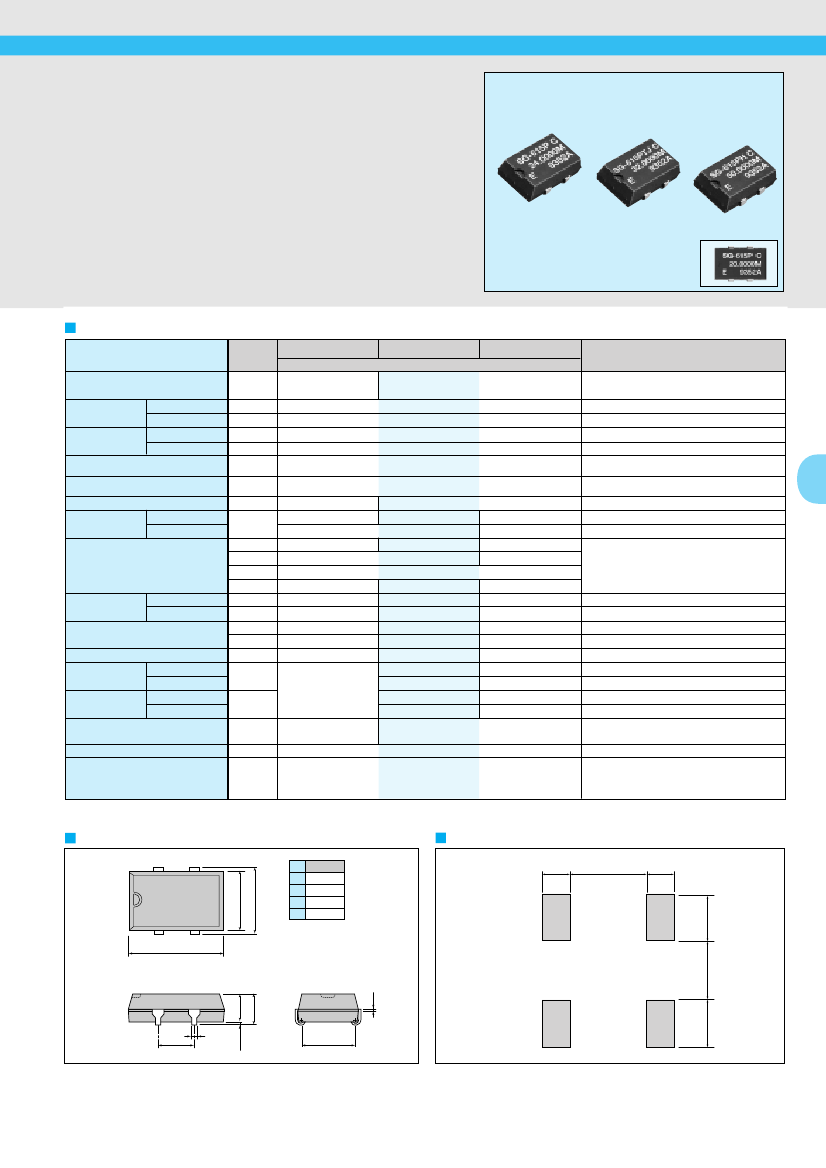

SOJ HIGH-FREQUENCY CRYSTAL OSCILLATOR

SG-615 series

• High-density mounting-type SMD.

• A general-purpose SMD with heat-resisting cylindrical AT-cut

crystal unit and allowing almost the same soldering temperature

as SMD IC.

• Cylindrical AT crystal unit builtin, thus assuring high reliability.

• Provided with output enable function.

• Low current consumption.

Actual size

Specifications (characteristics)

Item

Output frequency range

Power source

voltage

Temperature

range

Max. supply voltage

Operating voltage

Storage temperature

Operating temperature

Symbol

-GND

STG

OPR

SOL

∆f/f

Iop

)

TLH

8ns max.

THL

OSC

S.R.

SG-615P

SG-615PTJ

Specifications

SG-615PH

Remarks

1.0250 MHz to 26.0000 MHz

26.0001 MHz to 66.6667 MHz

-0.3V to +7.0V

5.0V±0.5V

-55˚C to +125˚C

Soldering condition

Frequency stability

Current consumption

C-MOS level

Duty

TTL level

Output voltage

Output load

condition (fan out)

C-MOS

TTL

-20˚C to 70˚C (-40˚C to 85˚C)

Twice at under 260˚C within 10 sec.

or under 230˚C within 3 min.

B: ±50ppm

C: ±100ppm

Stored as bare product after unpacking

55MHz max.(-40˚C to +85˚C)

B type is possible up to 55 MHz

No load condition

C-MOS load: 1/2V

TTL load: 1.4V

Output enable/disable input voltage

Output disable current

Output rise time

C-MOS level

TTL level

Output fall time

C-MOS level

TTL level

Oscillation start up time

Aging

Shock resistance

Note:

23mA max.

35mA max.

40% to 60%

—

40% to 60%

45% to 55%

—

-0.4V min.

2.4V min.

-0.4V min.

-400µA

-4mA

0.4V max.

16mA

8mA

4mA

50pF max.

—

50pF max.

10TTL max.

5TTL max.

—

2.0V min.

3.5V min.

2.0V min.

0.8V max.

1.5V max.

0.8V max.

=1µA max.(OE=V

)

=-100µA min.(OE=GND) I

=-500µA min.(OE=GND) PTJ

OE=GND

C-MOS load: 20

%→

TTL load: 0.4V

→

2.4V

C-MOS load: 80

%→

TTL load: 2.4V

→

0.4V

Time at 4.5V to be 0 sec.

Ta= 25˚C, V

= 5V, first year

12mA max.

28mA max.

—

5ns max.

—

5ns max.

20mA max.

7ns max.

—

7ns max.

—

4ms max.

10ms max.

±5ppm/year max.

±20ppm max.

Three drops on a hard board from 75 cm or

excitation test with 3000G x 0.3ms x 1/2sine

wave in 3 directions

• Unless otherwise stated, characteristics (specifications) shown in the above table are based on the rated operating temperature and voltage condition.

•

External by-pass capacitor is recommended.

(Unit: mm)

NO.

Pin terminal

GND

OUT

9.8 max

External dimensions

Recommended soldering pattern

1.3

3.8

1.3

(Unit: mm)

14.0 max.

5.8

4.7 max.

4.06

0.25

5.08

0.51

0.25 min.

7.62

3.0

SG-615P C

20.0000M

E 9352A

8.65

SG-615PHFREQC0 Related Products

	SG-615PHFREQC0	SG-615PFREQC3	SG-615PTJFREQB3	SG-615PFREQB0	SG-615PFREQC0
Description	CRYSTAL OSCILLATOR, CLOCK, 26.0001 MHz - 66.6667 MHz, CMOS OUTPUT, SO-4	CRYSTAL OSCILLATOR, CLOCK, 1.025 MHz - 26 MHz, CMOS/TTL OUTPUT, SO-4	CRYSTAL OSCILLATOR, CLOCK, 26.0001 MHz - 55 MHz, TTL OUTPUT, SO-4	CRYSTAL OSCILLATOR, CLOCK, 1.025 MHz - 26 MHz, CMOS/TTL OUTPUT, SO-4	CRYSTAL OSCILLATOR, CLOCK, 1.025 MHz - 26 MHz, CMOS/TTL OUTPUT, SO-4
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Other features	AT CUT CRYSTAL	AT CUT CRYSTAL	AT CUT CRYSTAL	AT CUT CRYSTAL	AT CUT CRYSTAL
maximum descent time	7 ns	8 ns	5 ns	8 ns	8 ns
Frequency Adjustment - Mechanical	NO	NO	NO	NO	NO
frequency stability	100%	100%	50%	50%	100%
Manufacturer's serial number	SG-615	SG-615	SG-615	SG-615	SG-615
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Maximum operating frequency	66.6667 MHz	26 MHz	55 MHz	26 MHz	26 MHz
Minimum operating frequency	26.0001 MHz	1.025 MHz	26.0001 MHz	1.025 MHz	1.025 MHz
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
Oscillator type	CMOS	CMOS/TTL	TTL	CMOS/TTL	CMOS/TTL
Output load	50 pF	10 TTL, 50 pF	5 TTL	10 TTL, 50 pF	10 TTL, 50 pF
physical size	14mm x 8.65mm x 4.06mm	14mm x 8.65mm x 4.06mm	14mm x 8.65mm x 4.06mm	14mm x 8.65mm x 4.06mm	14mm x 8.65mm x 4.06mm
longest rise time	7 ns	8 ns	5 ns	8 ns	8 ns
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES
maximum symmetry	60/40 %	60/40 %	55/45 %	60/40 %	60/40 %
Maker	Seiko Epson Corporation	-	Seiko Epson Corporation	Seiko Epson Corporation	Seiko Epson Corporation
