BU-64843BC-E02

Description
Mil-Std-1553 Controller, 2 Channel(s), 0.125MBps, CMOS, PBGA324, BGA-324
CategoryThe embedded processor and controller    Microcontrollers and processors
File Size861KB,4 Pages
ManufacturerData Device Corporation
Download Datasheet Parametric View All

BU-64843BC-E02 Overview

Mil-Std-1553 Controller, 2 Channel(s), 0.125MBps, CMOS, PBGA324, BGA-324

BU-64843BC-E02 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerData Device Corporation
Parts packaging codeBGA
package instructionBGA, BGA324,18X18,40
Contacts324
Reach Compliance Codecompliant
Address bus width16
boundary scanNO
maximum clock frequency20 MHz
letter of agreementMIL STD 1553A; MIL STD 1553B; MCAIR; STANAG-3838
Data encoding/decoding methodsBIPH-LEVEL(MANCHESTER)
Maximum data transfer rate0.125 MBps
External data bus width16
JESD-30 codeS-PBGA-B324
JESD-609 codee0
length20.7 mm
low power modeYES
Number of serial I/Os2
Number of terminals324
Maximum operating temperature100 °C
Minimum operating temperature-40 °C
Package body materialPLASTIC/EPOXY
encapsulated codeBGA
Encapsulate equivalent codeBGA324,18X18,40
Package shapeSQUARE
Package formGRID ARRAY
Peak Reflow Temperature (Celsius)NOT SPECIFIED
power supply3.3 V
Certification statusNot Qualified
Filter levelMIL-STD-883
Maximum seat height3.05 mm
Maximum supply voltage3.6 V
Minimum supply voltage3 V
Nominal supply voltage3.3 V
surface mountYES
technologyCMOS
Temperature levelINDUSTRIAL
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formBALL
Terminal pitch1 mm
Terminal locationBOTTOM
Maximum time at peak reflow temperatureNOT SPECIFIED
width20.7 mm
uPs/uCs/peripheral integrated circuit typeSERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553
Micro-ACE
®
, Micro-ACE-TE, and
PCI Micro-ACE-TE
Product Brief
Models: BU-6474XB, BU-6484/6486/6586XB, BU-61740/61840/61860B3

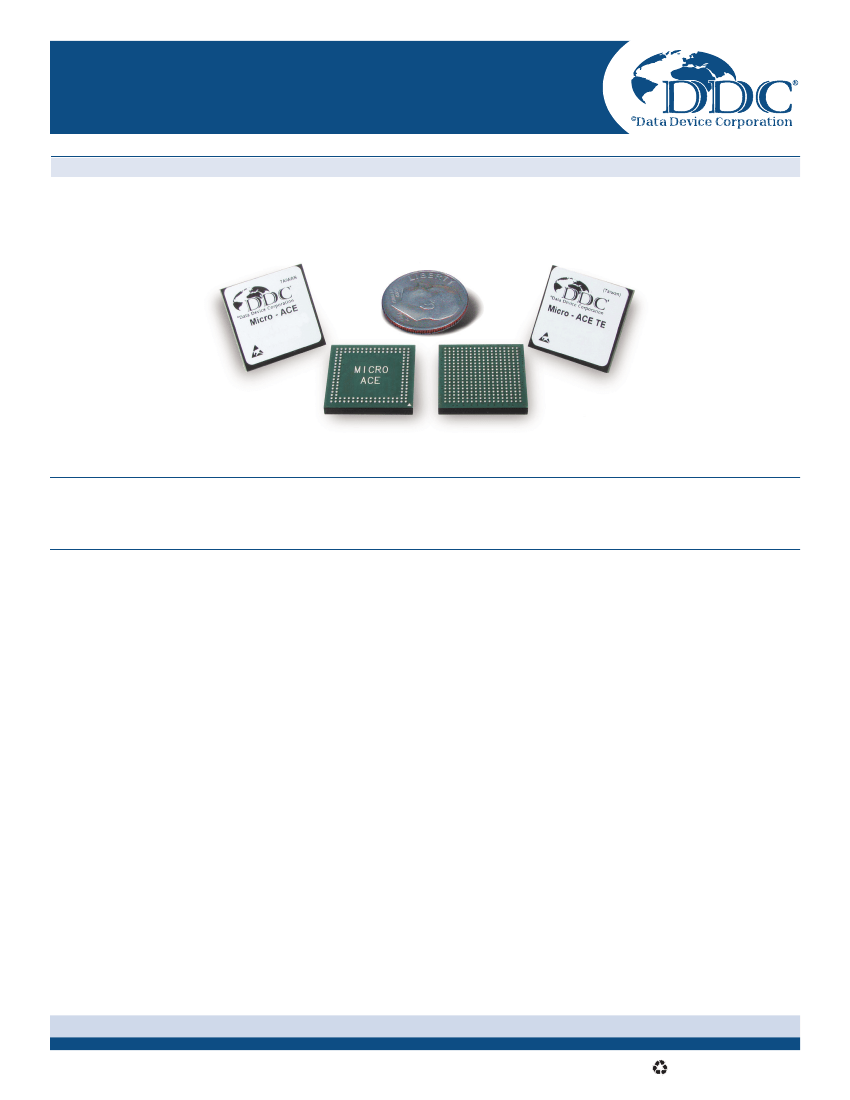

DDC's Micro-ACE series of MIL-STD-1553 terminals with 1553 protocol, memory, and either +3.3V or +5V transceiver, in
a small plastic BGA. This series is ideal for use in mixed voltage applications where PC board space is limited.
Key Features
• 1 Dual Redundant MIL-STD-1553 Channel
- BC, RT, MT or RT/MT Functionality
- Supports MIL-STD-1553 A/B
- Supports MIL-STD-1760
- Supports STANAG 3838
- Supports MacAir
• Tx Inhibit Pin for MT Only Applications
• RT Only Version Available
• Small Plastic Package
- 128-ball or 324-ball BGA Package
- 0.815" x 0.815" (20.7 mm x 20.7 mm) Package
- 0.120" (3.05 mm) Max Height
• Extended Temperature Range
- -40ºC to +100ºC for Micro-ACE-TE versions
- -40°C to +85°C for Micro-ACE version
• DO-254 Certifiable
• 4K or 64K x 16 RAM
• +3.3V, +5V, or Mixed Voltage Operation
• Generic Processor or PCI Interface
Benefits
• Field Proven and Reliable Technology with over 62 Million
Hours of In-Service History
• Small Footprint
- Saves Board Space
- Decreases Weight
• Software Compatible with ACE
®
, Mini-ACE
®
, Enhanced
Mini-ACE
®
, Mini-ACE
®
Mark3, and Total-ACE
®
• Multiple Thermal Balls Improve Heatsinking
Applications
• Digital Flight Data Recorders
• Telemetry/Instrumentation Recorders
• Mission Computers
• Small Avionics Displays
• Line Replaceable Units (LRU’s)
• Radar Systems/Situational Awareness
• Munitions
• Ground Vehicles
• Commercial Aerospace
For more information:
www.ddc-web.com/BU-6474XB | www.ddc-web.com/BU-6174XB
© 2002, 2010 Data Device Corporation. All trademarks are the property of their respective owners.
Printed on recycled paper.
