This document was generated on 06/04/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA
Part Number:
Status:
Overview:
Description:
0039532255
Active
1.25mm (.049") Pitch FFC/FPC Connector, Through-Hole, Vertical, ZIF, 25 Circuits,
Lead-free
Agency Certification
UL
E29179
General
Product Family
Series
Overview
Product Name
FFC/FPC Connectors
5597
ffc_fpc_throughhole
N/A
EU RoHS
ELV and
Complia
REACH S
Not Revie
Halogen
Status
Not Revi
Need mo
environm
Email pro
For a mu
Complian
Physical
Circuits (Loaded)
Color - Resin
Contact Position
Durability (mating cycles max)
Entry Angle
Flammability
Mated Height (in)
Mated Height (mm)
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to PCB
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
Wire/Cable Type
25
Natural
N/A
30
Vertical
94V-0
0.295 In
7.50 mm
Phosphor Bronze
Tin-Bismuth
Tin-Bismuth
Polyester
1
Vertical
0.138 In
3.50 mm
No
None
Tray
0.049 In
1.25 mm
40
1
40
1
No
No
No
-20°C to +80°C
Through Hole
FFC/FPC
Please vi
non-prod
Search
5597Se
Electrical
Current - Maximum per Contact
Voltage - Maximum
1A
200V
Material Info
Old Part Number
5597-25CPB7F
Reference - Drawing Numbers
Packaging Specification
SPK-5597-001
Product Specification

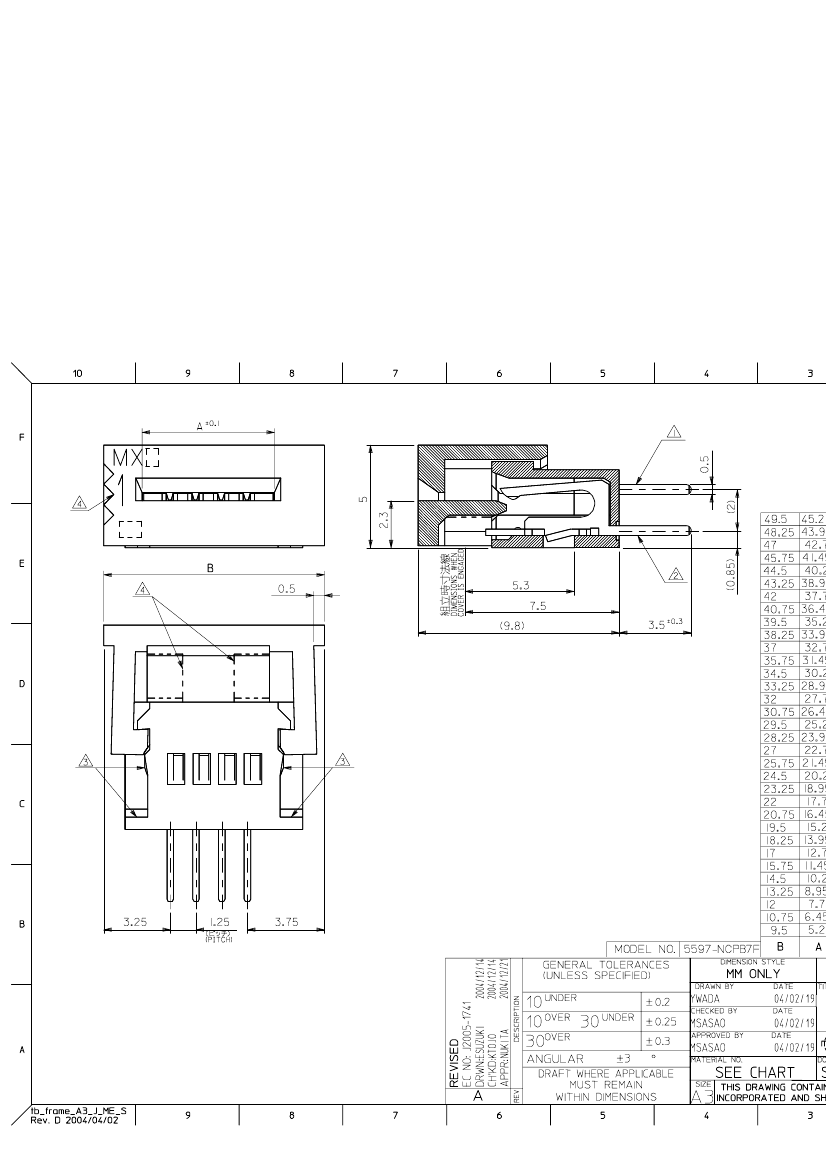

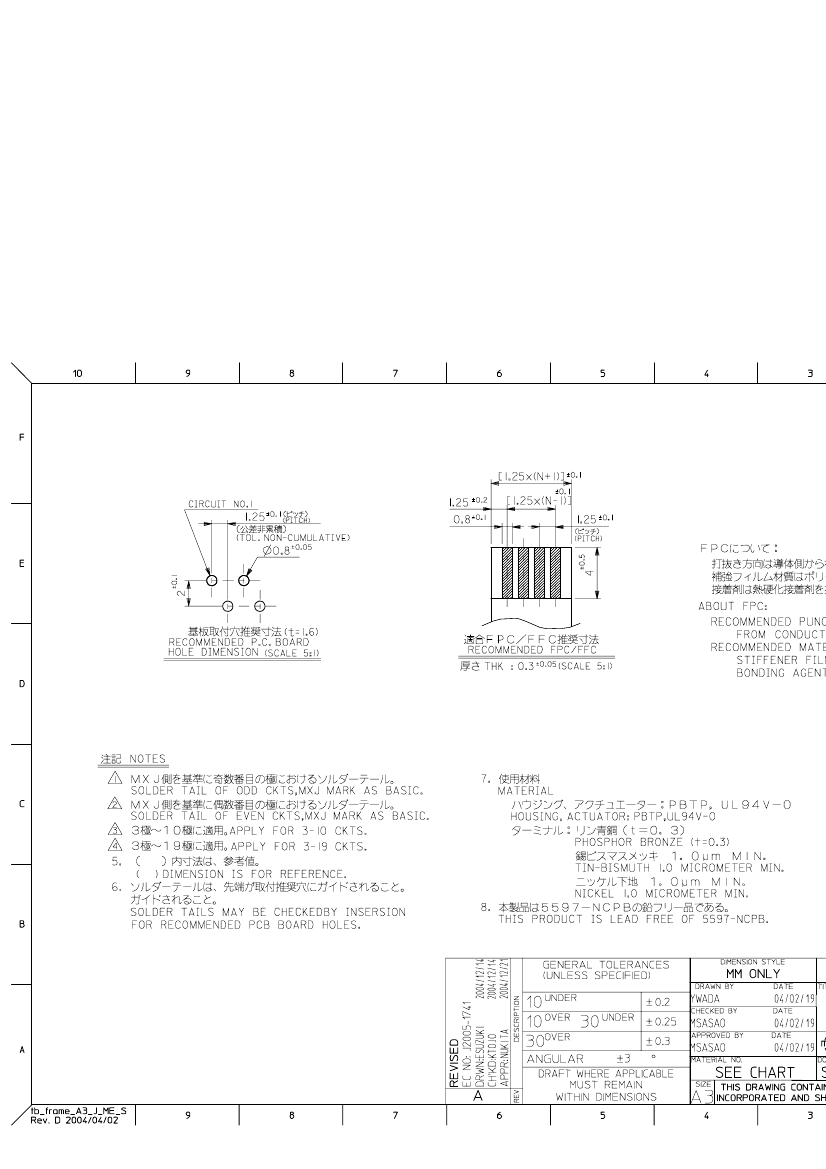

Sales Drawing
PS-5597-004, RPS-5597-005, RPS-5597-006,
RPS-5597-013, RPS-5597-014, RPS-5597-015,
RPS-5597-016
SD-5597-007
This document was generated on 06/04/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA
