6800-03-100B: Description1.27mm (.050") Pitch Round Conductor Flat Cable - 28 AWG (7 x 36) Stranded Tinned, 3 Circuits; File Size300KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet View All

6800-03-100B Overview

1.27mm (.050") Pitch Round Conductor Flat Cable - 28 AWG (7 x 36) Stranded Tinned, 3 Circuits

Preview

Download Datasheet

View All

This document was generated on 03/26/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA

Part Number:

Status:

Description:

0082285703

Active

1.27mm (.050") Pitch Round Conductor Flat Cable - 28 AWG (7 x 36) Stranded Tinned,

3 Circuits, Reel 30.48m (100.0' ) Length

Documents:

Drawing (PDF)

RoHS Certificate of Compliance (PDF)

Agency Certification

CSA

LR61126

E61522

General

Product Family

Series

Crimp Quality Equipment

Geographic Area

Product Name

Cable

6800

Yes

Asia

Ribbon

EU RoHS

ELV and

Complia

REACH S

Not Revi

Halogen

Status

Not Revi

Need mo

environm

Physical

Cable Length

Circuits (Loaded)

Insulation

Packaging Type

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Temperature Range - Operating

Wire Size AWG

Wire/Cable Type

30.48m (100.0' )

PVC

Reel

0.050 In

1.27 mm

-20°C to +105°C

(7x36) Stranded, Tinned

Email pro

For a mu

Complian

Please vi

non-prod

6800Se

Electrical

Current - Maximum per Contact

Voltage - Maximum

N/A

300V

Use W

70121

90584

Material Info

Old Part Number

6800-03-100B

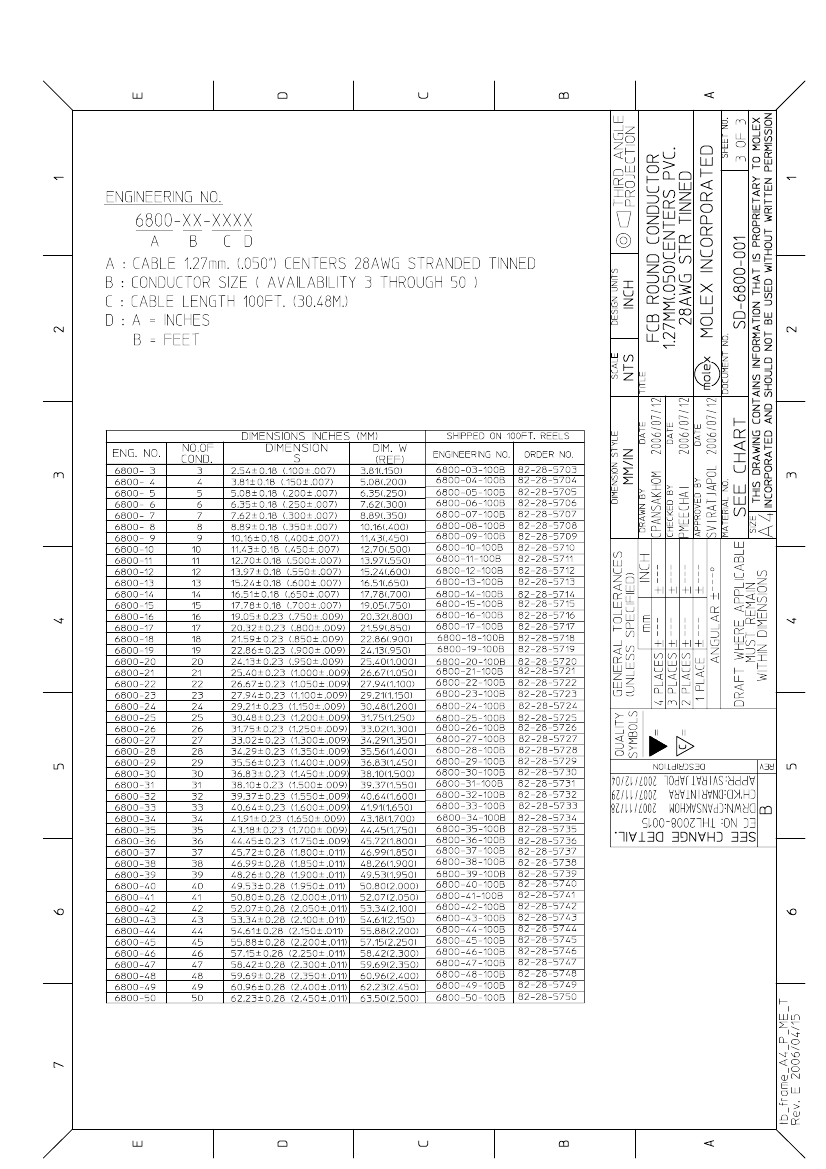

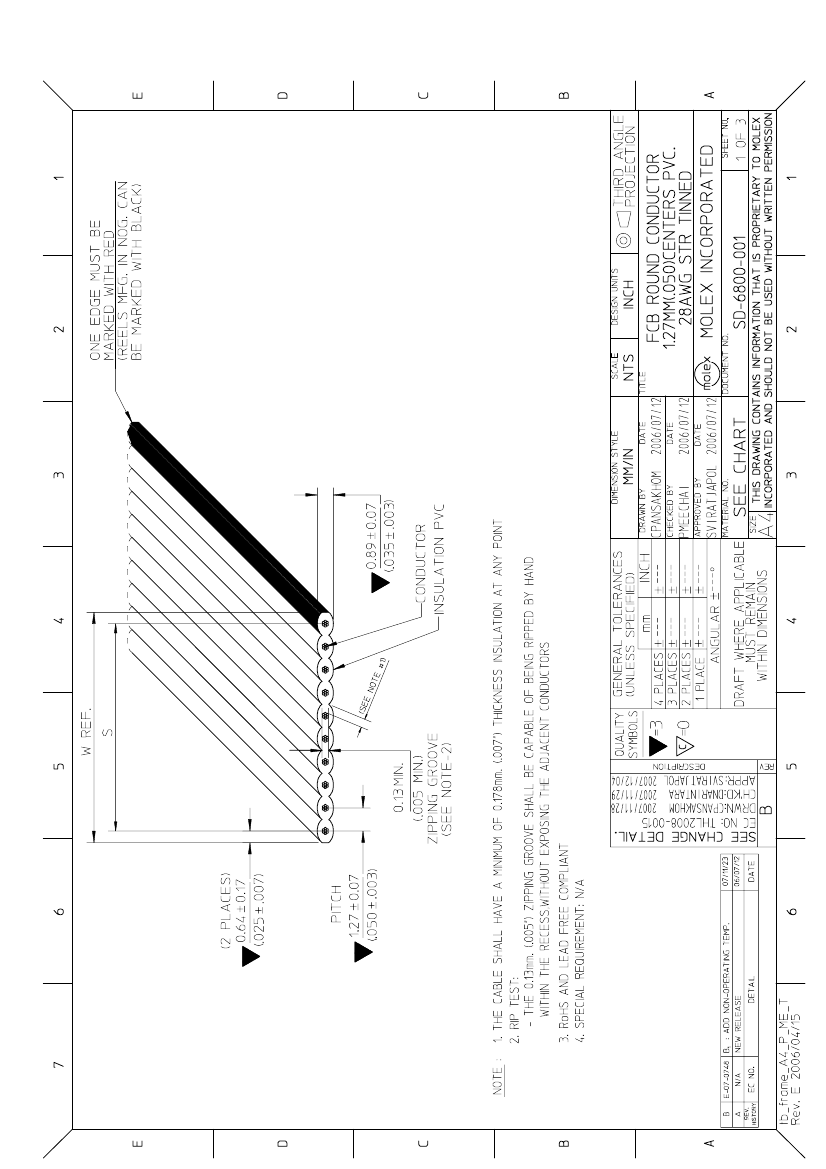

Reference - Drawing Numbers

Sales Drawing

SD-6800-001

This document was generated on 03/26/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA
