70204-0419: Description2.54mm (.100") Pitch C-Grid Header, Dual Row, Shrouded, with PC Slot and Guide Ear, 72 Circuits; File Size221KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet View All

70204-0419 Overview

2.54mm (.100") Pitch C-Grid Header, Dual Row, Shrouded, with PC Slot and Guide Ear, 72 Circuits

Preview

Download Datasheet

View All

This document was generated on 03/31/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA

Part Number:

Status:

Description:

0025022072

Active

2.54mm (.100") Pitch C-Grid® Header, Dual Row, Shrouded, with PC Slot and Guide

Ear, 72 Circuits, Tn (Sn) Plating

Documents:

3D Model

Packaging Specification (PDF)

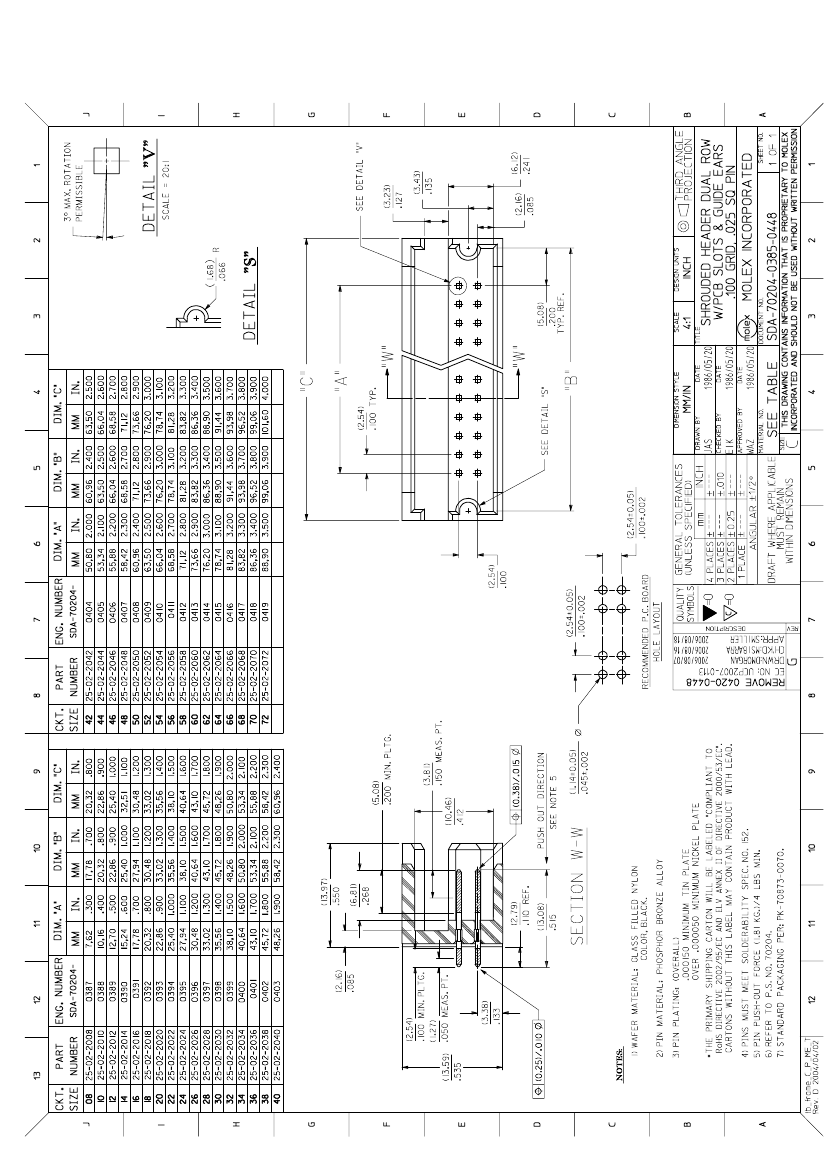

Drawing (PDF)

Product Specification PS-70204 (PDF)

RoHS Certificate of Compliance (PDF)

Agency Certification

CSA

UL

LR19980

E29179

General

Product Family

Series

Application

Product Name

PCB Headers

70204

Board-to-Board

C-Grid®

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Flammability

Glow-Wire Compliant

Guide to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Temperature Range - Operating

Termination Interface: Style

No

72

Black

25

94V-0

No

Yes

None

Brass, Phosphor Bronze

Tin

Nylon

2

Vertical

0.110 In

2.79 mm

No

None

Tray

0.100 In

2.54 mm

150

3.81

150

3.81

Yes

No

Fully

No

-40°C to +105°C

Through Hole

EU RoHS

ELV and

Complia

REACH S

Contains

Halogen

Status

Not Revi

Need mo

environm

Email pro

For a mu

Complian

Please vi

non-prod

Search

70204S

Mates

71973

Electrical

Current - Maximum per Contact

3A
