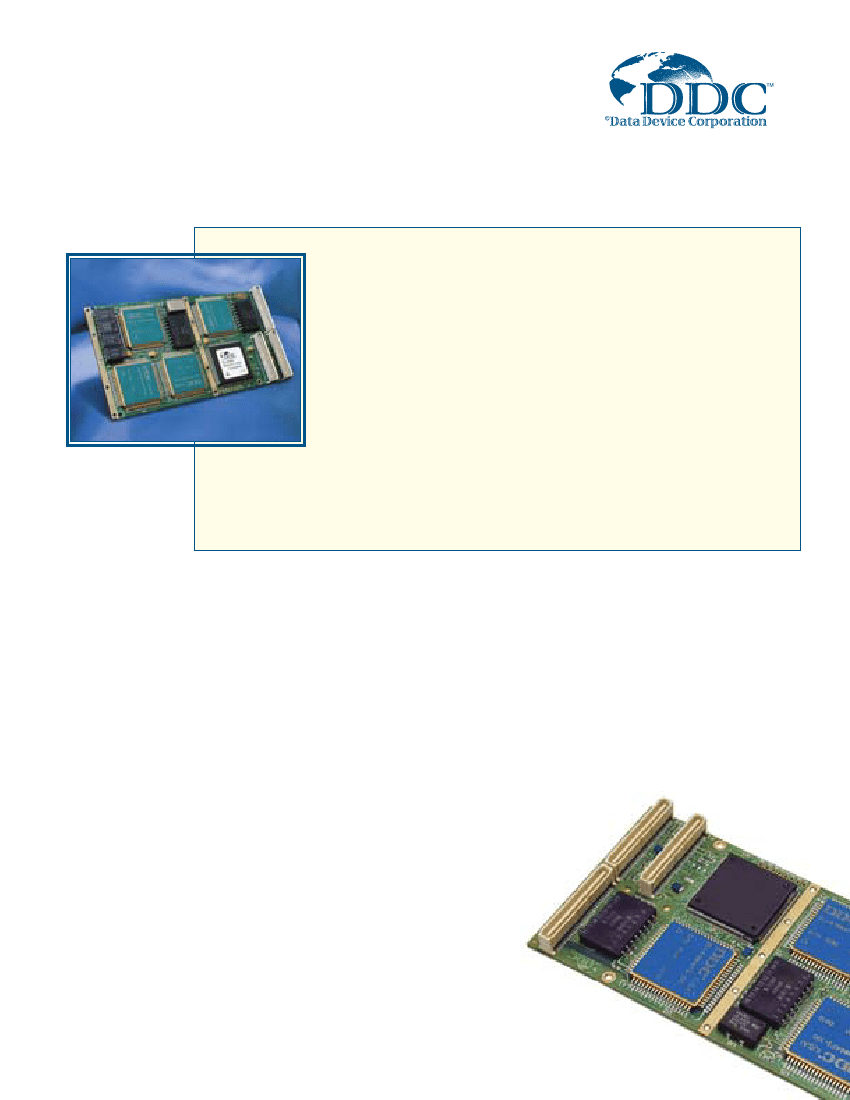

MIL-STD-1553 PMC Card
MODEL: BU-65565
www.ddc-web.com
FEATURES
•
•
•
•
•
•
•
•
Complete Off-the-Shelf Solution for Embedded MIL-STD-1553
Designed for Harsh Environments
Most Autonomous BC Architecture
Remote Terminal Flexibility
True Message Monitor
Autonomous Built-In Self-Test
FREE Supporting Software
Applications
- Mission Computers
- Flight Computers
- Communication Links
- Spacecraft
- Ground Vehicles
DESCRIPTION
The BU-65565 PCI Mezzanine (PMC) card offers a comprehensive COTS solution for interfacing between
embedded PCI and MIL-STD-1553 buses. The conduction cooled version, built to VITA-20 specifications,
features a conformally coated robust design with thermal vias, a heat spreading plane, and copper strips
providing a thermal interface to baseboard rails. The card has passed extensive shock and vibration testing.
The BU-65565 is also available as a convection-cooled card, with a choice of rear-panel, front-panel, or
rear- and front-panel input/output.
The BU-65565 includes one to four channels of DDC's field-proven, industry standard Enhanced Mini-ACE™.
This advanced bus controller architecture provides a high degree of flexibility and autonomy: improving
message scheduling control; minimizing host overhead for
asynchronous message insertion; and facilitating bulk data
transfers and double buffering, message retry and bus switch-
ing strategies, and data logging and fault reporting. In addi-
tion, the PMC card's remote terminal architecture meets all
common MIL-STD-1553 protocols. RT data buffering and inter-
rupt options offer robust support for synchronous and asynchro-
nous
messaging while ensuring data sample consistency and sup-
porting bulk data transfers.
Free BU-69090 software with a library supports all modes of
operation, VxWorks®, Linux®, Integrity®, and Windows® device
drivers (including source code), and an offline development
BU-65565 Block Diagram
Figure 1
PMC
P
n
4
Connector
AD31-AD0
PCI Address/Data,
Parity, and
Bus Command/Byte
Enable
PAR
C/BE[3]# - C/BE[0]#
33 MHz,
32-Bit
PCI Target
Interface
BU-61864
Enhanced
Mini-ACE
1553
BUS A
RTAD4-0, RTADP, EXT_TRIG/SSFLAG
FRAME#, IRDY#,
IDSEL, RST#
BU-61864
Enhanced
Mini-ACE
A15-A0
D15-D0
Control
BU-61864
Enhanced
Mini-ACE
1553
BUS B
RTAD4-0, RTADP, EXT_TRIG/SSFLAG
PCI Bus
PCI Control
TRDY#, STOP#,
DEVSEL#, PERR#, SERR#
1553
BUS C
RTAD4-0, RTADP, EXT_TRIG/SSFLAG
PCI Clock
CLK
PCI Interrupt
Request
INTA#
PCI
Configuration
Registers
BU-61864
Enhanced
Mini-ACE
1553
BUS D
RTAD4-0, RTADP, EXT_TRIG/SSFLAG
Complete Off-the-Shelf Solution for Embedded
MIL-STD-1553
-
-
-
-
-
Conduction or Convection Cooled PMC Card
One to Four MIL-STD-1553 Channels
FREE Library and VxWorks
®
Software Available
Each Channel Individually Programmable as BC, RT,
Monitor, or RT/Monitor
64K X 17 RAM Per Channel
- PCI Interface
- 33 MHz, 32-bit
- Target Interface
- 5V and 3.3V-Powered (5V-only Option)
Operates in 3.3V or 5V PCI Signaling Environments
PCI Local Bus Specification Revision 2.2
Transformer Coupled 1553 I/O
Option for Direct Coupling
Remote Terminal Flexibility
- Compatibility with ACE and Mini-ACE Applications
- Multiprotocol: MIL-STD-1553A/B, STANAG-3838
- Choice of Subaddress Single Message, Double Buffering,
or Circular Buffering; or Global Circular Buffering
- 50% and 100% Circular Buffer Rollover Interrupts
- Stack with Descriptors for Individual Messages
- Message Status, Time Tag, Command Word,
Data Pointer
- Hardware (via connector) or Software-Programmable
RT Address
- Programmable Command Illegalization
- Programmable Busy by Subaddress
- Interrupts on All Messages, or Individual Subaddresses
and/or Mode Codes
- 32-Entry Interrupt Status Queue
- Available with Option for RT AUTO-BOOT with BUSY Bit Set
for MIL-STD-1760 Applications
-
-
-
Designed for Extended Environments
- Conduction Cooled Version
- -55 to +85° C Temperature Range
- Constructed in Accordance with VITA-20
- Rear-Panel I/O
- Thermal Vias under Hottest Chips (transceivers)
- Convection Cooled Versions
- 0 to +70° C Temperature Range
- Rear-Panel, Front-Panel, or Front and
Rear-Panel I/O Options
- Shock and Vibration Test Data Available
- Shock: Three Pulses, Half Sine on Six (6) Axes
- Vibration: Random Input, One Hour Each Axes
Three Hours Total, 15 to 2000 Hz
True Message Monitor
- Selective Message Monitor
- Filter Based on RT Address, T/R bit, Subaddress
- True Message Monitor
- Command Stack
- Message Status, Time Tag, Command Word,
Data Pointer
Data Stack
- All Monitored Words Following (first) Command Word
50% and 100% Rollover Interrupts for Command and
Data Stacks
32-Entry Interrupt Status Queue
Simultaneous RT/Message Monitor Option
-
-
-
-
Most Autonomous BC Architecture
-
-
-
-
-
-
-
Built-in Message Sequence Control Engine
Defined Set of 20 Instructions
Control/Status Blocks for Individual Messages
Minor and Major Frame Scheduling
Asynchronous Message Insertion
Conditional Branching and Subroutines
General Purpose Queue: Message Status, Time Tag,
Immediate Data, Indirect Data
- Fully User-definable Interrupts
- Legacy Mode for Compatibility with ACE and
Mini-ACE Applications
Autonomous Built-In Self-Test
-
-
-
-
-
Protocol Self-Test
RAM Self-Test
Online Loopback Test
Capability for CH. A-to-CH. B Wraparound Test
Capability to Test Transmitter Timeout Function
Data Device Corporation
www.ddc-web.com
BU-65565
REV 3 - 04/06 - WEB
FREE Supporting Software
-
-
-
-
-
-
-
-
Complete BU-69090 Library
VxWorks, Linux, Integrity, and Windows Drivers
High-Level Register/Memory Initialization Routines
For All Modes, Creation of Consolidated Status + Data
Structures for Individual Messages in Host Memory
Memory Management Software
Open/Access/Close Model
Memory Allocation Performed Transparent to
Application Program
Management of Data Structures in Card RAM and
Host Memory
- BC Software
- Supports Full Use of BC Instruction Set
- Manages Creation of Data Blocks
- Creates BC Messages
- Create and Start BC Frames
- Creation of Message Control/Status Blocks
- RT Software
- Allocates RT Data Blocks
- Map Data Blocks to Subaddresses
- Command Illegalization
- Read Consolidated Message Structures From
Host Buffers
- Initialize and Manage Circular Buffers
- Monitor Software
- Enable Monitor Filtering for Specified Address/
T-R/Subaddresses
- Copy Monitored Messages Into Consolidated
Structures in Host Buffers
- Read Last Unread Message From Host Buffer
- Read Most Recent Message From Host Buffer
- VxWorks Driver
- Designed for Version 5.2 of Wind River's VxWorks
- For Power PC, Developed Using 750 Processor
- Version for Intel Pentium Platform Available
- Source Code Available
- Support of Offline Development Environment
- Allows Development on Desktop PC
- Generates Binary Image and 'C' Header Files
- Results in Reduced Embedded Code Size
- Reduced Computational Resources
- Reduces Software Validation and Documentation

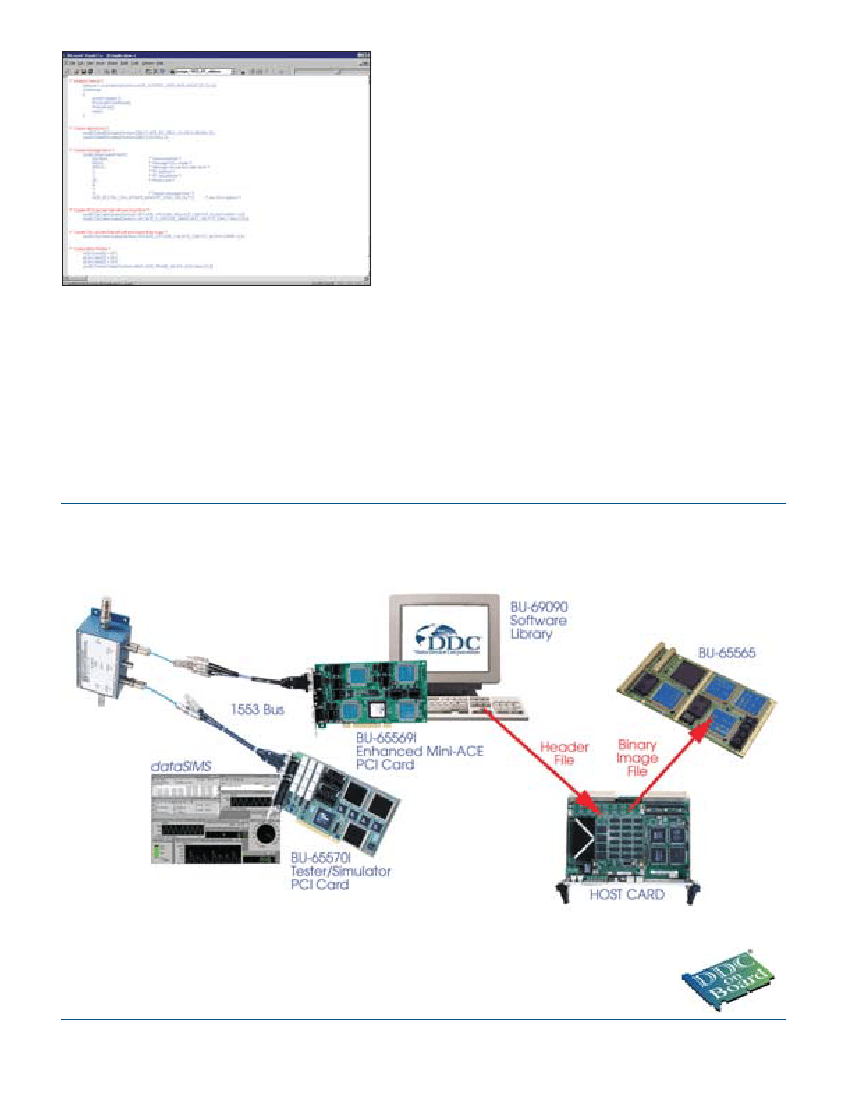

Offline Development (Software) Environment
Figure 2
Data Device Corporation
www.ddc-web.com
BU-65565
REV 3 - 04/06 - WEB
Specifications
PARAMETER
ABSOLUTE MAXIMUM RATINGS
Supply Voltage
+3.3V
+5V
POWER SUPPLY REQUIREMENTS
Voltages/Tolerance
+3.3 V (logic power)
+5 V (RAM and
transceiver power)
Current Drain (Total Hybrid)
BU-65565X1
+5 V
0% Transmit/Monitor
75% Duty Transmitter Cycle
+3.3 V (Logic)
BU-65565X2
+5 V
0% Transmit/Monitor
75% Duty Transmitter Cycle
+3.3 V (Logic)
BU-65565X3
+5 V
0% Transmit/Monitor
75% Duty Transmitter Cycle
+3.3 V (Logic)
BU-65565X4
+5 V
0% Transmit/Monitor
75% Duty Transmitter Cycle
+3.3 V (Logic)
MIN TYP
MAX UNITS
PARAMETER
THERMAL
Operating Temperature
BU-65565MX
(measured at thermal interface)
BU-65565C/F/BX
(measured at component case)
Operating Junction Temperature
Storage Temperature
Thermal Resistance,
Junction to Thermal Interface
(BU-65565MX)
MIN TYP
MAX UNITS
-0.3
-0.3
4.6
6.0
V
V
-55
0
-55
-65
85
70
160
160
39
°C
°C
°C
°C
°C/W
3.0
4.75
3.3
5.0
3.6
5.25
V
V
100
430
80
200
860
120
300
1.29
160
400
1.72
200
mA
mA
mA
mA
A
mA
mA
A
mA
mA
A
mA
MECHANICAL DESIGN
Shock: Three pulses, half sine on six (6) axes
40g’s, 11 msec/axes
Vibration: Random input, one hour each axes, 14g’s rms
three hours total, 15 to 2000 Hz
Resonant Frequency: BU-65565M2 (calculated) 12 Hz
PHYSICAL CHARACTERISTICS
Size
Weight
BU-65565X1
BU-65565X2
BU-65565X3
BU-65565X4
5.87 X 2.91
149 X 74
2.7
3.3
3.9
4.5
(76.5)
(93.56)
(110.6)
(127.6)
in.
mm
oz. (g)
oz. (g)
oz. (g)
oz. (g)
Ordering Information
BU-65565 X X - X00X
(blank) = No Conformal Coating
N = Conformal Coating (See Note)
Temperature Range
3 = 0°C to +70°C (Convection cooling method only)
9 = -55°C to +85°C (Convection cooling method only)
Number of Channels
1 = 1 Dual Redundant
2 = 2 Dual Redundant
3 = 3 Dual Redundant
4 = 4 Dual Redundant
1553
1553
1553
1553
Channel
Channels
Channels
Channels
Cooling Method
F = Convection Cooled, Front Panel I/O
C = Convection Cooled, Rear Panel I/O
B = Convection Cooled, Front and Rear Panel I/O
M = Conduction Cooled Conformally Coated with “Humiseal 1A33,” Rear Panel I/O
Base Product
BU-65565 = MIL-STD-1553 PMC Card
Notes: 1. For BU-65565MX, conformal coating is standard and this digit should be blank. For BU-65565CX, BU-65565FX, or BU-65565BX, conformal
coating is optional and this digit can be either blank or “N”>.
2. These products contain tin-lead solder.
