CMD6NNP-391KB datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> inductor> CMD6NNP-391KB

Preview

CMD6NNP-391KB: DescriptionGeneral Purpose Inductor, 390uH, 10%, 1 Element, Ferrite-Core, SMD, 2424, ROHS COMPLIANT; CategoryPassive components inductor; File Size82KB，3 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance

Download Datasheet Parametric View All

CMD6NNP-391KB Overview

General Purpose Inductor, 390uH, 10%, 1 Element, Ferrite-Core, SMD, 2424, ROHS COMPLIANT

CMD6NNP-391KB Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUMIDA
package instruction	2424
Reach Compliance Code	unknown
ECCN code	EAR99
uppercase and lowercase codes	2424
structure	Unshielded
core material	Ferrite
DC Resistance	1.76 Ω
Nominal inductance(L)	390 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	CMD-6N
Number of functions	1
Number of terminals	7
Package height	6 mm
Package length	6 mm
Package form	SMT
Package width	6 mm
method of packing	Box
Minimum quality factor (at nominal inductance)	91
Maximum rated current	0.3 A
self resonant frequency	4.2 MHz
series	CMD-6N
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL IN-LINE
Terminal shape	GULL WING
Test frequency	0.1 MHz
Tolerance	10%

Preview

Download Datasheet

View All

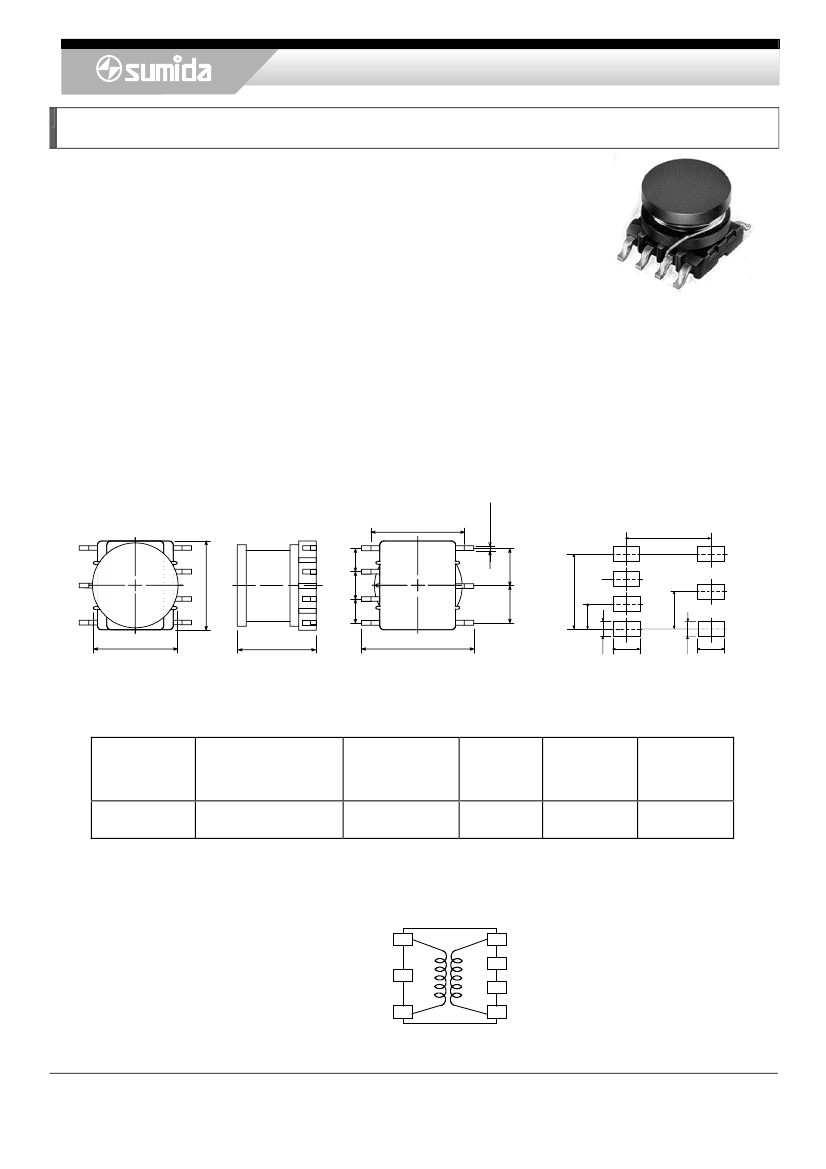

General Power Transformer <SMD Type: CMD Series>

Type: CMD-6N

◆

Product Description

・6.5×6.5mm

Max.(L×W), 6.0mm Max. Height.

・Inductance

Range: 22μH∼1.0mH

・Rated

current range: 150mA∼1300mA.

・7

Terminal pins’ type gives a flexible design as inductors or transformers.

・Custom

design is available.

◆

Feature

・Magnetically

unshielded construction.

・Ideally

used in portable devices such as Mobilephone,DSC/DVC,MP3,PDA, etc as DC-DC

Converter inductors or transformers, especially suitable for White LED drive.

・RoHS

Compliance

1.5 1.5 1.5 ±0.2

2.25 ±0.2

6.5±0.5

0.5±0.1

◆

Dimensions (mm)

◆

Land Pattern (mm)

7.35

6.0±0.5

4.5

2.25

1.5

6.0±0.5

6.0 Max.

8.2±0.5

1.0

2.0

◆

Specification (for transformers)

Inductance (1-3)

1kHz/1V

258µH±10%

Inductance (4-7)

1kHz/1V

238µH(Ref)

D.C.R.

(1-3)

2.5Ω Max.

D.C.R.

(4-7)

3.4Ω Max.

Rated

Current

(1-3)

240mA

Sample No.

6305-JPS-038

※

Rated current: The D.C. current at which the inductance decreases to 90% of it’s initial value or when

△t=40℃,

whichever is lower(Ta=20℃).

※

Schematics (Bottom)

“Ｓ”is

winding start.

3

2

S

1

4

S

5

6

7

Please refer to the sales offices on our website for a representative near you

www.sumida.com

1/3
