This document was generated on 06/07/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA
Part Number:
Status:
Overview:
Description:
5018643091
Active
ffc_fpc_smt
0.50mm (.020") Pitch FFC-to-Board Connector, Receptacle Housing Assy, Right Angle,
SMT, with Grounding terminals, 30 Circuits
Documents:
3D Model
Drawing (PDF)
Product Specification PS-501864-004 (PDF)
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Comments
Overview
Product Name
FFC/FPC Connectors
501864
with Grounding terminals
ffc_fpc_smt
N/A
Physical
Circuits (Loaded)
Color - Resin
Contact Position
Durability (mating cycles max)
Entry Angle
Mated Height (in)
Mated Height (mm)
Material - Metal
Material - Plating Mating
Material - Plating Termination
Number of Rows
Orientation
PCB Locator
PCB Retention
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Polarized to PCB
Stackable
Temperature Range - Operating
Termination Interface: Style
Wire/Cable Type
30
Black
Bottom
20
90° Angle
0.191 In
4.85 mm
Phosphor Bronze
Gold
Gold
1
Right Angle
Yes
Yes
Embossed Tape on Reel
0.020 In
0.50 mm
Yes
No
-40°C to +85°C
Surface Mount
FFC only
EU RoHS
ELV and
Complia
REACH S
Not Revie
Halogen
Status
Not Revi
Need mo
environm
Email pro
For a mu
Complian
Please vi
non-prod
Search
501864
Use W
501783
Plug Ja
Electrical
Current - Maximum per Contact
Voltage - Maximum
0.5A
50V AC (RMS)/DC
Material Info
Reference - Drawing Numbers

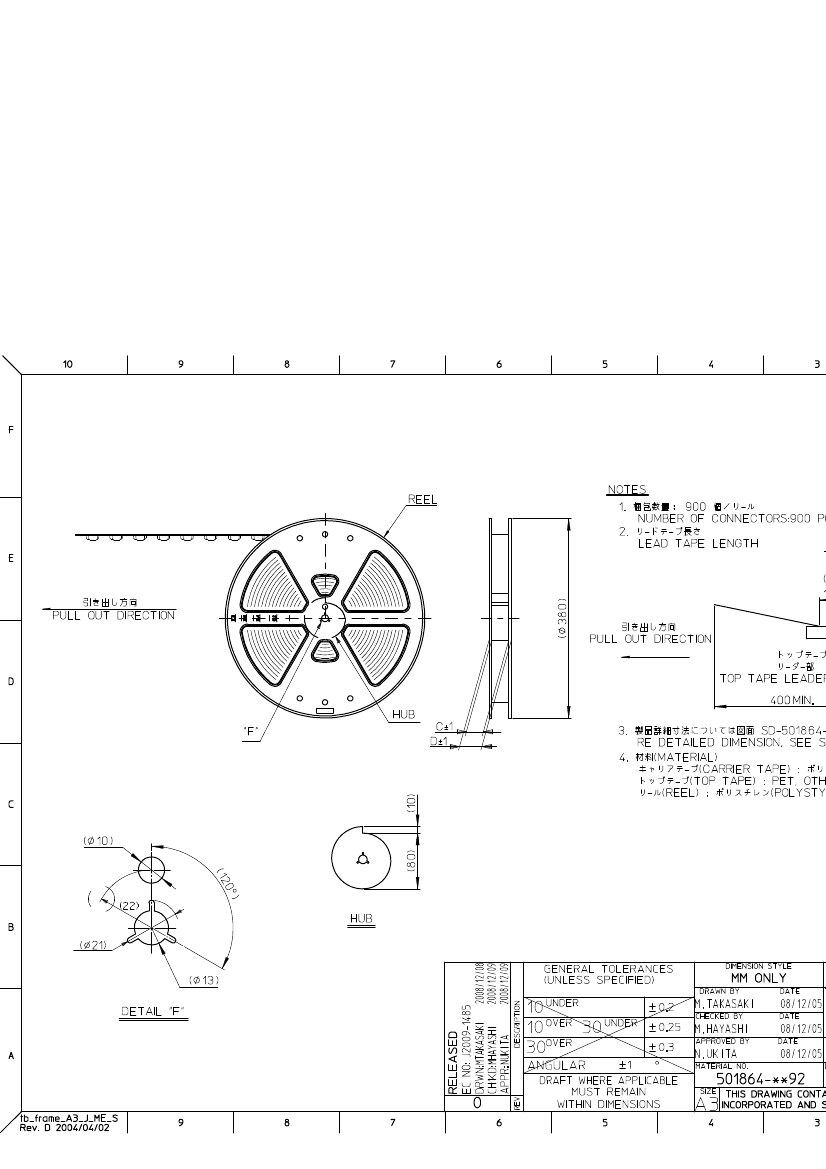

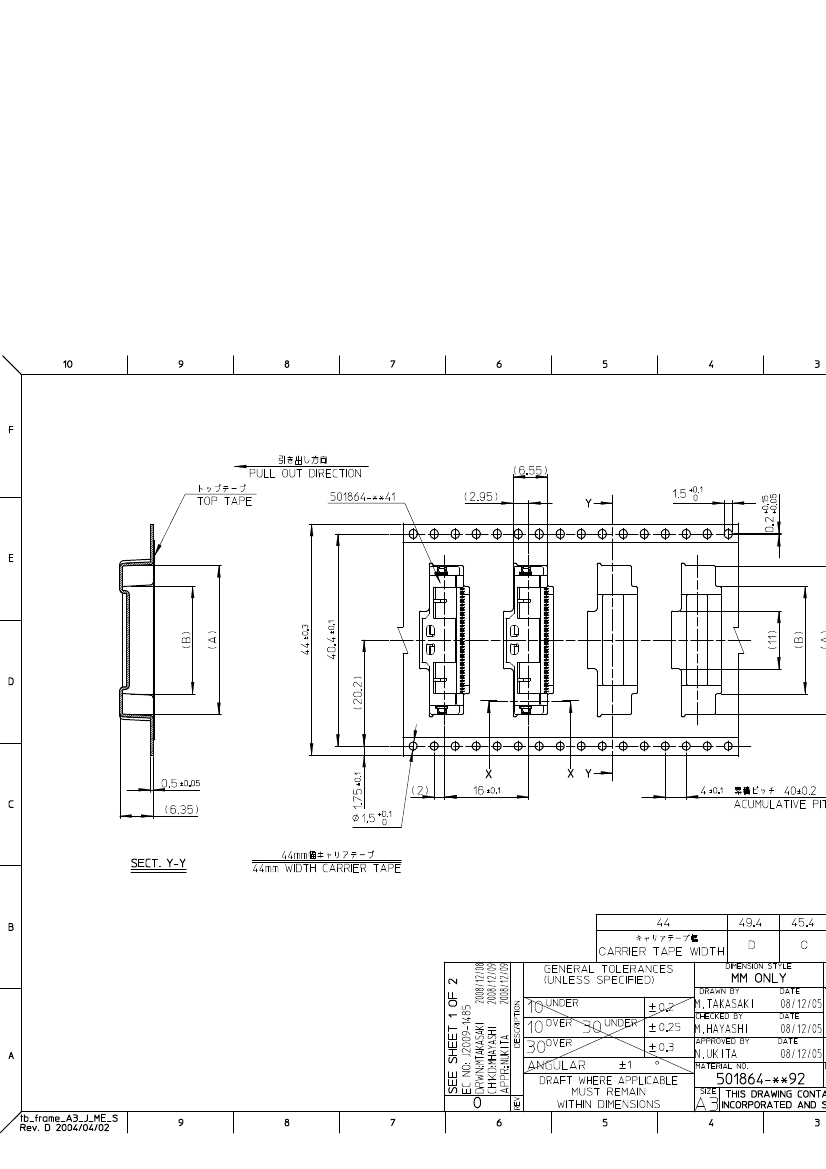

Packaging Specification
Product Specification

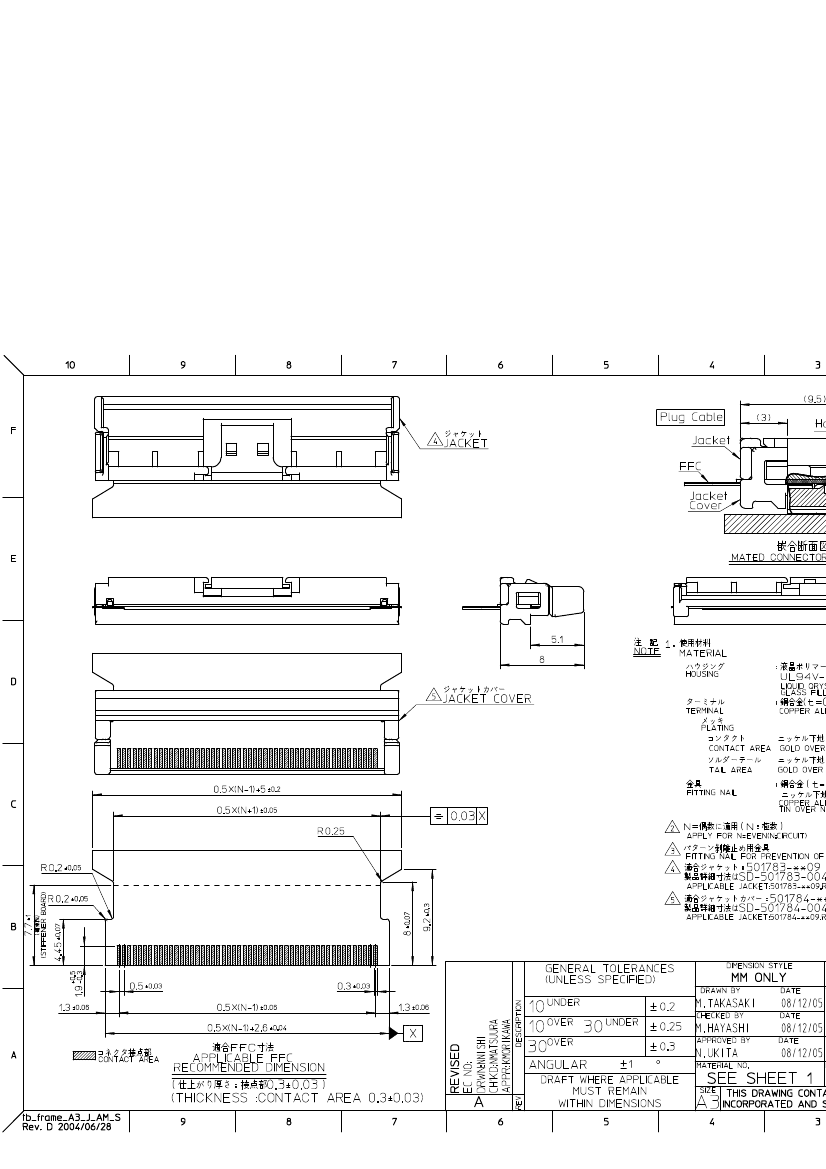

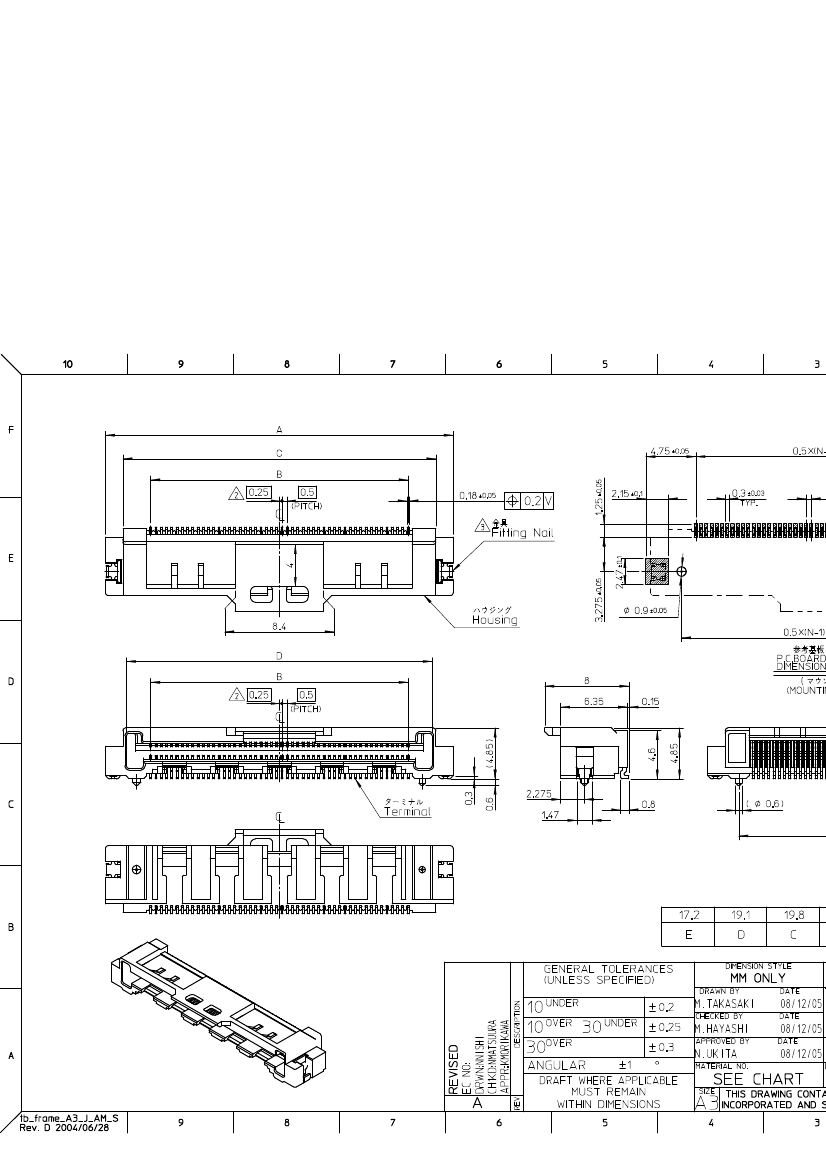

Sales Drawing
SPK-501864-001
PS-501864-004, RPS-501864-001, RPS-501864-004
SD-501864-008, SD-501864-009
