315-99-155-41-001000 datasheet, PDF

Datasheet> All Categories > The connector> socket> 315-99-155-41-001000

315-99-155-41-001000: DescriptionIC Socket, SIP55, 55 Contact(s),; CategoryThe connector socket; File Size143KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

315-99-155-41-001000 Overview

IC Socket, SIP55, 55 Contact(s),

315-99-155-41-001000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compli
ECCN code	EAR99
Other features	SIP SOCKET
Contact to complete cooperation	TIN LEAD (200)
Contact completed and terminated	Tin/Lead (Sn/Pb)
Contact material	NOT SPECIFIED
Device slot type	IC SOCKET
Type of equipment used	SIP55
Shell material	PLASTIC
JESD-609 code	e0
Number of contacts	55
Base Number Matches	1

Preview

Download Datasheet

View All

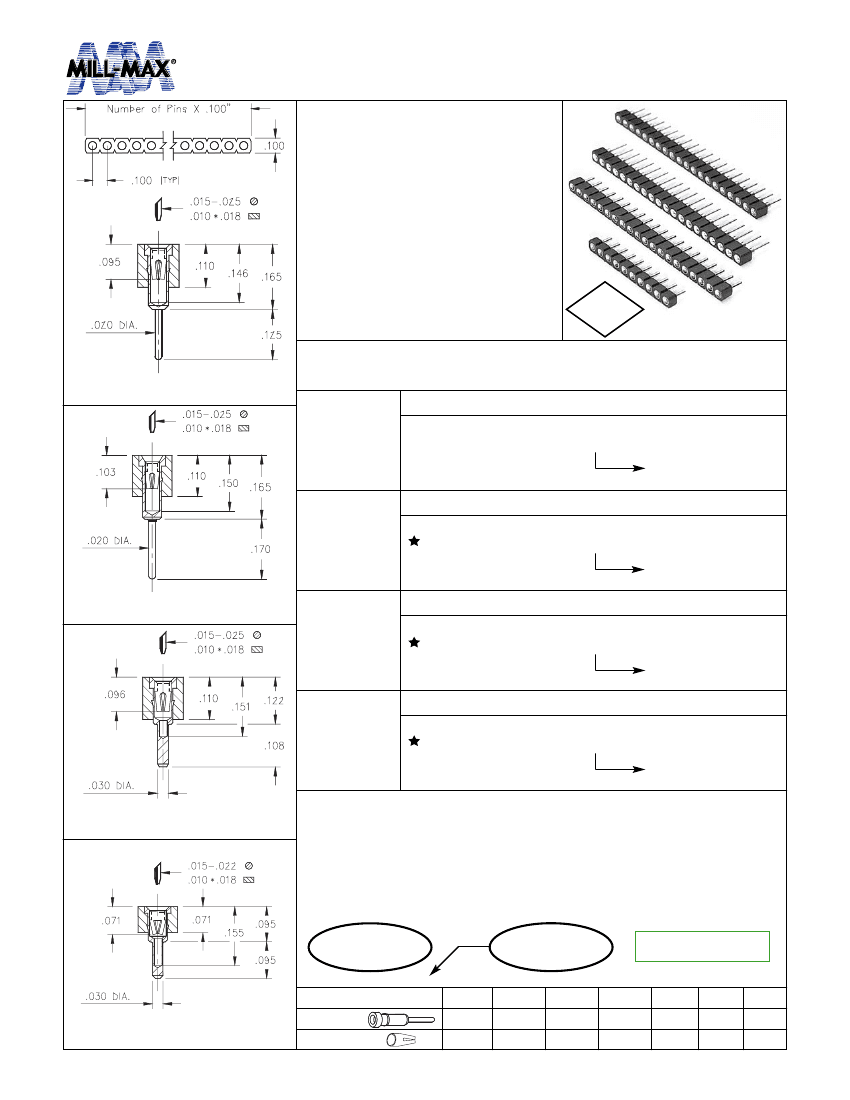

SINGLE-IN-LINE SOCKETS

.100” Grid Solder Tail

Single Row

•

SIP sockets accept .015 - .025”

diameter pins and standard IC leads.

•

Various solder tails available:

standard length, long for multi-layer

boards, very low and ultra low profile.

See Mill-Max #1001, 0134, 0501 or

1534 pins (See pages 132, 133, 136)

for details.

•

Hi-Rel, 4-finger BeCu #12 & #30 contacts

are rated at 3 amps. See pages 218 for

details.

•

Insulators are high temp. thermoplastic.

Series 310, 311, 315

2002/95/EC

RoHS

Ordering Information

Fig. 1

Series 310...001

Standard Solder Tail

Fig. 1

310-XX-1_ _-41-001000

Specify # of pins

Series 311...001

01-64

Long Solder Tail

Fig. 2

41 & 91 Platings

Non-Standard

311-XX-1_ _-41-001000

01-64

Very Low Profile

Specify # of pins

Fig. 2

Series 315...001

Fig. 3

41 & 91 Platings

Non-Standard

315-XX-1_ _-41-001000

01-64

Ultra Low Profile

Specify # of pins

Series 315...003

Fig. 4

41 & 91 Platings

Non-Standard

315-XX-1_ _-41-003000

01-64

Specify # of pins

Fig. 3

For Electrical,

Mechanical & Enviromental

Data, See pg. 4

XX=Plating Code

See Below

For RoHS compliance

select

plating code.

SPECIFY PLATING CODE XX=

10µ” Au

30µ” Au

10µ” Au

30µ” Au

Sleeve (Pin)

200µ” Sn/Pb 200µ” Sn/Pb 200µ”Sn/Pb 200µ”Sn

200µ”Sn/Pb 10µ” Au

200µ”Sn 200µ”Sn

30µ” Au 200µ”Sn

Fig. 4

Contact (Clip)

w w w. m i l l - m a x . c o m

516-922-6000
